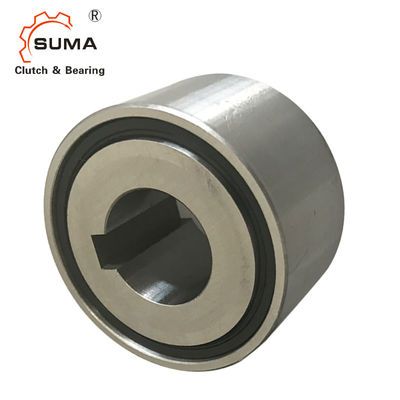

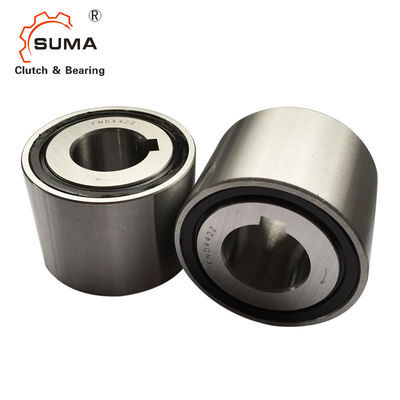

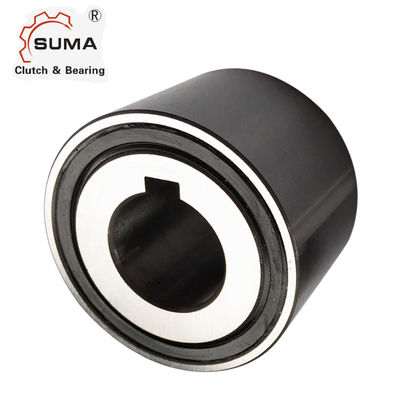

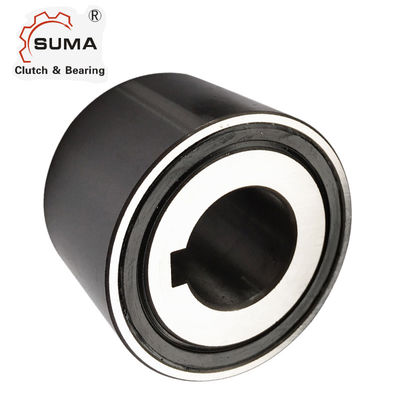

Name: FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FND463Z FND473Z
Price: 130.00 USD
Availability: InStock

Home Products Roller Clutch Bearing

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	FND463Z FND473Z

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD110-USD150 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	3-7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	Roller Clutch Bearing FND463Z FND473Z	Material:	GCr15 Bearing Steel
Torque Capacity:	462Nm	Rotation Speed:	1100RPM
Unit Weight:	0.6Kg	Warranty:	1 Year
Size:	356334mm	OEM:	Accept
Highlight:	FND463M Freewheel Clutch Bearing , 1100 RPM Freewheel Clutch Bearing , FND463Z Freewheel Clutch

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Features

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Technical Datas

Item	FND463Z
Material	ST14
Bore dia.	35 mm
Outer dia.	68 mm
Width (B)	34 mm
Torque capacity	462 N.m
Overrunning limiting speed (inner race)	1100 r/min
Weight	0.6 kg
Package	Carton box or as your requirements

Dimensions and Capacities

Designation	d	D	W	Tnom	nmax	Cdyn.	Cstat.	Weight	b	t	Item no.
Designation	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	[mm]	[mm]	Item no.
FND 437 M	15	41	34	176	1,700	8,962	8,661	0.24	5	2.3	300737
FND 437 Z	15	41	34	161	1,700	8,962	8,661	0.24	5	2.3	300738
FND 442 M	20	46	34	223	1,500	10,247	10,708	0.28	6	2.8	300743
FND 442 Z	20	46	34	208	1,500	10,247	10,708	0.28	6	2.8	300744
FND 453 M	25	58	34	343	1,200	11,417	13,577	0.46	8	3.3	300751
FND 453 Z	25	58	34	314	1,200	11,417	13,577	0.46	8	3.3	300752
FND 459 M	30	64	34	411	1,100	12,691	16,320	0.55	8	3.3	300758
FND 459 Z	30	64	34	381	1,100	12,691	16,320	0.55	8	3.3	300760
FND 463 M	35	68	34	462	1,100	13,070	17,063	0.6	10	3.3	306528
FND 463 Z	35	68	34	428	1,100	13,070	17,063	0.6	10	3.3	306529
FND 470 M	40	75	34	550	1,000	14,050	19,840	0.69	12	3.3	300765
FND 470 Z	40	75	34	509	1,000	14,050	19,840	0.69	12	3.3	300766
FND 473 M	45	78	34	588	1,000	14,128	19,896	0.73	14	3.8	306532
FND 473 Z	45	78	34	543	1,000	14,128	19,896	0.73	14	3.8	306533
