Name: CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: CSK17P CSK6203P
Price: 2.20 USD
Availability: InStock

Home Products Sprag Clutch Bearing

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 174012MM

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO
Model Number:	CSK17P CSK6203P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD2.2-USD2.9 PER PIECE
Packaging Details:	White Box + Carton Box + Wooden Pallet
Delivery Time:	3-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	20000PCS PER WEEK

Contact Now

Detailed Product Description

Material:	Gcr15 Bearing Steel	Torque Capacity:	85Nm
Rotation Speed:	5200 RPM	Drag Torque:	2Ncm
Unit Weight:	0.14KG	Package:	White Box + Carton Box
OEM:	Accept	Delivery Time:	5-7 Days
Highlight:	Electric Bicycle One Way Clutch Bearings , CSK17P One Way Clutch Bearings , Sprag Clutch Bearing 17X40X12MM

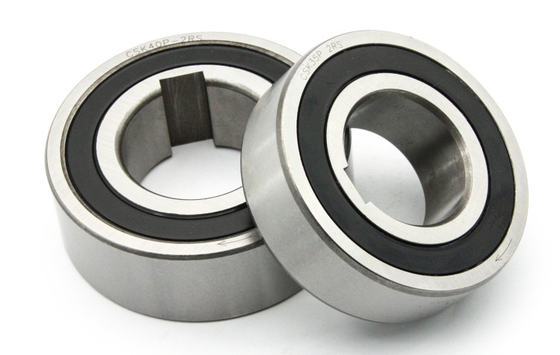

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM

Fearures

In addition to the basic CSK model, type CSK..P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

Dimensions and Capacities

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM 0

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
Type	Size	Bearing series							dynamic	static		Drag torque
CSK..P	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10
