Name: BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BSEU40-35
Price: 115.00 USD
Availability: InStock

Home Products Backstop Bearing

BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	BSEU40-35

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD100-USD130 PER PIECE
Packaging Details:	Carton Box / Wooden Box
Delivery Time:	7-10 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	Backstop Clutch	Material:	GCr15 Bearing Steel
Torque Capacity:	1440Nm	Rotation Speed:	450RPM
Unit Weight:	3.78Kg	Size:	3011855mm
Warranty:	1 Year	OEM:	Accept
Highlight:	BSEU 40-35 freewheel bearing replacement , BSEU 40-35 freewheel clutch bearing , 450 RPM freewheel bearing replacement

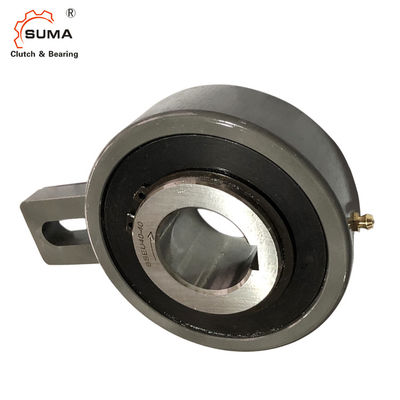

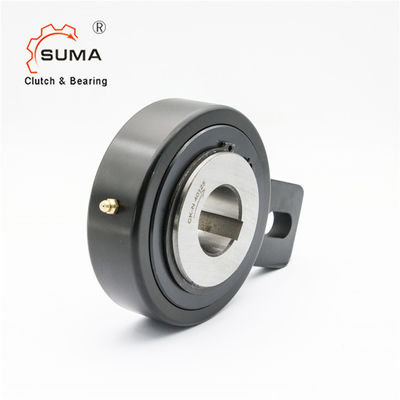

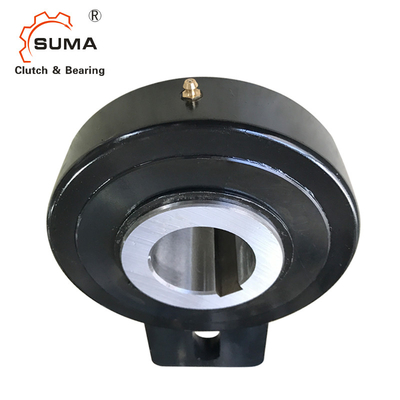

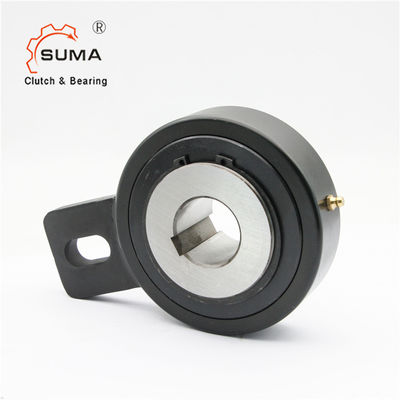

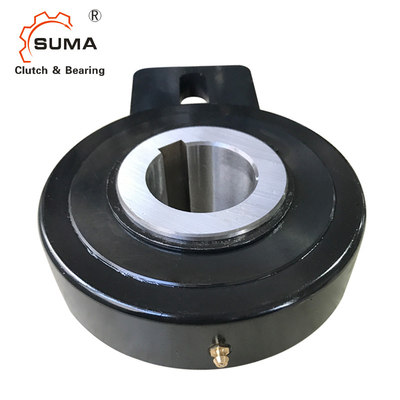

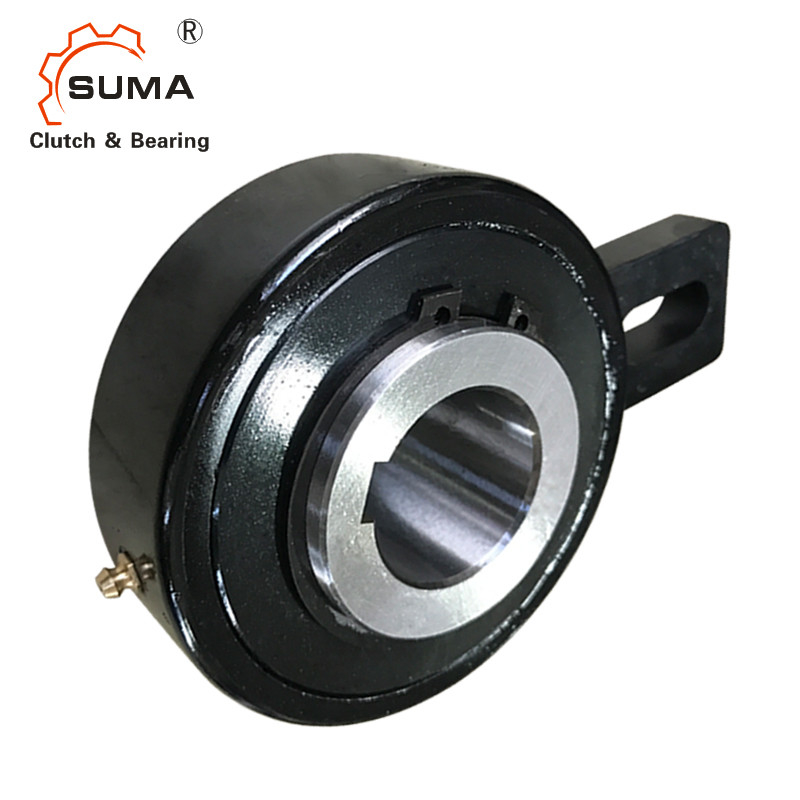

BSEU40-35 Backstop Clutch One Way Freewheel Bearing for Conveyor System

Features of BSEU backstop Clutch

BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.

Dimensions and Capacities of BSEU backstop Clutch

Item	BSEU40-35
Material	GCr15
Bore dia.	35 mm
Outer dia.	118 mm
Width	55 mm
Torque capacity	1440 N.m
Overrunning limiting speed	150 r/min
Weight	3.75 kg
Package	Carton box, wooden box or as your requirements

Model	Bore Size		Torque (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. MIN	W. Max
Model	Dia ( H7)	Keyway	Torque (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. MIN	W. Max
BSEU25-20	20	6×2.8	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU25-25	25	8×3.3	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU40-20	20	6×2.8	1,440	450	118	60	55	15	40	110	15	35	8	1.5	3.781	3.363
BSEU40-25	25	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-30	30	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-35	35	10×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40-40	40	12×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU70-45	45	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5	7.607	6.541
BSEU70-50	50	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5
BSEU70-55	55	16×4.3	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-60	60	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-65	65	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70-70	70	20×4.9	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU90-75	75	20×4.9	4,700	250	190	120	63	20	80	165	20	40	15	2	10.046	9.265
BSEU90-80	80	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90-85	85	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90-90	90	25×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
