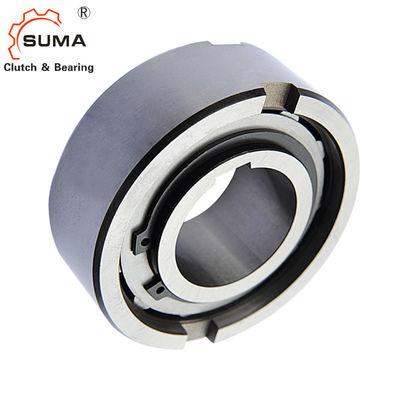

ASNU35 383 Nm Lubrication 358031MM Roller Clutch Bearing

Name: ASNU35 383 Nm Lubrication 35*80*31MM Roller Clutch Bearing
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: ASNU35 NFS35
Price: 175.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SUMA

Certification: ISO SGS

Model Number: ASNU35 NFS35

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD150-USD200 PER PIECE

Packaging Details: Carton Box

Delivery Time: 10-15 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability: 1000PCS Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    ASNU35 Roller Clutch Bearing, 383 Nm Roller Clutch Bearing, ASNU35 Ball And Roller Bearing


Product Name:	Roller Clutch Bearing ASNU35 NFS35	Material:	GCr15 Bearing Steel
Torque Capacity:	383Nm	Rotation Speed:	1900RPM
Unit Weight:	0.74Kg	Warranty:	1 Year
Size:	358031mm	OEM:	Accept

Product Name:	Roller Clutch Bearing ASNU35 NFS35
Material:	GCr15 Bearing Steel
Torque Capacity:	383Nm
Rotation Speed:	1900RPM
Unit Weight:	0.74Kg
Warranty:	1 Year
Size:	358031mm
OEM:	Accept

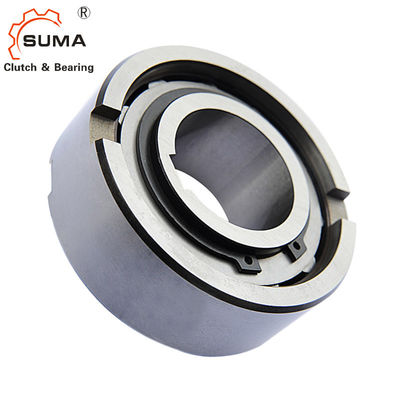

ASNU35 383 Nm Lubrication 35*80*31MM Roller Clutch Bearing

ASNU35 383 Nm Lubrication 35*80*31MM Roller Clutch Bearing

Features

Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63.. ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances,
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race.

Technical Datas

Product name	one way clutch bearing
Model	ASNU35
Material	Chrome steel GCr15
Inner diameter	35mm
Outer diameter	84mm
Torque capacity	383Nm
Weight	0.74kg
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	10-15 Days

Dimensions and Capacities

Type	Size	TKN1)	Overrunning Speeds										Weight	Drag torque
ASNU (NFS)	dH7	TKN1)	nimax2)	namax3)	Dn6	D5	L	b	t	s	e	f	Weight	TR
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[Ncm]
	8	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.07	1.6
	12	12	3300	5000	35	28	13	4	1.4	2.4	0.6	0.3	0.06	1.6
	15	30	2400	3600	42	37	18	5	1.8	2.4	0.8	0.3	0.11	1.9
	17	49	2300	3400	47	40	19	5	2.3	2.4	1.2	0.8	0.15	1.9
	20	78	2100	3100	52	42	21	6	2.3	2.4	1.2	0.8	0.19	1.9
	25	125	1700	2600	62	51	24	8	2.8	2.4	1.2	0.8	0.38	5.6
	30	255	1400	2200	72	60	27	10	2.5	2.4	1.8	1	0.54	14
	35	383	1200	1900	80	70	31	12	3.5	2.4	1.8	1	0.74	16
	40	538	1100	1700	90	78	33	12	4.1	2.5	1.8	1	0.92	38
	45	780	1000	1600	100	85	36	14	4.6	2.5	1.8	1	1.31	43
	50	1013	850	1350	110	92	40	14	5.6	2.5	1.8	1	1.74	55
	60	1825	750	1050	130	110	46	18	5.5	3.6	2.6	1.5	2.77	110
	70	2300	600	950	150	125	51	20	6.9	3.6	2.6	1.5	4.16	140
	80	3275	550	850	170	140	58	20	7.5	3.6	2.6	1.5	6.09	180
	90	5325	500	750	190	160	64	20	8	3.6	2.6	2	8.2	230
	100	7250	450	680	215	175	73	24	8.5	3.6	2.6	2	12.6	380
	120	13500	370	550	260	215	86	28	10	3.6	2.6	2.5	22	650
	150	26625	300	460	320	260	108	32	12	3.6	3.6	2.5	42	1000
	200	44500	230	350	420	350	138	45	16	7.6	3.6	3	93	2000

NOTES

ASNU8-12, ASNU200 keyway to DIN 6885. 1,

other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns

Mounting Example

Pictures

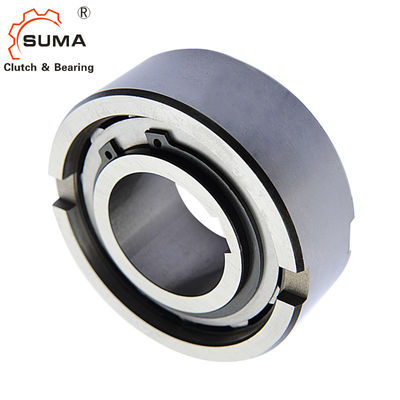

ASNU35 383 Nm Lubrication 35*80*31MM Roller Clutch Bearing
