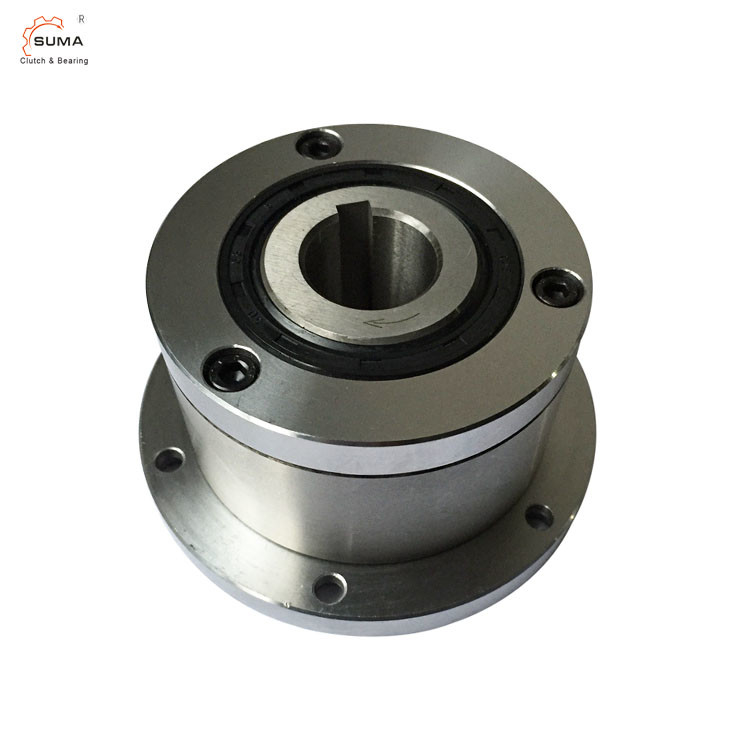

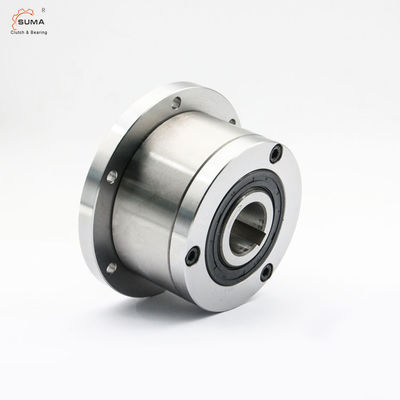

GLP...F7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7
Features
GL type freewheels have 160.. Series ball bearings that are used to center the inner race with the outer race. the torque forces are transmitted from the shaft to the inner race by means of the key and from the outer race to the external area by means of screws. shaft tolerances must be h6 or j6 and outer race key tolerances h7. either grease or oil lubrication must be applied to the freewheels before operation, following instructions given on page 12. Each freewheel is supplied with two paper gaskets that must be inserted between the outer race and the flanges. If they are not used, the freewheel could be badly damaged.
Dimensions and Capacities
| Model No. | dH7 | Dh6 | L | L2 | s | Dg | bH8 | t | Rotation Speed | Torque | Weight | |
| mm | mm | mm | mm | mm | mm | mm | mm | Inner race | Outer race | Nm | Kg | |
| GLP 12 F7-D7 | 12 | 62 | 42 | 20 | 10 | 70 | 4 | 2 | 4000 | 5600 | 55 | 1 |
| GLP 15 F7-D7 | 15 | 68 | 52 | 28 | 11 | 76 | 5 | 3 | 3700 | 5300 | 125 | 1.4 |
| GLP 20 F7-D7 | 20 | 75 | 57 | 34 | 10.5 | 84 | 6 | 3.5 | 2700 | 4600 | 181 | 1.9 |
| GLP 25 F7-D7 | 25 | 90 | 60 | 35 | 11.5 | 99 | 8 | 4 | 2200 | 3600 | 288 | 2.8 |
| GLP 30 F7-D7 | 30 | 100 | 68 | 43 | 11.5 | 109 | 8 | 4 | 1800 | 3300 | 500 | 3.7 |
| GLP 35 F7-D7 | 35 | 110 | 74 | 45 | 13.5 | 119 | 10 | 5 | 1500 | 3000 | 735 | 4.7 |
| GLP 40 F7-D7 | 40 | 125 | 86 | 53 | 15.5 | 135 | 12 | 5 | 1200 | 2600 | 1040 | 7.1 |
| GLP 45 F7-D7 | 45 | 130 | 86 | 53 | 15.5 | 140 | 14 | 5.5 | 1000 | 2400 | 1125 | 7.4 |
| GLP 50 F7-D7 | 50 | 150 | 94 | 64 | 14 | 160 | 14 | 5.5 | 850 | 2200 | 2125 | 10.4 |
| GLP 55 F7-D7 | 55 | 160 | 104 | 66 | 18 | 170 | 16 | 6 | 750 | 2000 | 2625 | 13.4 |
| GLP 60 F7-D7 | 60 | 170 | 114 | 78 | 17 | 182 | 18 | 7 | 650 | 1900 | 3500 | 15.9 |
| GLP 70 F7-D7 | 70 | 190 | 134 | 95 | 18.5 | 202 | 20 | 7.5 | 550 | 1700 | 5750 | 20.8 |
| GLP 80 F7-D7 | 80 | 210 | 144 | 100 | 21 | 222 | 22 | 9 | 500 | 1600 | 8500 | 27.1 |
| GLP 90 F7-D7 | 90 | 230 | 158 | 115 | 20.5 | 242 | 25 | 9 | 450 | 1500 | 14500 | 40 |
| GLP 100 F7-D7 | 100 | 270 | 182 | 120 | 30 | 282 | 28 | 10 | 350 | 1250 | 20000 | 67 |
| GLP 120 F7-D7 | 120 | 310 | 202 | 140 | 30 | 322 | 32 | 11 | 300 | 1100 | 25000 | 82 |
| GLP 130 F7-D7 | 130 | 310 | 212 | 152 | 29 | 322 | 32 | 11 | 250 | 1000 | 31250 | 94 |
| GLP 150 F7-D7 | 150 | 400 | 246 | 180 | 32 | 412 | 36 | 12 | 200 | 800 | 70000 | 187 |
