FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch
FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FB24
Product Details
Product Name:
Cam Clutch Bearing FB24
Bearing Supported:
YES
Material:
Bearing Steel GCr15
Size:
12*62*50mm
Torque Capacity:
45Nm
Warranty:
1 Year
Package:
Carton Box / Wooden Box
Weight:
0.9Kg
Delivery Time:
5-7 Days
High Light:

1 Directional Backstop Cam Clutch

,

FB 24 Backstop Cam Clutch

,

FB 24 Freewheel Clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD80-USD120 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
1000PCS Per Month
Product Description

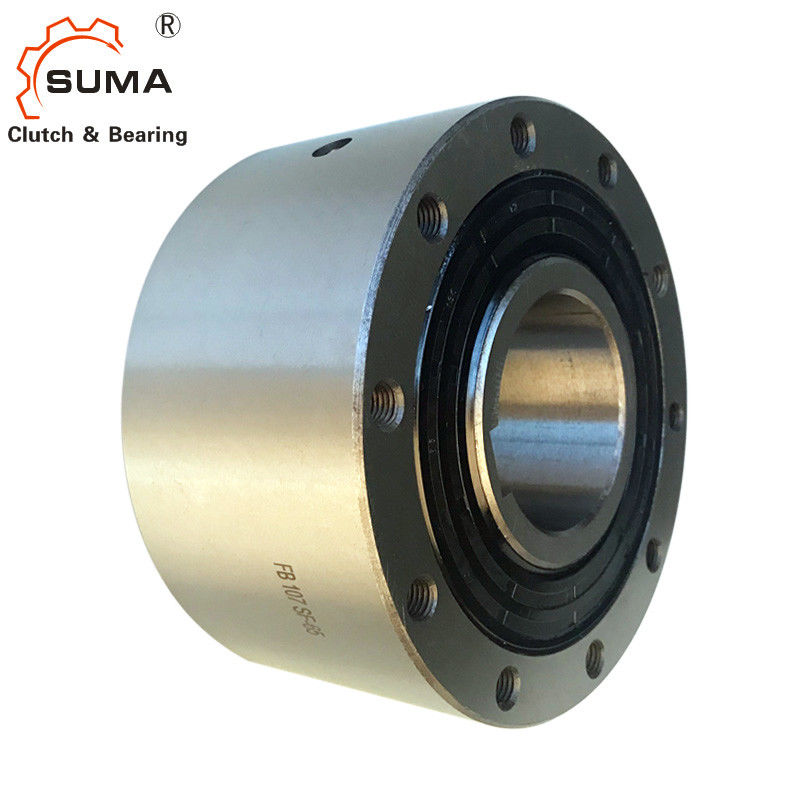

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch

Features

Complete Freewheels FB are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation.The freewheels FB are used as:

➧ Backstops

➧ Overrunning Clutches

➧ Indexing Freewheels

In addition to the standard type, four other types are available for extended service life and indexing accuracy.

Nominal torques up to 160 000 Nm.Bores up to 300 mm. Many standard bores are available.

Dimensions and Capacities

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch 0

Fre

ewh

eel Size

Ty

pe

Nom

inal tor

que
MN
Nm

M
Inner

ring freew

heels/
over

runs min-1

ax.

speed
Outer

ring freew

heels/
over

runs min-1

Ty

pe

Nom

inal tor

que
MN
Nm

Max. speed
Inner

ring freew

heels/
over

runs min-1

Outer

ring freew

heels/
over

runs min-1

Ty

pe

Nom

inal tor

que
MN
Nm

Sprag

lift-

off

at

inn

er ring spe

ed min-1

Max. speed
Inner

ring freew

heels/
over

runs min-1

Ou

ter ring dri

ves min-1

Ty

pe

Nom

inal tor

que
MN
Nm

Sprag

lift-off

at

outer

ring speed min-1

Max. speed
Outer

ring freew

heels/
over

runs min-1

Inner

ring driv

es min-1

Ty

pe

Nom

inal tor

que
MN
Nm

FB 24 CF 45 4 800 5 500 CFT 45 4 800 5 500                     CFP 19
FB 29 CF 80 3 500 4 000 CFT 80 3 500 4 000                     CFP 31
FB 37 SF 200 2 500 2 600 SFT 200 2 500 2 600           CZ 110 850 3 000 340 SFP 120
FB 44 SF 320 1 900 2 200 SFT 320 1 900 2 200 DX 130 860 1 900 344 CZ 180 800 2 600 320 SFP 180
FB 57 SF 630 1 400 1 750 SFT 630 1 400 1 750 DX 460 750 1 400 300 LZ 430 1 400 2 100 560 SFP 310
FB72 SF 1 250 1 120 1 600 SFT 1 250 1 120 1 600 DX 720 700 1 150 280 LZ 760 1 220 1 800 488 SFP 630
FB82 SF 1 800 1 025 1 450 SFT 1 800 1 025 1 450 DX 1 000 670 1 050 268 SFZ 1 700 1 450 1 600 580 SFP 750
FB 107 SF 2 500 880 1 250 SFT 2 500 880 1 250 DX 1 500 610 900 244 SFZ 2 500 1 300 1 350 520 SFP 1 250
FB 127 SF 5 000 800 1 150 SFT 5 000 800 1 150 SX 3 400 380 800 152 SFZ 5 000 1 200 1 200 480 SFP 3 100
FB 140 SF 10 000 750 1 100 SFT 10 000 750 1 100 SX 7 500 320 750 128 SFZ 10 000 950 1 150 380 SFP 6 300
FB 200 SF 20 000 630 900 SFT 20 000 630 900 SX 23 000 240 630 96 SFZ 20 000 680 900 272 SFP 12 500
FB 270 SF 40 000 510 750 SFT 40 000 510 750 UX 40 000 210 510 84 SFZ 37 500 600 750 240 SFP 25 000
FB 340 SF 80 000 460 630 SFT 80 000 460 630
FB 440 SF 160 000 400 550 SFT 160 000 400 550

The maximum transmissible torque is 2 times the specified nominal torque. See page 14 for determination of selection torque.

Freewheel Size mm mm Bore
Standard mm
red
mm
mm max. mm D mm F
mm
G** H mm   L
mm
T
mm
Z**

Weight

kg

FB24 12 14*       14* 62 1,0 M 5   8 50 51   3 0,9
FB 29 15 17*       17* 68 1,0 M 5   8 52 56   3 1,1
FB37 14 16 18 20 22* 22* 75 0,5 M 6   10 48 65   4 1,3
FB44 20 22 25*     25* 90 0,5 M 6   10 50 75   6 1,9
FB57 25 28 30 32*   32* 100 0,5 M 8   12 65 88   6 2,8
FB72 35 38 40 42*   42* 125 1,0 M 8   12 74 108   12 5,0
FB82 35 40 45 50*   50* 135 2,0 M 10   16 75 115   12 5,8
FB107 50 55 60 65*   65* 170 2,5 M 10   16 90 150   10 11,0
FB127 50 60 70 75*   75* 200 3,0 M 12   18 112 180   12 19,0
FB140 65 75 80 90   95* 250 5,0 M 16   25 150 225   12 42,0
FB200 110 120       120 300 5,0 M 16   25 160 270   16 62,0
FB270 140         150 400 6,0 M 20   30 212 360   18 150,0
FB340 180         240 500 7,5 M 20   35 265 450   24 275,0
FB440 220         300 630 7,5 M 30   40 315 560   24 510,0

Keyway according to DIN 6885, page 1 • Tolerance of keyway width JS10.

* Keyway according to DIN 6885, page 3 • Tolerance of keyway width JS10.

** Z = Number of tapped holes G on pitch circle T.

Mounting and Coupling

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch 1

Mounting

The customer attachment part is on the exter-nal diameter D and then bolted on to the face.The tolerance of the shaft must be ISO h6 or j6 and the tolerance of the pilot diameter D of the attachment part must be ISO H7 or J7.

Example for ordering

Freewheel size FB 72, type with sprag lift-off Z and 38 mm bore: • FB 72 LZ, d = 38 mm

When ordering freewheel size FB 340 and FB440, please also specify the freewheeling direction of the inner ring when viewed in direction X: • counterclockwise free or • clockwise free

Pictures

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch 2

FB 24 1 Directional Indexing 50MM Sprag Backstop Cam Clutch 3
