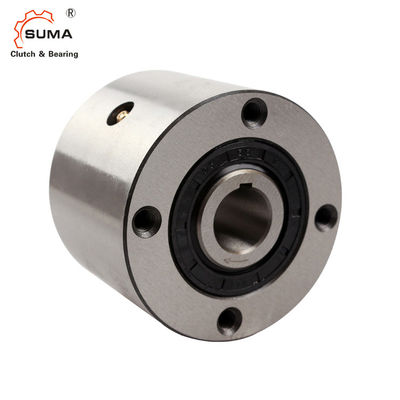

MX22 One Way Sprag Freewheel Cam Clutch Bearing
  • MX22 One Way Sprag Freewheel Cam Clutch Bearing
  • MX22 One Way Sprag Freewheel Cam Clutch Bearing
  • MX22 One Way Sprag Freewheel Cam Clutch Bearing
  • MX22 One Way Sprag Freewheel Cam Clutch Bearing

MX22 One Way Sprag Freewheel Cam Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number MX22
Product Details
Product Name:
Cam Clutch Bearing MX22
Bearing Supported:
YES
Material:
Bearing Steel GCr15
Size:
22*95*80mm
Torque Capacity:
78.4Nm
Warranty:
1 Year
Package:
Carton Box / Wooden Box
Rotation Speed:
1200RPM
High Light:

MX22 Cam Clutch Bearing

,

1200RPM Cam Clutch Bearing

,

MX22l Clutch Cam

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD100-USD180 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Product Description

MX22 Press Fit 80MM Freewheel 1200RPM Cam Clutch Bearing



 When mounting the clutch on a shaft, apply pressure to the clutch inner race end, but never to the outer race.
 Proper selection of the Cam Clutch provides accurate indexing performance. A braking device and a backstopping device may also be required for more accurate performance.

 The tolerance of the hub bore should be H6 or H7.

Dimensions and Capacities

MX22 One Way Sprag Freewheel Cam Clutch Bearing 0



Model Torque
Capacity

Max.

Indexing

Bore Size A B
(h7)
C PCD
D
E F S

Lubrication
Filler PlugSize×

Pitch

Inertia
Inner
Race
Drag
Torque
Oil Weight
Dia. Keyway
(N·m) (cycle/min) (kg·m2) (N·m) (ml) (kg)
MX22 78.4 1200 22 6 × 2.8 80 95 77 80 12 35 16 M6XP1.0 0.00015 0.47 80 3.3
MX35 235 1200 35 10 ×33 90 125 87 110 12 50 16 M6XP1.0 0.000625 1.36 110 6.4
MX50 441 1200 50 14 × 3.8 100 155 97 140 14 70 16 M8XP1.25 0.00275 2.68 190 10.6
MX70 784 1200 70 20 ×4.9 127 200 124 180 15 100 20 M8XP1.25 0.013 5.15 340 21.3

Mounting and Coupling

MX22 One Way Sprag Freewheel Cam Clutch Bearing 1

Installation and Usage
1. For installation, insert the clutch into the hub bore of a pulley, a gear, or a torque arm and screw the bolts (high tension) into the tapped holes in the end face of the clutch. See illustration on the right.
2. A press fit is required for MX Series clutches for indexing applications, but do not exceed 0.025 mm when press fitting.
3. Adjust the side of the key to fit the keyway tightly, but allow a clearance between the top of key and keyway.



Pictures

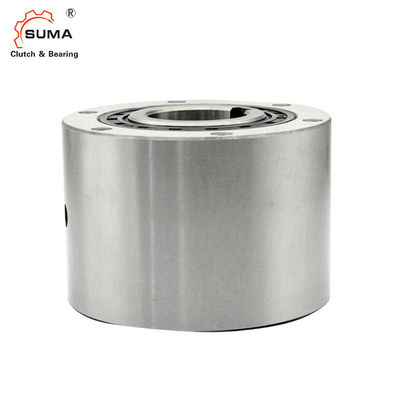

MX22 One Way Sprag Freewheel Cam Clutch Bearing 2

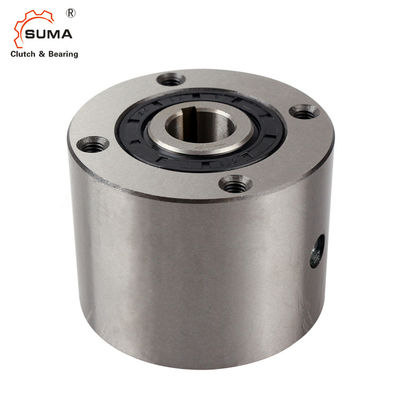

MX22 One Way Sprag Freewheel Cam Clutch Bearing 3

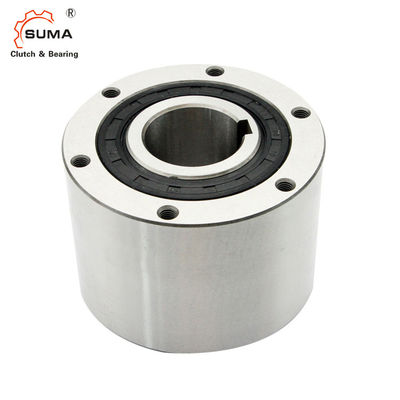

MX22 One Way Sprag Freewheel Cam Clutch Bearing 4
