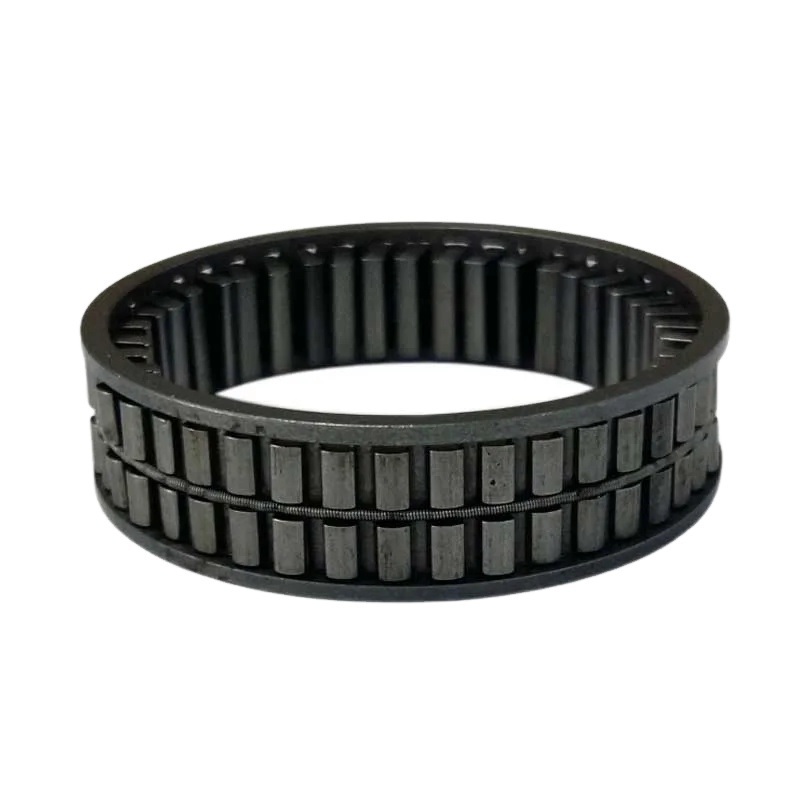

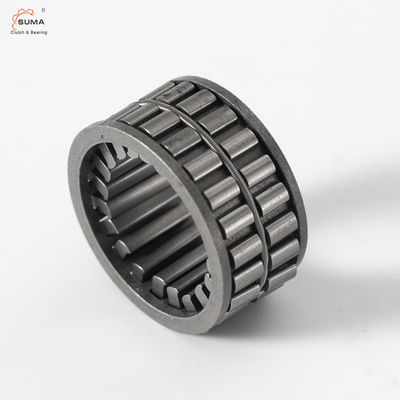

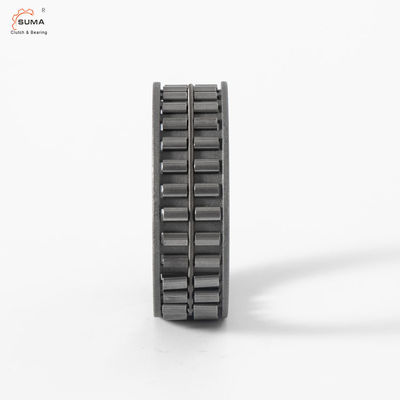

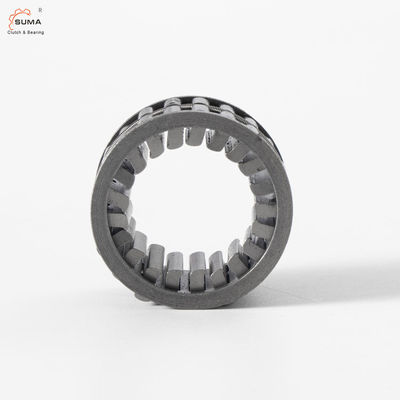

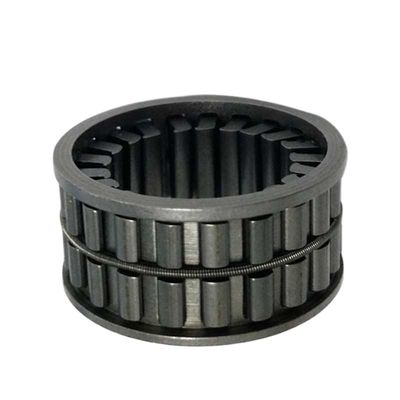

Name: FE 443 Z2 Sprag Type One Way Clutch Bearing with 44 N.m Torque and 5300 RPM
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FE416Z2
Price: 4.50 USD
Availability: InStock

Home Products One Way Clutch Bearing

FE 443 Z2 Sprag Type One Way Clutch Bearing with 44 N.m Torque and 5300 RPM

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	SUMA
Model Number:	FE416Z2

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$4.50-5

Contact Now

Detailed Product Description

Precision Rating:	P0	Seals Type:	OPEN
Clutch Type:	SPRAG, Freewheel Clutch	Material:	Chrome Steel
Torque:	44 N.m	Idling Speed:	5300 Rpm
Bore Diameter:	12mm	Outer Diameter:	22mm
Max Torque:	217 N.m	Max Idling Speed:	2700 Rpm
Lubrication Requirement:	Rust Protected, Not Lubricated	Indexing Frequency:	Varies
Environment Suitability:	High Quality Support Required	Drag Reduction:	Good Lubrication Decreases Drag
Part Number:	FE 443 Z2
Highlight:	FE 443 Z2 One Way Clutch Bearing , 44 N.m Torque Sprag Type Clutch , 5300 RPM Freewheel Clutch

FE 443 Z2 Backstop Overrunning Clutch Sprag Type One Way Clutch Bearings

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

Applications

Indexing elements: Change from oscillating to intermittent rotary motion
Backstops: Prevent self reversing due to load condition when the machine is not activated
Overrunning clutches: Maintain driven unit activated during slowdown or in two-speed operation

Lubrication

Proper lubrication is essential for maximum freewheel clutch life and reduced drag. Refer to our Lubrication Selection Table for proper selection.

Note: Clutches (except sealed models FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust protected but not lubricated.

Technical Specifications

Dimensions [mm]	FE 400	FE 400 Z	FE 400 Z2	Idling speed Clutch
dL \| DL	Part Number \| Torque M [N.m]	Part Number \| Torque M [N.m]	Part Number \| Torque M [N.m]	nmax [RPM]
2 \| 10			FE 410 Z2 \| 0.3	10,000
80 \| 88	FE 488 \| 914	FE 488 Z \| 788		1,300

Product Notes

We offer a wide range of freewheel-clutches with varying design features and dimensions to meet requirements such as torque, indexing frequency, idling speed, and environment.

For optimal operation, supporting equipment must be built accurately and of high quality. We offer support units or complete assemblies of freewheel clutches.

Product Images

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage sample requests for quality verification.

Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
