One Way Clutch Bearing
Created with Pixso. Backstop Clutch One Way Clutch Bearing with Torque Capacity 1025Nm Overrunning Speed 3100min-1 and Precision Rating P0
Backstop Clutch One Way Clutch Bearing with Torque Capacity 1025Nm Overrunning Speed 3100min-1 and Precision Rating P0
  • name

Backstop Clutch One Way Clutch Bearing with Torque Capacity 1025Nm Overrunning Speed 3100min-1 and Precision Rating P0

Brand Name: SUMA
Model Number: GFR80F3F4 GFR80F2F3 GL80F5D2
MOQ: 2
Price: $520-550
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Precision Rating:
P0
Seals Type:
Sealed
Torque Capacity:
55-70000 Nm
Overrunning Speed:
200-3100 Min-1
Weight Range:
1.4-214 Kg
Material:
GCr15
Inner Diameter:
12-150 Mm
Outer Diameter:
62-400 Mm
Bearing Support:
160 Series
Lubrication Requirement:
Oil Lubricated
Keyway Standard:
DIN 6885.1
Cover Types:
F2F3/F3F4
Max Torque:
70000 Nm
Max Speed:
3100 Min-1
Dimensions Range:
D: 62-400mm, D2: 20-200mm, C: 10-68mm
Highlight:

Torque Capacity 1025Nm Backstop Clutch

,

Overrunning Speed 3100min-1 One Way Clutch Bearing

,

Precision Rating P0 Freewheel Bearing

Product Description
GFR80F3F4 GFR80F2F3 GFR 80 F3F4 Overrunning Backstop Clutch One Way Freewheel Bearings
Product Overview

The GFR series backstop clutch bearings are roller-type freewheels designed for industrial applications. These self-contained, sealed units feature bearing support and utilize two 160 series bearings.

Key Features
  • Model: GFR...F2F3/GFRN...F3F4
  • Material: GCr15 bearing steel
  • Inner diameter range: 12-150mm
  • Outer diameter range: 62-400mm
  • Torque capacity: 1025Nm
  • Weight range: 1.4-214kg
  • Packaging options: Carton Box / Wooden box
Technical Specifications
Type Size (mm) Torque (Nm) Overrunning Speed (min-1) Dimensions (mm) Weight (kg)
GFR...F2F3/GFR...F3F4 12 55 3100 62×20×10 1.4
GFR...F2F3/GFR...F3F4 15 125 2800 68×25×10 1.8
GFR...F2F3/GFR...F3F4 150 70000 200 400×200×68 214
Installation & Operation Notes
  • Units must be oil lubricated before use if delivered disassembled
  • F3 cover acts as torque arm with integrated stop bolt
  • F2 and F4 covers include screws for oil filling, drain and level
  • F4 cover requires shaft end plate sealing to prevent oil leakage
  • Rotation direction can be selected on site
Technical Notes

1) T max = 2 × T KN

2) Inner race overruns

3) Outer race overruns

Keyway to DIN 6885.1 standard

Product Images

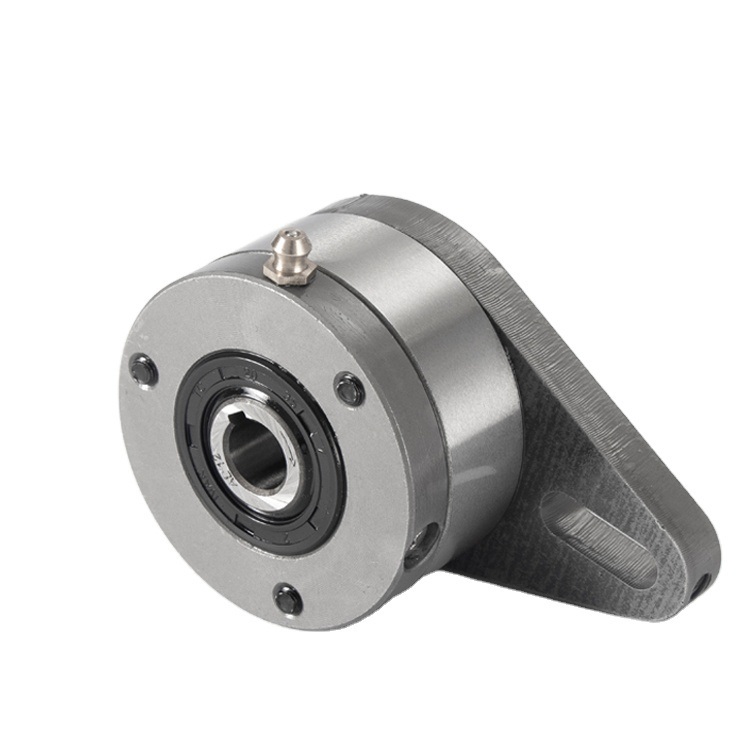

GFR80F3F4 Backstop Clutch Bearing - Front View GFR80F3F4 Backstop Clutch Bearing - Side View GFR80F3F4 Backstop Clutch Bearing - Technical Diagram GFR80F3F4 Backstop Clutch Bearing - Installation View GFR80F3F4 Backstop Clutch Bearing - Package View
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?
We highly encourage requesting samples for quality verification.
Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
