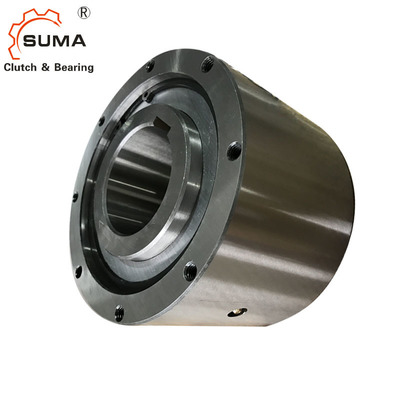

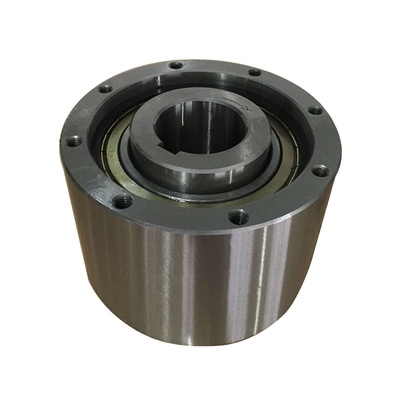

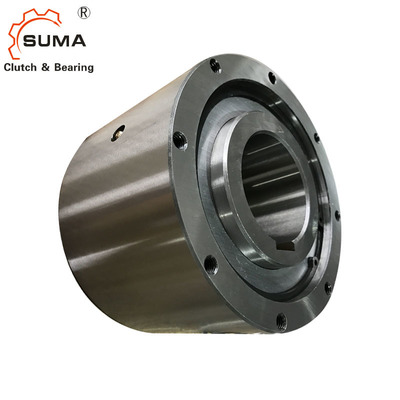

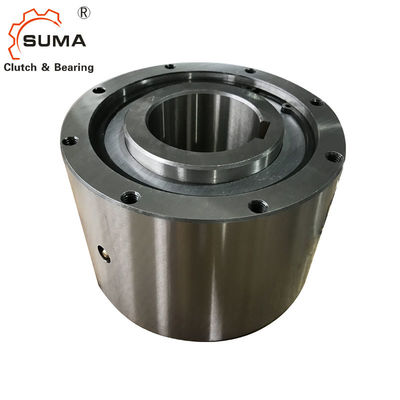

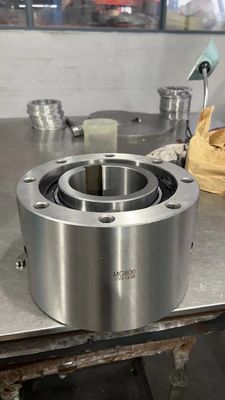

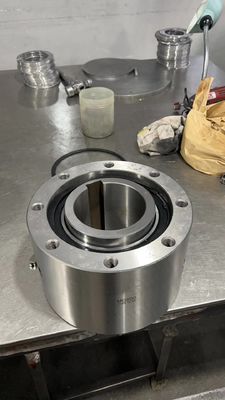

CAM Clutch Bearing MI500 MG500 31.5mm Bore Sealed P0 Precision

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Suma
Model Number:	MI500 MG500

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$100

Contact Now

Detailed Product Description

Precision Rating:	P0	Seals Type:	Sealed
Type:	CAM	Bore Dia.:	31.5mm
Keyway:	7mm X3mm	Weight:	5.0kg
Shaft Tolerance:	H6 Or H7 (JIS Standard)	Key Standard:	JIS B1301-1959
Max Temperature:	70°C	Lubrication:	Oil Not Sealed (supply Before Use)
Mounting Direction:	Vertical (consult For Specifics)	Thrust Load:	Not Supported (use Other Devices)
Key Type:	Parallel Key Only	Pressure Ventilation:	Required For MG Series
Overrunning Speed:	Specify For MG750 And Above
Highlight:	CAM Clutch Bearing 31.5mm bore , Sealed P0 precision clutch bearing , One way clutch bearing with warranty

Cam Clutch MI500 MG500 One Way Clutch Bearing

Product Features

MG Series Cam Clutch is designed for inner race overrunning applications
MI Series Cam Clutch is optimized for indexing applications
Easy attachment to pulleys, gears, or sprockets using high-tension bolts
Compatible with JIS standard H6 or H7 tolerance bores
Includes pressure ventilation hole for MG Series models

Installation Guidelines

Use only parallel keys (tapered keys are prohibited)
For shock loads or full torque capacity, use hardened key and shaft
Apply mounting pressure only to the inner race, never the outer race
Thrust load must be handled by separate devices, not the clutch
For MG Series models MG750 and above, specify overrunning speed when ordering
Consult manufacturer for vertical mounting applications

Operating Conditions

Monitor temperature - longevity decreases above 70°C outer race temperature
For continuous overrunning at medium/high speeds, consider oil bath or forced lubrication
No oil is sealed during shipment - add appropriate lubrication before use

Model Specifications
