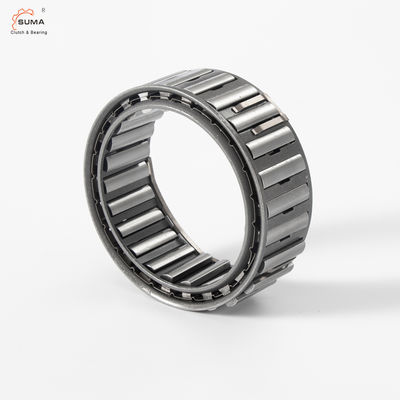

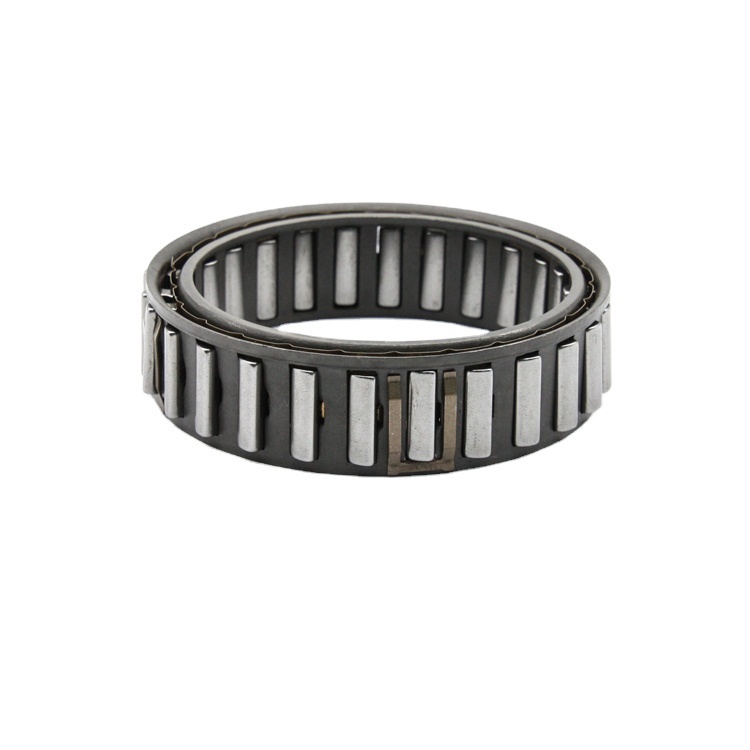

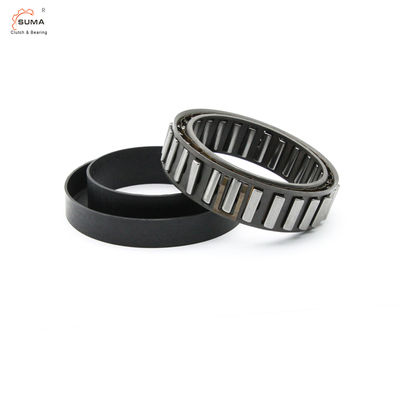

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque

  • DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque
  • DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque
  • DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque
Product Details:
Place of Origin: China
Brand Name: SUMA
Model Number: DC2222C
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $6.20-7
Contact Now
Detailed Product Description
Outer Diameter: 38.885mm Bore Size: 22.225mm
Norminal Torque: 63Nm Weight: 0.03kg
Sprags Quantity: 12 Overrunning Speed (outer): 750rpm
Overrunning Speed (inner): 1500rpm Thickness: 10mm
Sprag Material: Gcr15 Precision Rating: P0
Seals Type: OPEN Type: SPRAG
Surface Hardness: HRC 60-62 Core Hardness: HRC35-45
Maximum Taper: 0.007mm Per 25mm
Highlight:

22.225mm bore sprag clutch bearing

,

63Nm torque one way clutch bearing

,

DC2222C sprag clutch bearing

DC2222C 22.225*38.885*25.4mm Freewheel Overrunning Clutch Sprag One Way Bearings

The DC2222C is a high-performance sprag type freewheel overrunning clutch bearing designed for industrial applications requiring reliable one-way rotation control.

DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 0
Technical Specifications
Item DC2222G-N
Outer Diameter 38.885mm
Bore Size 22.225mm
Nominal Torque 63
Weight 0.03kg
Sprags Quantity 12
Overrunning Speed (outer race) 750
Overrunning Speed (inner race) 1500
Port Shanghai; Ningbo
Delivery Time 1-2 Days
Product Features
  • Sprag type freewheel cage design without inner or outer races
  • Requires installation in a design providing races, bearing support for axial and radial loads
  • Compatible with all standard lubricants used in power transmission equipment
Tolerance Specifications

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.

Hardness Requirements

Surface hardness: HRC 60 to 62 (minimum 0.6mm depth)

Core hardness: HRC 35 to 45

Surface roughness: ≤ 22CLA

Maximum taper between races: 0.007mm for 25mm width

Available Sizes
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 1
Type Drag Torque (NM) Size (mm) Number of Clips
DC2222G 50 22.225
DC2776 95 27.762
DC3034 99 30.34
DC3175(3C) 127 31.75 3
DC3809A 220 38.092
DC4127(3C) 179 41.275 3
DC4445A 290 44.45
DC4972(4C) 245 49.721 4
DC5476A 420 54.765
Product Images
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 2 DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 3 DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 4
Packaging & Shipping
DC2222C Sprag Clutch Bearing 22.225mm Bore 63Nm Torque 5

Standard Packaging: Each unit in white box + 19*18*9cm box + 29*28*19CM carton box

Bulk Packaging: For orders over 100kg - Carton box + Wooden Box/Wooden Pallet

Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

Samples are available for quality verification and testing purposes.

Can you promise to deliver the goods in time?

Small items: In stock, ready for immediate shipment

Medium Items: 10-15 Days production time

Big items: 20-25 Days production time
