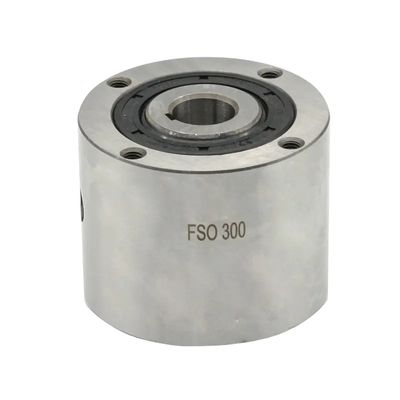

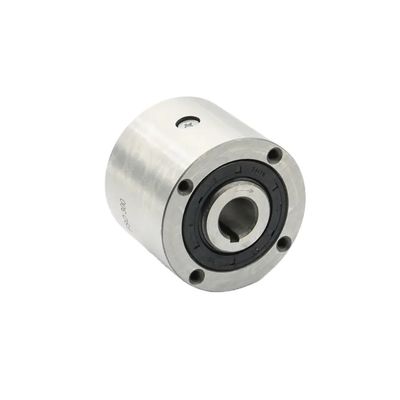

FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque

Brand Name:	SUMA OR OEM
Model Number:	FS/HPI Series
MOQ:	2
Price:	$129-229

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Precision Rating:

Type:

SPRAG, Roller Type

Material:

GCr15

Width:

63.5-127mm

Weight:

1.6-19kg

Torque:

450-3000Nm

Inner Diameter:

15-70mm

Outer Diameter:

76.2-180.975mm

Lubricant:

MoS2 Powder Lubricant

Dynamic Load:

245KN

Static Load:

1220KN

Overrunning Speeds:

3000/900 Min-1

Drag Torque:

18-156 Ncm

Seal Type:

Lip Seals, Labyrinth Seals

Bearing Support:

Two Ball Bearings

Highlight:

HPI sprag freewheel clutch bearing

high torque one way clutch bearing

FS600 FS700 FS800 clutch bearing

Product Description

FS600 FS700 FS800 HPI Sprag Type Freewheel Clutch One Way Bearing

The FS600, FS700, and FS800 HPI series are high-performance sprag type freewheel clutch bearings designed for one-directional operation in industrial machinery applications.

Product Specifications

Model:

HPI / FS / FSO

Material:

GCr15

Type:

Sprag

Inner Diameter:

15-70mm

Outer Diameter:

76.2-180.975mm

Weight:

1.6-19kg

Lubricant:

MoS2 powder lubricant

Load Ratings:

Dynamic: 245KN | Static: 1220KN

Application:

Industrial Machines

Key Features

Sprag type freewheels are self-contained, sealed and bearing supported
Utilizes two ball bearings for enhanced durability
Available with oil or grease lubrication depending on type
Full sprag complement provides high torque capacity for given diameter
Overload protection through sprag-to-sprag abutment prevents sprag tilt
HPI models are oil lubricated with standard shaft lip seals
FSOGR models are grease lubricated with optional labyrinth seals
HPI series specially designed for high-speed indexing applications

Technical Specifications Table

Type	Size	Overrunning speeds	Drag Torque [Nm]	nmax [min-1]	dH7-bxh [mm]	d4 [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	K [mm]	f [mm]
HPI/FS 300	379	3000/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	13	0.8	1.6	18
HPI/FS 400	407	2800/850	18-6x6	12...22	69.9	88.9	68.07	1.6	30	73	13	0.8	2.7	27
HPI/FS 500	1621	2500/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	16	1.5	4.8	31
HPI/FS 600	3105	2200/750	45-14x9	24...57	95.3	136.53	92.2	1.6	63.5	120.6	16	1.6	8.6	62
HPI/FS 700	6900	1600/450	60-18x11	48...82	127	180.98	123.9	1.6	90	158.8	20	1.6	19	156
