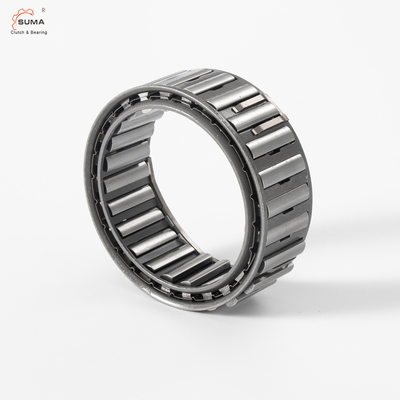

Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness

Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness

  • Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
  • Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
  • Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
  • Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
Product Details:
Place of Origin: China
Brand Name: SUMA
Model Number: DC 5776B 4C
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $5.60-7
Contact Now
Detailed Product Description
Precision Rating: P0 Seals Type: OPEN
Type: SPRAG Sprag Material: Gcr15
Thickness: 10mm Sprag Quantity: 12 Pieces
Torque Capacity: 63Nm Outer Diameter: 74.42
Bore Size: 57.76 Weight: 0.03kg
Overrunning Speed (outer): 750 Overrunning Speed (inner): 1500
Surface Hardness: HRC 60-62 Core Hardness: HRC35-45
Surface Roughness: 22CLA
Highlight:

Sprag clutch one way bearing 63Nm torque

,

DC 5776B one way clutch bearing

,

10mm thickness one way bearing

DC5776A DC5776B DC5776C Sprag Overrunning Clutch One Way Bearing
High-quality sprag type freewheel cage without inner or outer races, designed for power transmission equipment.
Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 0
Product Specifications
Item DC5776-N
Outer Diameter 74.42
Bore Size 57.76
Nominal Torque 63
Weight 0.03kg
Sprags Quantity 12
Overrunning Speed (outer race) 750
Overrunning Speed (inner race) 1500
Port Shanghai; Ningbo
Delivery Time 1-2 Days
Key Features
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
The DC type version-N accepts all types of lubricants currently used in the power transmission equipment.
Tolerance Requirements
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.
Hardness Specifications
  • Surface hardness: HRC 60 to 62 (minimum depth of 0.6mm)
  • Core hardness: HRC 35 to 45
  • Surface roughness not to exceed 22CLA
  • Maximum taper between races: 0.007mm for 25mm width
Available Sizes
Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 1
Type Drag Torque (NM) Size (mm) Number of Clips
DC2222G 50 22.225
DC2776 95 27.762
DC3034 99 30.34
DC3175(3C) 127 31.75 3
DC3809A 220 38.092
DC4127(3C) 179 41.275 3
DC4445A 290 44.45
DC4972(4C) 245 49.721 4
DC5476A 420 54.765
DC5776A 483 57.76

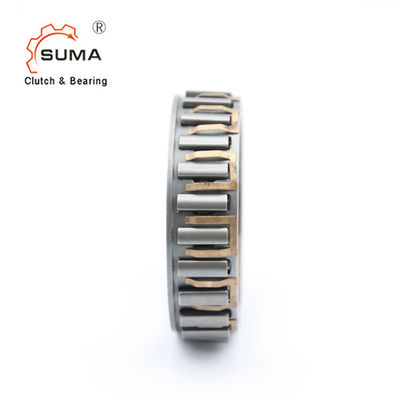

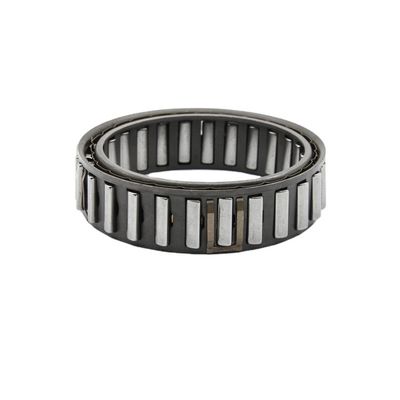

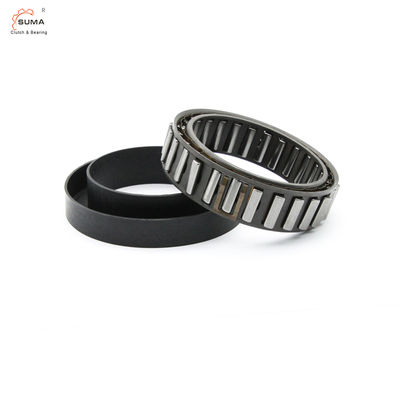

Product Images
Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 2 Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 3 Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 4
Packaging & Shipping
Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness 5
Frequently Asked Questions
How do you pack the goods?
  • Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Can I get samples from you?
We highly encourage requesting samples for quality verification.
Can you promise to deliver the goods on time?
  • Small items: In stock
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
