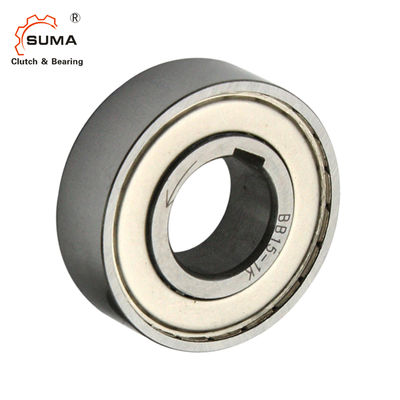

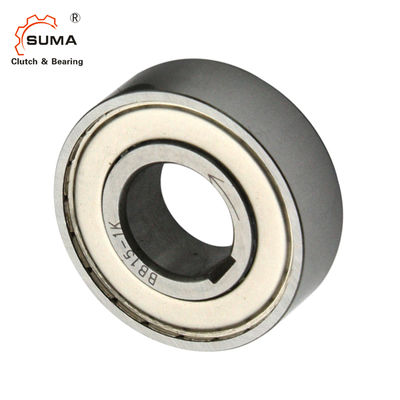

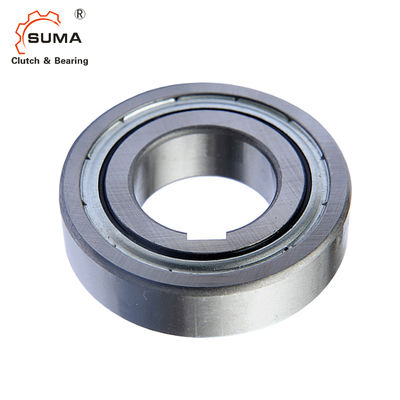

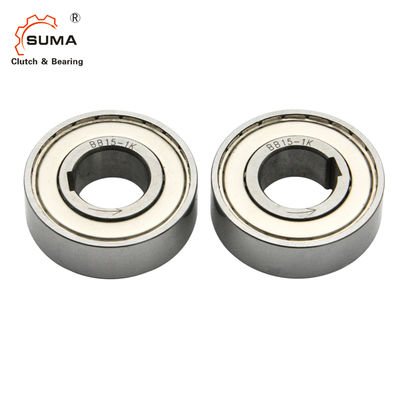

Name: BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BB 17-2K-K
Price: 6.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA or OEM

Model Number: BB 17-2K-K

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $6-6.80

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            17mm one way clutch bearing, 40mm OD sprag clutch bearing, 43Nm torque one way bearing


Precision Rating:	P0	Seals Type:	Sealed
Type:	Sprag	Material:	GCr15
Outer Diameter:	40 Mm	Bore Size:	17 Mm
Torque Capacity:	43 Nm	Max Overrunning (inner):	3500 R/min
Max Overrunning (outer):	1900 R/min	Drag Torque:	0.01 N*m
Weight:	80 N	Bearing Load Cr:	7000 N
Bearing Load Cor:	3700 N	Operating Temperature:	-30°C To +100°C
Shaft Dia. Tolerance:	17+0.023+0.012

Precision Rating:	P0
Seals Type:	Sealed
Type:	Sprag
Material:	GCr15
Outer Diameter:	40 Mm
Bore Size:	17 Mm
Torque Capacity:	43 Nm
Max Overrunning (inner):	3500 R/min
Max Overrunning (outer):	1900 R/min
Drag Torque:	0.01 N*m
Weight:	80 N
Bearing Load Cr:	7000 N
Bearing Load Cor:	3700 N
Operating Temperature:	-30°C To +100°C
Shaft Dia. Tolerance:	17+0.023+0.012

BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque

BB17 BB17-1K-K BB17-2GD One Way Sprag Backstop Bearings Cam Clutch Bearing

Product Specifications

Item	BB 17-2K-K
Material	GCr15
Outer dia.	40 mm
Bore size	17 mm
Torque Capacity	43 Nm
Max. Overrunning (inner race)	3500 r/min
Max. Overrunning (outer race)	1900 r/min
Port	Shanghai; Ningbo
Delivery time	10-15 days

Features & Installation Guidelines

BB series Cam Clutch is designed for press fit installation.
BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race.
BB-2K-K series has a keyway on both the inner and outer race.
Correct interference dimensions at the shaft and housing must be maintained.
Refer to the table for tolerance of the shaft and housing for each series.
BB, BB-1K and BB-2K Clutches have dust seal protection against particles of 0.25mm and over.

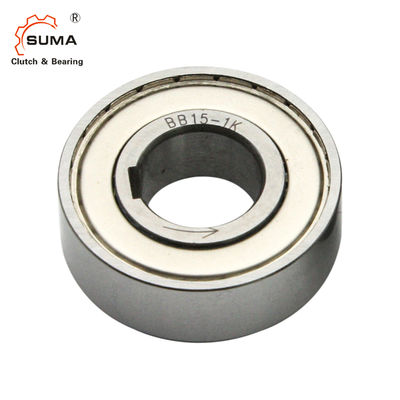

The arrow on the inner race shows the direction of inner race engaging.
To install the clutch, use a press tool of the appropriate diameter.
Do not hammer or apply other shock to the clutch.
Make sure the housing has enough strength for press fitting installation.
Operating temperature range: -30°C to +100°C.
