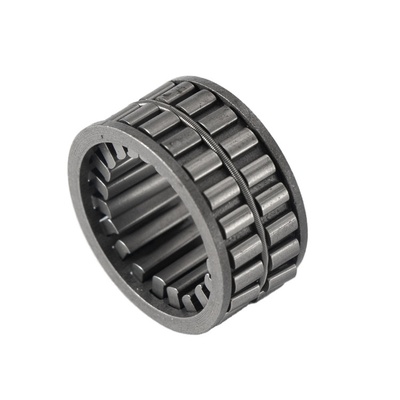

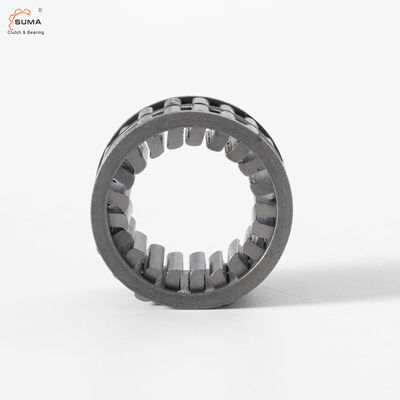

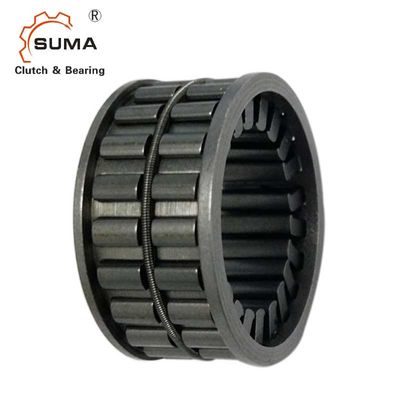

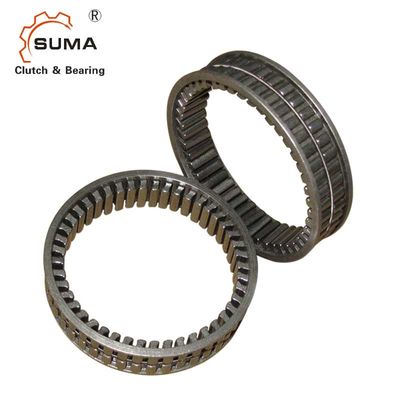

Name: FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FE422Z
Price: 2.40 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA

Model Number: FE422Z

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: $2.40-3.50

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            12mm bore one way clutch bearing, 22mm outer diameter sprag clutch bearing, FE422Z one way clutch bearing


Precision Rating:	P0	Seals Type:	OPEN
Type:	SPRAG, Freewheel Clutch	Material:	Chrome Steel
Torque:	44 N.m	Idling Speed:	5300 Rpm
Bore Diameter:	12mm	Outer Diameter:	22mm
Torque FE422:	48 N.m	Torque FE422 Z:	44 N.m
Torque FE422 Z2:	21 N.m	Idling Speed FE422:	5300 Rpm
Idling Speed FE422 Z:	5300 Rpm	Idling Speed FE422 Z2:	5300 Rpm
Max RPM:	10000 Rpm

Precision Rating:	P0
Seals Type:	OPEN
Type:	SPRAG, Freewheel Clutch
Material:	Chrome Steel
Torque:	44 N.m
Idling Speed:	5300 Rpm
Bore Diameter:	12mm
Outer Diameter:	22mm
Torque FE422:	48 N.m
Torque FE422 Z:	44 N.m
Torque FE422 Z2:	21 N.m
Idling Speed FE422:	5300 Rpm
Idling Speed FE422 Z:	5300 Rpm
Idling Speed FE422 Z2:	5300 Rpm
Max RPM:	10000 Rpm

FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

FE422Z FE 422 Z Sprag Type One Way Clutch Bearing FE 442 Z2

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

Applications

Indexing elements: Change from oscillating to intermittent rotary motion.
Backstops: Prevent self-reversing due to load condition when the machine is not activated.
Overrunning clutches: Maintain driven unit activated during slowdown, or switch to higher speed in two-speed operation.

Lubrication

Lubrication is critical for maximum freewheel clutch life and reduced drag. Refer to our Lubrication Selection Table for proper selection.

Note: Clutches (except sealed series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust-protected but not lubricated.

Dimensions and Specifications

dL	DL	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Idling speed nmax [RPM]
2	10					FE 410 Z2	0.3	10,000
80	88	FE 488	914	FE 488 Z	788			1,300

Product Features

We offer a wide range of freewheel-clutches with varying design features and dimensions to meet requirements for torque, indexing frequency, idling speed, and environment.

For optimal operation, the supporting equipment around the clutch must be built accurately and of high quality. We provide support units or complete assemblies as needed.

Product Images

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get the samples from you?

It is highly encouraged to ask for samples for quality check.

Can you promise to deliver the goods in time?

Small items: In stock.

Medium Items: 10-15 Days

Big items: 20-25 Days
