FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque

Product Details

Place of Origin: Jiangsu, China

Brand Name: SUMA or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            FSO300-700 one way clutch bearing, backstop cam clutch 379-6900 Nm torque, one way bearing with high torque


Inner Race Speed:	1600-3000 Min-1	Outer Race Speed:	450-900 Min-1
Torque Capacity:	379-6900 N.m	Weight Range:	1.6-19 Kg
Lubrication Type:	Grease	Bore Diameter:	15-5x5 To 175-45x25 Mm
Height A:	63.5-168.3 Mm	Height B:	76.2-381 Mm
Height C:	60.45-165.1 Mm	Dimension E:	1.6-3.2 Mm
Dimension F:	28.58-228.6 Mm	Dimension G:	66.67-298.45 Mm
Dimension K:	13-32 Mm	Dimension F:	0.8-3.2 Mm
Drag Torque:	18-156 Ncm

Inner Race Speed:	1600-3000 Min-1
Outer Race Speed:	450-900 Min-1
Torque Capacity:	379-6900 N.m
Weight Range:	1.6-19 Kg
Lubrication Type:	Grease
Bore Diameter:	15-5x5 To 175-45x25 Mm
Height A:	63.5-168.3 Mm
Height B:	76.2-381 Mm
Height C:	60.45-165.1 Mm
Dimension E:	1.6-3.2 Mm
Dimension F:	28.58-228.6 Mm
Dimension G:	66.67-298.45 Mm
Dimension K:	13-32 Mm
Dimension F:	0.8-3.2 Mm
Drag Torque:	18-156 Ncm

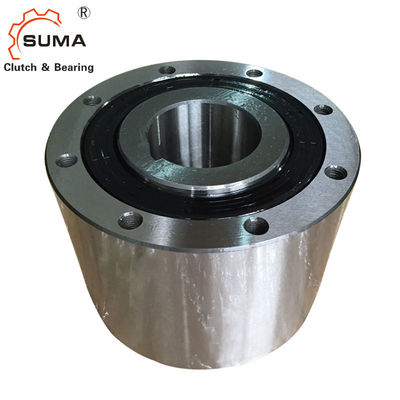

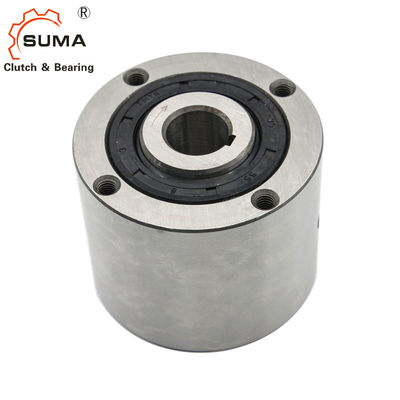

FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque

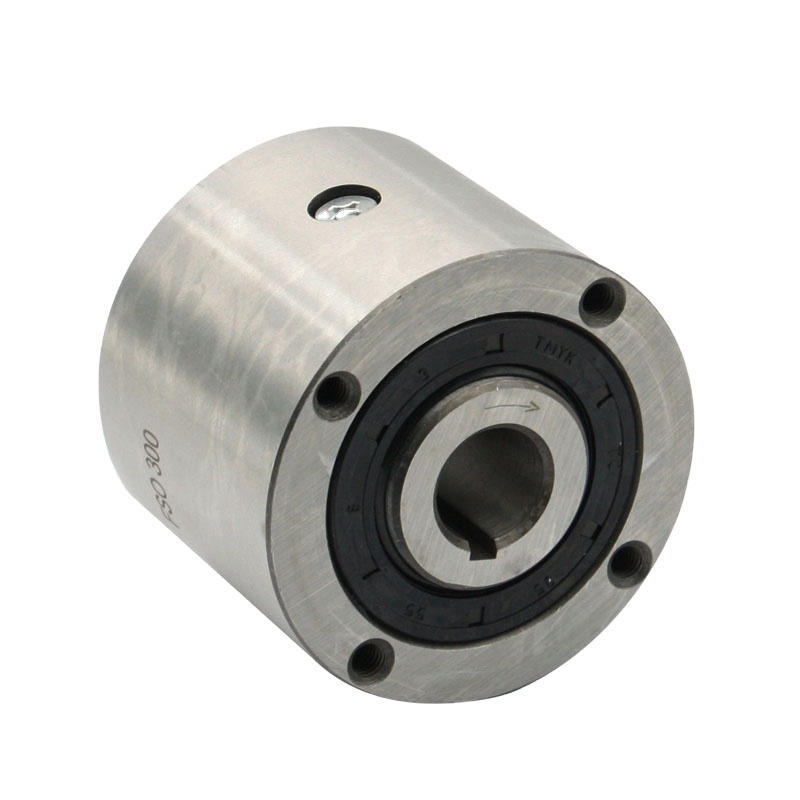

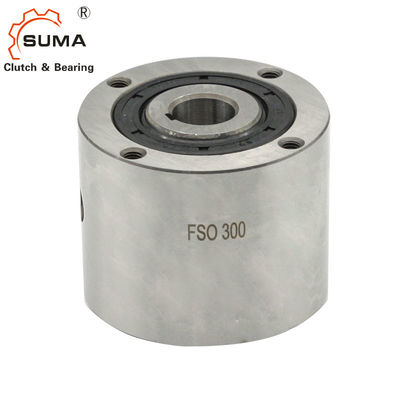

FSO Series FSO300-700 Backstop Cam Clutch One Way Bearing FSO300

Product Introduction

The FSO, FS, and HPI 750 to 1027 series are sprag type freewheels that are self-contained, sealed, and bearing supported, using two ball bearings. Units are delivered oil or grease lubricated according to type.

Based on Formsprag USA design, these units feature tall sprags with multi-radius active surfaces, specially engineered for large size freewheels to compensate for any eccentricity due to bearing wear.

FSO/HPI 300-700 Specifications

Type	Size	Overrunning Speeds	Weight	Torque Drag
FSO	300	3000/900	18 kg	1.6 Ncm
FSO-GR	400	2800/850	27 kg	2.7 Ncm
HPI	500	2500/800	31 kg	4.8 Ncm
	600	2200/750	62 kg	8.6 Ncm
	700	1600/450	156 kg	19 Ncm

FSO/HPI 750-1027 Specifications

Type	Torque Capacity	Overrunning Speed	Weight	Drag Torque
750	9660 Nm	1800/650	38 kg	5.08 Ncm
800	17940 Nm	1500/525	46 kg	7.12 Ncm
900	24408 Nm	1350/500	71 kg	8.47 Ncm
1027	36612 Nm	700/375	113 kg	13.56 Ncm

Technical Notes

T max = 2 × T KN
Inner race/outer race labyrinth seal
Inch bore available on request
Size 600 > 50 mm
Size 700 > 75 mm

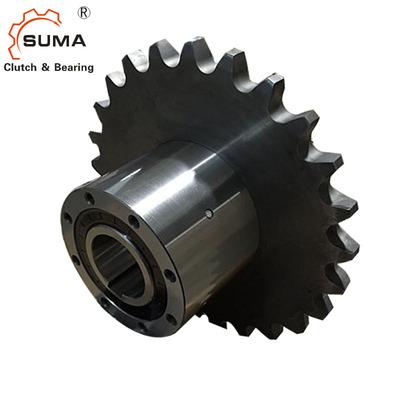

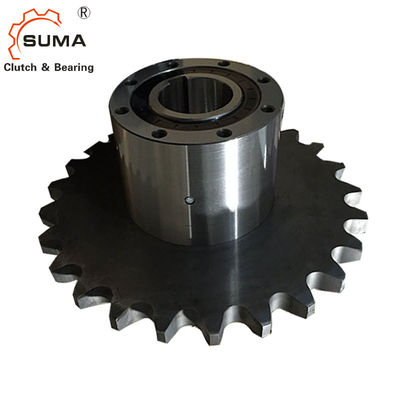

Mounting Example
