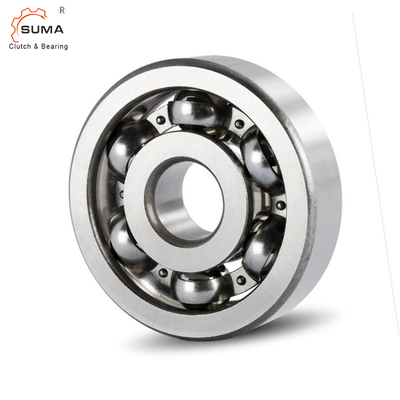

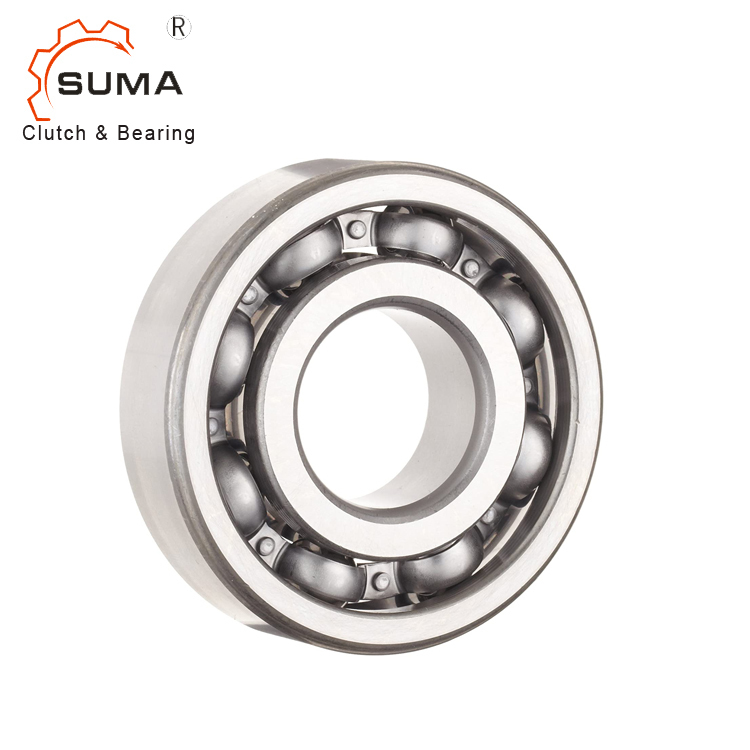

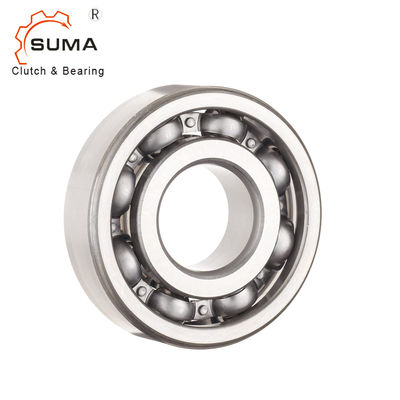

6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID

Name: 6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: 6000 Series
Price: 0.14 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Model Number: 6000 Series

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: $0.14-0.20

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            6201 deep groove ball bearings, 6208 open type ball bearings, 10-40mm ID ball bearings


Number Of Row:	Double Row	Precision Rating:	Z1 Z2 Z3
ID Dia.:	10-40mm	Thickness:	8-27mm
Bearing Type:	Ball Bearing	Structure:	Deep Groove
Type:	Ball	Bore Size:	12 - 40 Mm
Seals Type:	OPEN	Load Capacity Cr:	4.60 - 63.70 KN
Load Capacity Co:	2.00 - 34.60 KN	Rotation Speed Grease:	7800 - 26000 RPM
Rotation Speed Oil:	11000 - 38000 RPM	Weight:	0.02 - 1.25 Kg
Dimensions D:	10 - 40 Mm

Number Of Row:	Double Row
Precision Rating:	Z1 Z2 Z3
ID Dia.:	10-40mm
Thickness:	8-27mm
Bearing Type:	Ball Bearing
Structure:	Deep Groove
Type:	Ball
Bore Size:	12 - 40 Mm
Seals Type:	OPEN
Load Capacity Cr:	4.60 - 63.70 KN
Load Capacity Co:	2.00 - 34.60 KN
Rotation Speed Grease:	7800 - 26000 RPM
Rotation Speed Oil:	11000 - 38000 RPM
Weight:	0.02 - 1.25 Kg
Dimensions D:	10 - 40 Mm

6201-6208 Open Type Deep Groove Ball Bearings 10-40mm ID

6201 6202 6203 6204 6205 6206 6207 6208 Open Type Deep Groove Ball Bearings

Product Description

6201 6202 6203 6204 6205 6206 6207 6208 Open Type Deep Groove Ball Bearings

Features of Deep Groove Ball Bearings

Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.

Catalogue of Deep Groove Ball Bearings

Bearing No	Dimensions (mm)	Load Capacity (kN)	Rotation Speed (RPM)	Weight (kg)
	d \| D \| B \| RSMIN \| D2Max \| fMax	Cr \| Co	Grease \| Oil
6000	10 \| 26 \| 8 \| 0.3 \| 29.2 \| 0.7	4.60 \| 2.00	26000 \| 38000	0.02
6200	10 \| 30 \| 9 \| 0.6 \| 34.7 \| 1.12	5.10 \| 2.40	22000 \| 32000	0.03
6300	10 \| 35 \| 11 \| 0.6 \| 39.7 \| 1.12	8.10 \| 3.50	20000 \| 29000	0.05
6001	12 \| 28 \| 8 \| 0.3 \| 30.8 \| 0.85	5.10 \| 2.40	23000 \| 33000	0.02
6201	12 \| 32 \| 10 \| 0.6 \| 36.7 \| 1.12	6.80 \| 3.00	21000 \| 30000	0.04
6301	12 \| 37 \| 12 \| 1.0 \| 41.3 \| 1.12	9.70 \| 4.20	19000 \| 27000	0.06
6002	15 \| 32 \| 9 \| 0.3 \| 36.7 \| 1.12	5.60 \| 2.80	20000 \| 30000	0.03
6202	15 \| 35 \| 11 \| 0.6 \| 39.7 \| 1.12	7.60 \| 3.70	19000 \| 28000	0.05
6302	15 \| 42 \| 13 \| 1.0 \| 46.3 \| 1.12	11.40 \| 5.40	16000 \| 24000	0.08
6003	17 \| 35 \| 10 \| 0.3 \| 39.7 \| 1.12	6.00 \| 3.30	19000 \| 28000	0.04
6203	17 \| 40 \| 12 \| 0.6 \| 44.6 \| 1.12	9.60 \| 4.80	17000 \| 25000	0.07
6303	17 \| 47 \| 14 \| 1.0 \| 52.7 \| 1.12	13.60 \| 6.60	15000 \| 22000	0.12
6004	20 \| 42 \| 12 \| 0.3 \| 46.3 \| 1.12	9.40 \| 5.00	17000 \| 25000	0.07
6204	20 \| 47 \| 14 \| 0.6 \| 52.7 \| 1.12	12.80 \| 6.60	15000 \| 22000	0.1
6304	20 \| 52 \| 15 \| 1.0 \| 57.9 \| 1.12	15.90 \| 7.80	13000 \| 20000	0.14
6005	25 \| 47 \| 12 \| 0.6 \| 52.7 \| 1.12	10.10 \| 5.80	14000 \| 21000	0.08
6205	25 \| 52 \| 15 \| 1.0 \| 57.9 \| 1.12	14.00 \| 7.9	14000 \| 20000	0.13
6305	25 \| 62 \| 17 \| 1.1 \| 67.7 \| 1.7	20.60 \| 11.20	12000 \| 17000	0.22
6405	25 \| 80 \| 21 \| 1.5 \| 86.6 \| 1.7	36.10 \| 18.80	10000 \| 15000	0.53
6006	30 \| 55 \| 13 \| 1.0 \| 60.7 \| 1.12	13.20 \| 8.30	12000 \| 18000	0.11
6206	30 \| 62 \| 16 \| 1.0 \| 67.7 \| 1.7	19.50 \| 11.30	11000 \| 16000	0.2
6306	30 \| 72 \| 19 \| 1.1 \| 78.6 \| 1.7	26.60 \| 15.00	10000 \| 15000	0.35
6406	30 \| 90 \| 23 \| 1.5 \| 96.5 \| 2.46	47.30 \| 24.50	9300 \| 13000	0.74
6007	35 \| 62 \| 14 \| 1.0 \| 67.7 \| 1.7	15.90 \| 10.30	11000 \| 16000	0.15
6207	35 \| 72 \| 17 \| 1.1 \| 78.6 \| 1.7	25.70 \| 15.30	10000 \| 14000	0.29
6307	35 \| 80 \| 21 \| 1.5 \| 86.6 \| 1.7	33.40 \| 19.20	9300 \| 13000	0.45
6407	35 \| 100 \| 25 \| 1.5 \| -- \| --	55.50 \| 29.40	8500 \| 12000	0.95
6008	40 \| 68 \| 15 \| 1 \| 74.6 \| 1.7	16.80 \| 11.50	10000 \| 15000	0.19
6208	40 \| 80 \| 18 \| 1.1 \| 86.6 \| 1.7	29.50 \| 18.10	8800 \| 13000	0.37
6308	40 \| 90 \| 23 \| 1.5 \| 96.5 \| 2.46	40.70 \| 24.00	8500 \| 12000	0.64
6408	40 \| 110 \| 27 \| 2 \| 116.6 \| 2.46	63.70 \| 34.60	7800 \| 11000	1.25

Production Flow

Frequently Asked Questions

How do you pack the goods?

Small Items: In Tube box - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / pallet

Can I get the samples from you?

It is highly encouraged to ask for the samples for quality check.

Can you promise to deliver the goods in time?

Small Qty: In stock
Medium Qty: 10-15 Days
Big Qty: 20-25 Days
