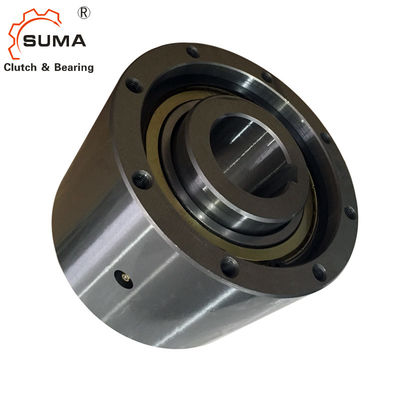

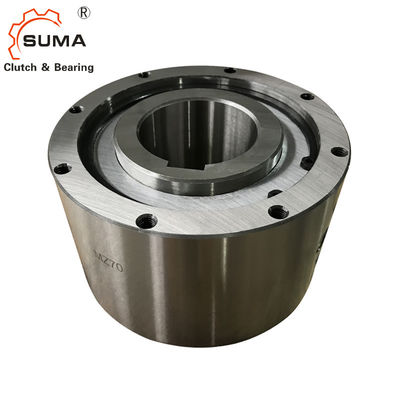

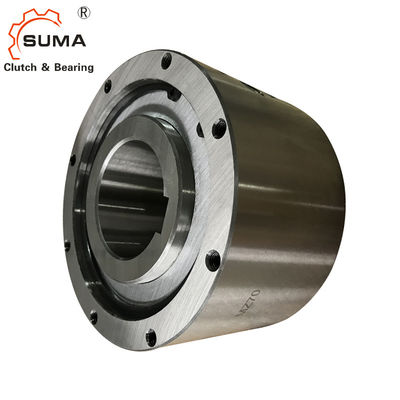

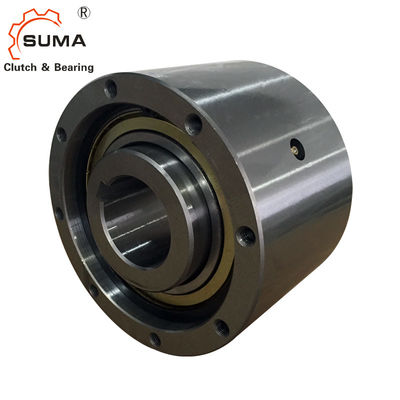

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	SUMA
Model Number:	MX35

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Precision Rating:	P0	Seals Type:	Sealed
Type:	CAM	Torque Capacity:	235 Nm
Max Indexing:	1200 Cycle/min	Drag Torque:	1.36
Weight:	6.4 Kg	Bore Size:	35 Mm
Outer Race:	125 Mm	Press Fit Tolerance:	0.025 Mm
Hub Bore Tolerance:	H6 Or H7	Model:	MX35
Installation Method:	Press Fit	Keyway Clearance:	Tight Fit With Top Clearance
Mounting Pressure:	Inner Race End Only
Highlight:	MX35 cam clutch bearing 35mm bore , one way clutch bearing 235Nm torque , 35mm bore clutch bearing with warranty

MX35 One Way Roller Clutch Cam Clutch

Product Specifications

Item	MX35
Precision	P0
Type	cam
Bore size (mm)	35
Outer race (mm)	125
Torque Capacity(Nm)	235
Max.Indexing(cycle/min)	1200
Weight (kg)	6.4
Application	Elevator, industrial machine and more

Installation and Usage

Insert the clutch into the hub bore of a pulley, gear, or torque arm and secure with high-tension bolts in the tapped holes.
MX Series clutches require a press fit for indexing applications (do not exceed 0.025 mm).
Adjust the key side to fit the keyway tightly while maintaining clearance between the top of key and keyway.
When mounting on a shaft, apply pressure only to the inner race end - never to the outer race.
For optimal performance, pair with braking and backstopping devices as needed.
Hub bore tolerance should be H6 or H7.
