Name: BB15-2K-K Sprag Cam Clutch Bearing 15mm Bore 35mm OD
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BB 15-2K-K
Price: 8.00 USD
Availability: InStock

Home Products One Way Clutch Bearing

BB15-2K-K Sprag Cam Clutch Bearing 15mm Bore 35mm OD

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	SUMA or OEM
Model Number:	BB 15-2K-K

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$6-10

Contact Now

Detailed Product Description

Type:	Sprag	Precision Rating:	P0
Seals Type:	Sealed	Material:	GCr15
Outer Diameter:	35 Mm	Bore Size:	15 Mm
Torque Capacity:	29 Nm	Max Overrunning (inner):	3600 R/min
Max Overrunning (outer):	2000 R/min	Drag Torque:	0.01 N*m
Weight:	50 N	Bearing Load (Cr):	5950 N
Bearing Load (Cor):	3230 N	Operating Temperature:	-30°C To +100°C
Shaft Diameter Tolerance:	15-0.008-0.028 Mm
Highlight:	15mm sprag clutch bearing , one way clutch bearing 35mm OD , BB15-2K-K cam clutch bearing

BB 15-2K-K Cam Clutch Bearing All Type of Bearing

Product Specifications

Attribute	Value
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type	sprag
Precision Rating	P0
Seals Type	sealed
Material	GCr15
Outer diameter	35 mm
Bore size	15 mm
Torque Capacity	29 Nm
Package	single box or as your requirements
Port	Shanghai, Ningbo
Delivery time	10-15 Days
OEM	Accept

Technical Data

Item	BB15 2K-K
Material	GCr15
Outer dia.	35 mm
Bore size	15 mm
Torque Capacity	29 Nm
Max. Overrunning(inner race)	3600 r/min
Max. Overrunning(outer race)	2000 r/min

Key Features

BB series Cam Clutch is designed for press fit installation
BB-2K-K series has a keyway on both the inner and outer race
Dust seal protection against particles of 0.25mm and over
Special lip seals for effective protection against any dust (BB-2GD series)
Operating temperature range: -30°C to +100°C
Arrow on inner race indicates direction of engagement
Pre-greased before delivery (no additional lubrication needed)

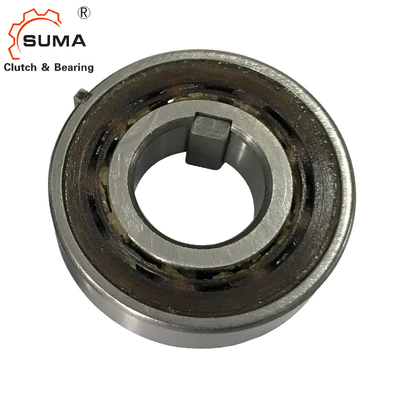

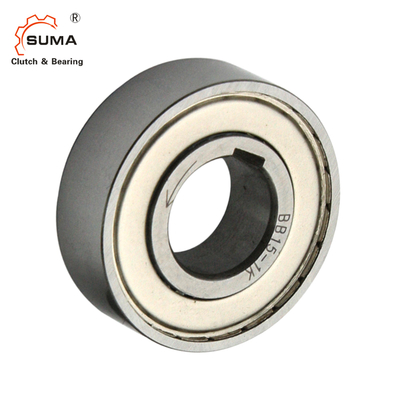

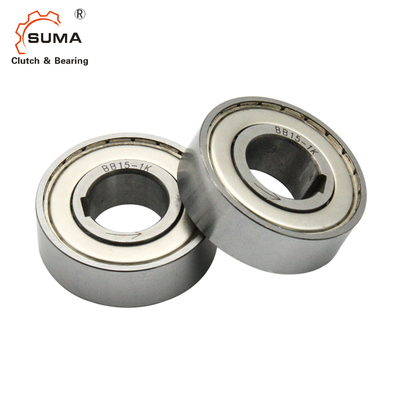

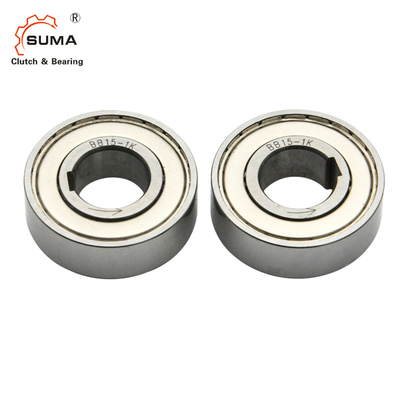

Product Images

Dimensions and Capacities

All dimensions in mm

Model	Torque Capacity (N*m)	Max. Overrunning (r/min)	Drag Torque (N*m)	Weight (N)
BB15	29	3600 (inner) 2000 (outer)	0.01	50

Tolerance Specifications

Model	Shaft Dia. (mm)	Housing Dia. (mm)
BB15-2K-K	15-0.008-0.028	35-0.018-0.002

Lubrication Guidelines

Grease is pre-applied before delivery
For oil lubrication, maintain continuous internal oil supply
Do not use greases or lubricants with EP additives

Certifications

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) specializes in producing various cam clutches, one way bearings, and overrunning clutches with high technology.
