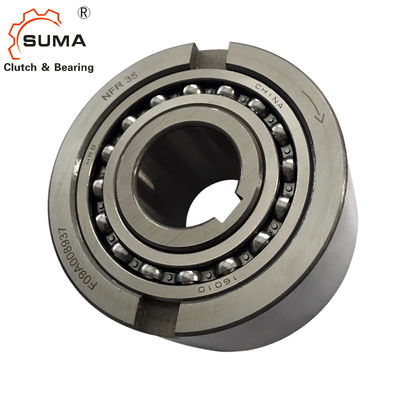

NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM

Name: NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: NFR45
Price: 186.00 USD
Availability: InStock

Brand Name:	SUMA
Model Number:	NFR45
MOQ:	1
Price:	$175-198

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

ROLLER TYPE

Precision Rating:

Seals Type:

OPEN

Thickness:

63mm

Torque Capacity:

1500Nm

Inner Race Overruns:

1000RPM

Outer Race Overruns:

2400RPM

Weight:

4kg

Bore Size:

8-130mm

Outer Race Size:

37-300mm

Overrunning Speeds:

1000-3600rpm

Torque Range:

20-34750N.m

Thickness Range:

20-180mm

Weight Range:

0.1-68kg

Bearing Support:

Steel On Steel / Ball Bearings

Highlight:

One Way Clutch Bearing 1500Nm torque

One Way Clutch Bearing 1000RPM

NFR45 One Way Clutch Bearing

Product Description

NFR45 NFR 45 One Way Backstopping Clutch Freewheel Bearings

Product Specifications

Attribute	Value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works, Energy & Mining
Type	ROLLER TYPE
Precision Rating	P0
Seals Type	OPEN
Product Name	Backstopping Clutch Freewheel Bearings
Thickness	63mm
Torque Capacity	1500Nm
Inner Race Overruns	1000RPM
Outer Race Overruns	2400RPM
Weight	4kg

Product Description

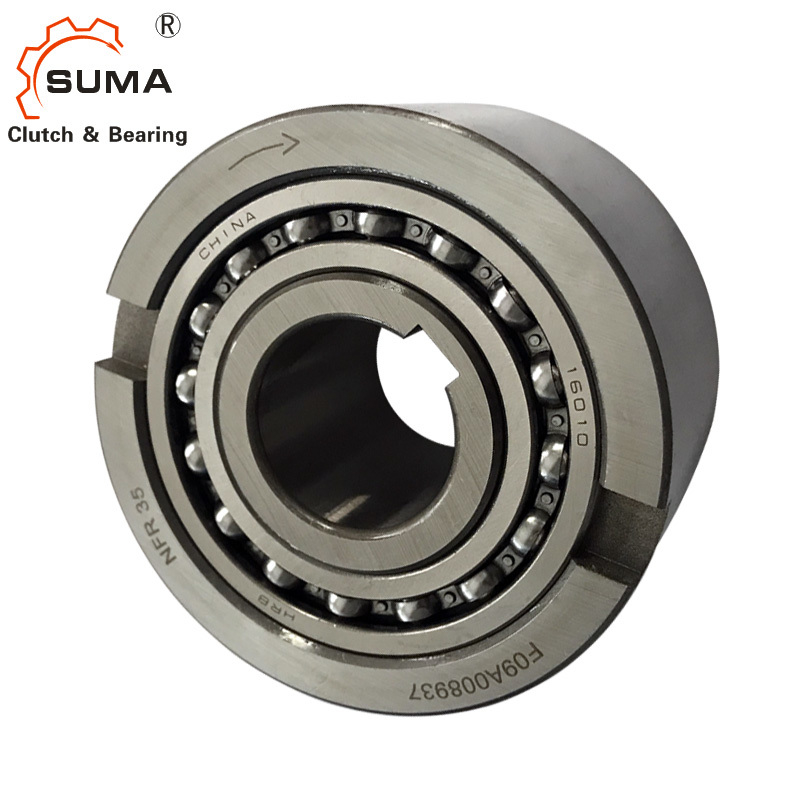

The NFR Series One Way Backstopping Clutch is a bearing-supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation, with standard lubrication being oil.

For sizes 8 to 20 units, steel on steel bearing supports the inner race. Above size 20, two 160...Series ball bearings are used, providing higher overrunning speed capacity.

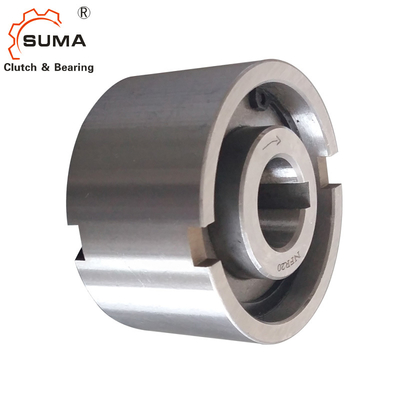

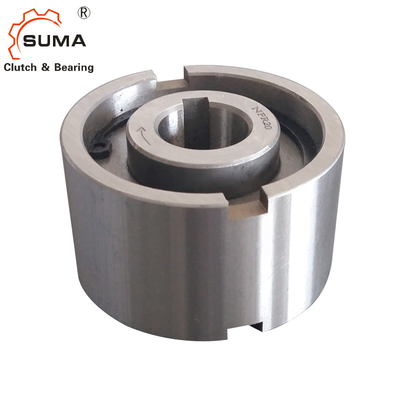

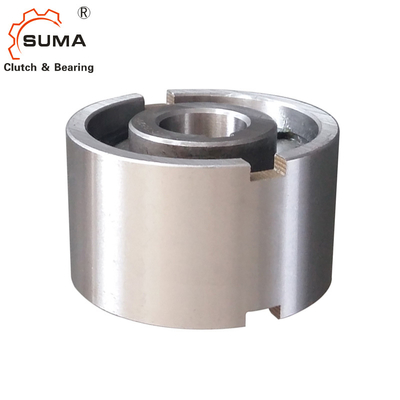

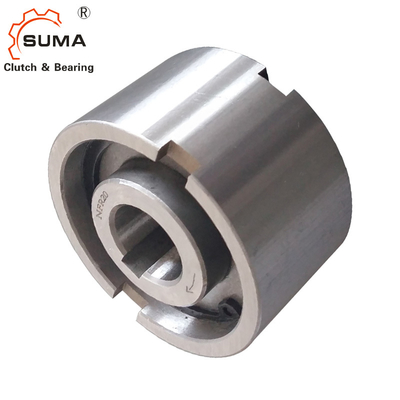

The inner race is keyed to the shaft. The outer race has a positive n6 tolerance for a press fit in a housing to H7. Additional side notches enable positive torque transmission. The housing must be strong enough to prevent expansion after assembly.

Technical Specifications

Model	Torque (N.m)	Overrunning Speeds (rpm)	Dimension (mm)	Weight (Kg)
NFR8-NFR130	20-34750	Inner Race: 1000-250 Outer Race: 1000-3600	Bore Size: 8-130 Outer Race Size: 37-300 Thickness: 20-180	0.1-68

Detailed Parameters

1) Tmax = 2 × TKN

2) Inner race overruns

3) Outer race overruns

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

It is highly encouraged to ask for samples for quality check.

Can you promise to deliver the goods in time?

Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
