One Way Clutch Bearing
Created with Pixso. FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • name
  • name
  • name
  • name
  • name
  • name

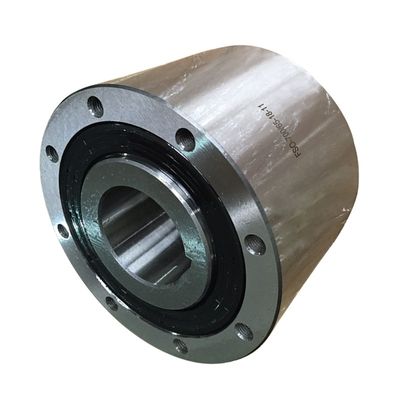

FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

Brand Name: SUMA or OEM
MOQ: 2
Price: US$1,000-1,100
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Inner Race Speed:
1350 Min-1
Outer Race Speed:
500 Min-1
Torque:
24408 N.m
Weight:
71 Kg
Lubrication Type:
Grease
Sprag Type:
Tall Sprags
Bearing Support:
Two Ball Bearings
Seal Type:
Labyrinth Seal
Bore Size Range:
600 > 50 Mm, 700 > 75 Mm
Mounting Holes:
6 Holes At 60° + 2 Extra
Max Torque:
2 × T KN
Design Type:
Formsprag USA
Lubrication Options:
Oil Or Grease
Bore Availability:
Metric Or Imperial
High Speed Design:
HPI Model
Highlight:

HPI 900 sprag type clutch

,

conveyor hold back clutch

,

one way clutch bearing

Product Description
FSO900 / HPI 900 Hold Back Clutch with Sprag Type Freewheels for Conveyors and Reducers
Product Specifications
Attribute Value
Warranty 1 YEAR
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Customized support OEM
Inner race overrunning speed (min-1) 1350
Outer race overrunning speed (min-1) 500
Torque (N.m) 24408
Weight (kg) 71
Lubricated grease
OEM Accept
Delivery 10-15 days
Product name FSO900 / HPI 900
Product Overview
The FSO900 is a one-way hold back clutch with sprag type freewheels, designed for conveyor systems and reducers. This self-contained, sealed unit features bearing support with two ball bearings for reliable operation.

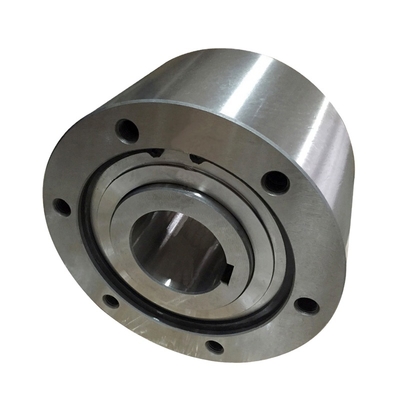

FSO900 / HPI 900 Hold Back Clutch with Sprag Type Freewheels Close-up view of FSO900 clutch mechanism
Key Features
  • Available in FSO, FS, and HPI 750 to 1027 series
  • Sprag type freewheels with self-contained, sealed design
  • Bearing supported with two ball bearings
  • Delivered oil or grease lubricated according to type
  • Formsprag USA design with tall sprags and multi-radius active surfaces
  • Compensates for eccentricity due to bearing wear
  • FS and HPI types are oil lubricated with standard shaft lip seals
  • FSO type is grease lubricated with special grease seals
  • HPI type designed for high speed indexing applications
  • Available in standard metric bore diameters with custom sizes available
FSO series one way clutch catalogue Technical diagram of FSO900 clutch
Technical Notes
1) T max = 2 × T KN
2) Inner race/outer race
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180°
Mounting Example
Mounting example of FSO900 clutch Detailed view of FSO900 clutch components Assembly diagram of FSO900 clutch Technical specifications of FSO900 clutch
Packaging
Packaging of FSO900 clutch Shipping container for FSO900 clutch
