One Way Clutch Bearing
Created with Pixso. BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors
BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors
  • name
  • name
  • name
  • name
  • name
  • name

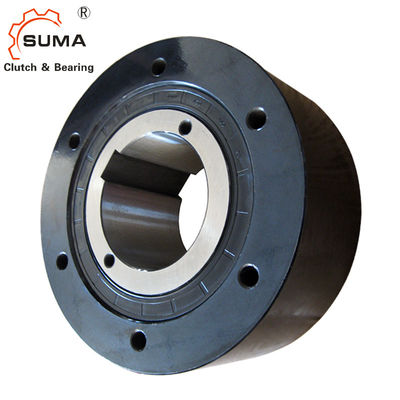

BS160HS One Way Clutch Bearing 39200N.m Torque for Conveyors

Brand Name: SUMA or OEM
MOQ: 1
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu, China
Torque Capacity:
39200 N.m
Drag Torque:
34.4 N.m
Grease Quantity:
0.23 Kg
Precision Grade:
P6
Material:
GCr15
Max Overrunning Speed:
350 R/min
Inner Race Diameter:
180 Mm
Outer Diameter:
360 Mm
Width:
175 Mm
PCD Diameter:
315 Mm
Flange Diameter:
220 Mm
Bolt Size:
M20 ×P2.5×10
Grease Filler Hole:
PT 1/4
Bolt Pitch:
2.5 Mm
Bolt Quantity:
10
Highlight:

One Way Clutch Bearing 39200N.m torque

,

Clutch Bearing for Conveyors

,

High Torque One Way Bearing

Product Description
BS160HS One Way Clutch Bearing for Reverse Rotation Prevention on Conveyors
Product Attributes
Attribute Value
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
OEM accept
Torque Capacity (N.m) 39200
Drag Torque (N.m) 34.4
Q'ty Grease (kg) 0.23
Precision P6
Delivery 10-15days
Package wooden box or as your requirements
Port Shanghai ; Ningbo
Material GCr15
Application Machinery
Product Description
The BS series Cam Clutches are designed for applications where reverse rotation of the slow speed conveyor head shaft needs to be prevented (backstopping).
MODELS BS30 TO BS135
BS30 to BS135 One Way Clutch Bearing models
MODELS BS160HS TO BS450HS
The BS-HS series offers higher torque and speed capabilities not found in conventional models.
BS160HS to BS450HS One Way Clutch Bearing models BS160HS One Way Clutch Bearing dimensions
Dimensions and Capacities
Dimensions in mm
Bore Keyway, Weight
BS160HS One Way Clutch Bearing bore keyway details
Detailed Images
Detailed view of BS160HS One Way Clutch Bearing Close-up of BS160HS One Way Clutch Bearing components BS160HS One Way Clutch Bearing assembly BS160HS One Way Clutch Bearing technical specifications BS160HS One Way Clutch Bearing installation diagram
Certificate
BS160HS One Way Clutch Bearing certification
Production Flow
BS160HS One Way Clutch Bearing production process
Cooperation
BS160HS One Way Clutch Bearing partnership network
FAQ
How do you pack the goods?
  • Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Can I get the samples from you?
It is highly encouraged to ask for samples for quality check.
Can you promise to deliver the goods in time?
  • Small items: In stock
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
