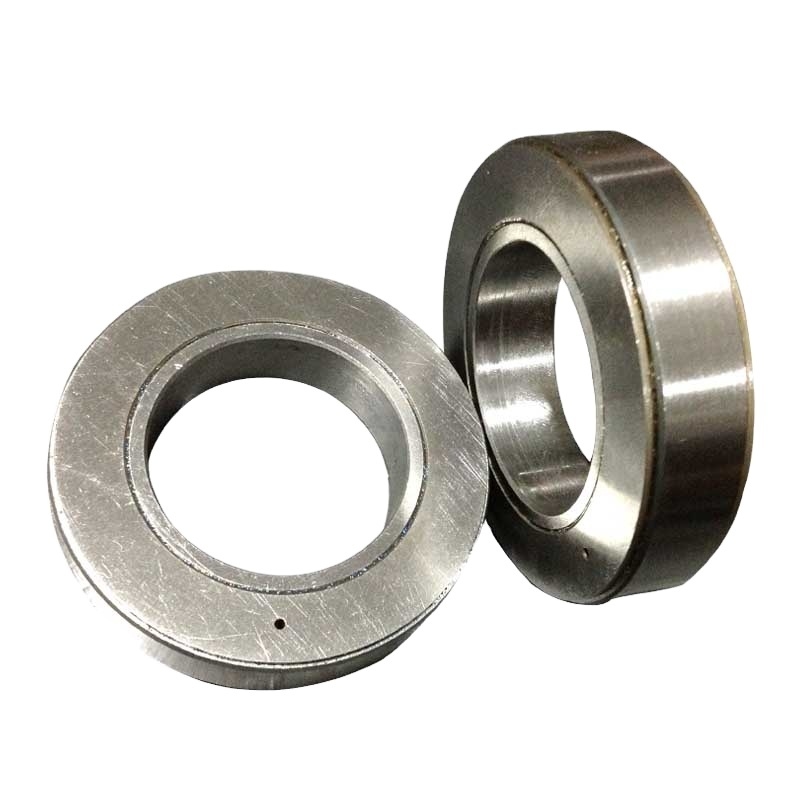

ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

Model Number:	ASK
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Precision Rating:

Number Of Row:

Single Row

Material:

Gcr15

Inner Diameter:

40-60 Mm

Outer Diameter:

68-95 Mm

Width:

15-18 Mm

Weight:

0.25-0.5 Kg

Structure:

Deep Groove

Type:

BALL

Bore Size:

40 - 60 Mm

Seals Type:

Sealed

Dynamic Load:

16-25.3 KN

Static Load:

20.6-35.1 KN

Max Speed:

1800-3500 Min-1

Drag Torque:

15-25 Ncm

Highlight:

40mm one way clutch bearing sealed

60mm one way clutch bearing

sealed one way clutch bearing

Product Description

China Bearing Manufacturer One Way Clutch Indexing Clutch ASK

Product Attributes

Attribute	Value
Applicable Industries	Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Precision Rating	P0
Number of Row	Single row
Material	Gcr15
Inner diameter	40-60 mm
Outer diameter	68-95 mm
Width	15-18 mm
Weight	0.25-0.5 kg
Package	Cartons Paper Box
Port	Shanghai; Ningbo
Delivery time	Prompt
Application	Machinery
Structure	Deep Groove
Type	BALL
Bore Size	40 - 60 mm
Seals Type	Sealed

Product Description

Product Model: ASK
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated.

Nominal outside dimensions are the same as a 60...Series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60...Bearing location: Shaft tolerance should be h6 or j6. The Outer race should be pressed into a rigid housing to K6 tolerance.

Radial bearing load capacities are given in the table. Type ASK freewheels cannot accept axial loading. In cases of such loads, thrust bearings must be provided.

Technical Specifications

Type	Size	Bearing Series	TKN1 (Nm)	nmax (min-1)	Outside Diameter (mm)	Height (mm)	Bearing loads Dynamic (kN)	Bearing loads Static (kN)	Weight (kg)	Drag torque (Ncm)
ASK	40	6008	72	3500	68	15	16	20.6	0.25	15
ASK	50	6010	125	2200	80	16	19.6	23.5	0.34	20
ASK	60	6012	250	1800	95	18	25.3	35.1	0.5	25

Product Images

Packaging
