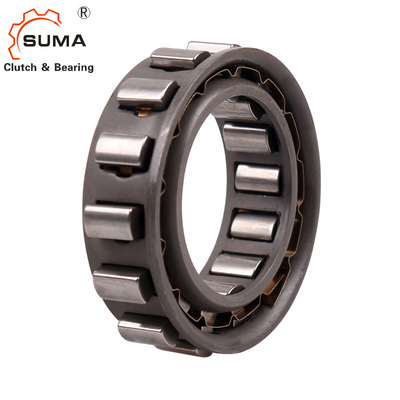

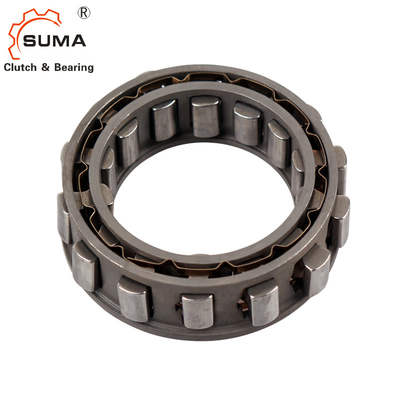

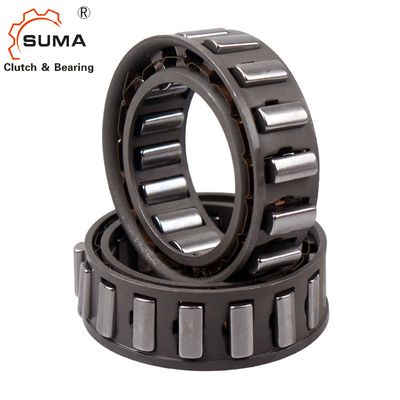

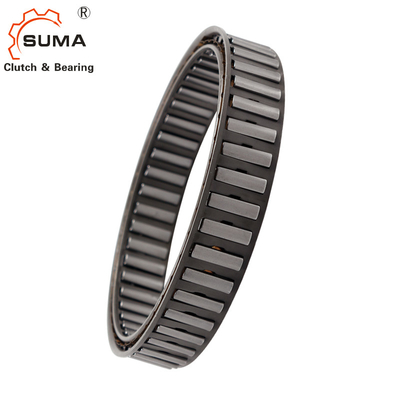

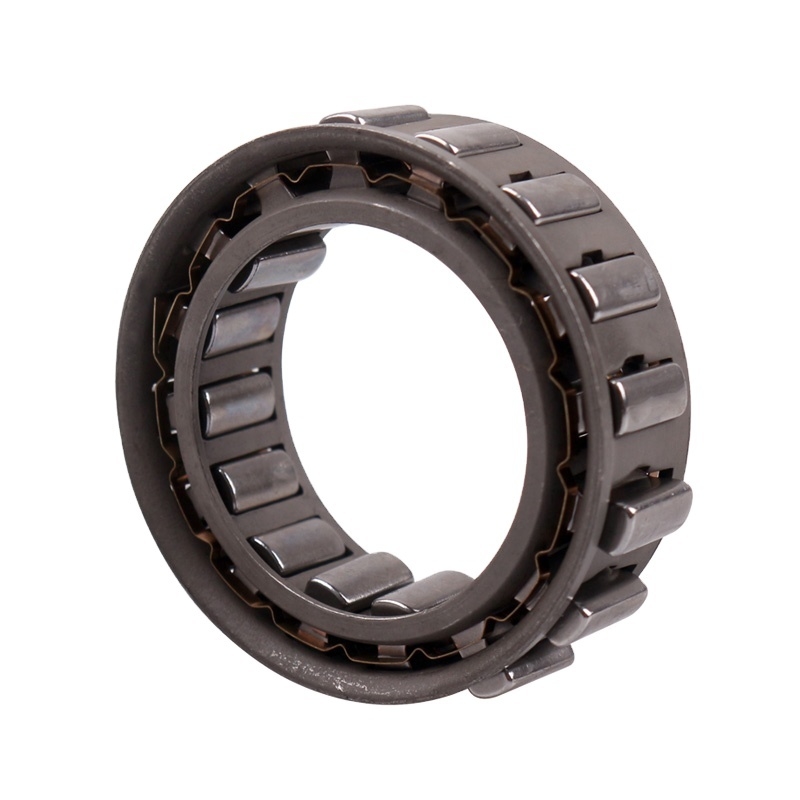

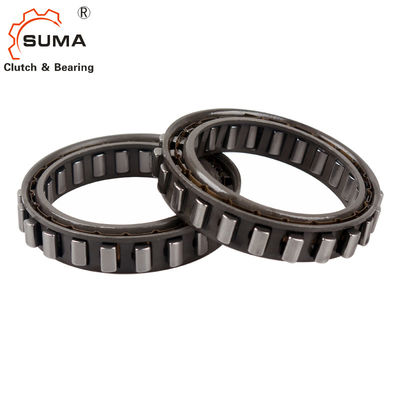

DC2222G Sprag Clutch One Way Bearing 22.225mm Bore 63Nm Torque

Name: DC2222G Sprag Clutch One Way Bearing 22.225mm Bore 63Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: DC2222G
Price: 3.80 USD
Availability: InStock

Brand Name:	SUMA
Model Number:	DC2222G
MOQ:	2
Price:	$3.80-4.50

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

SPRAG

Precision Rating:

Seals Type:

OPEN

Sprag Material:

Gcr15

Thickness:

10mm

Sprag Quantity:

12 Pieces

Torque Capacity:

63Nm

Outer Diameter:

38.885

Bore Size:

22.225

Weight:

0.03kg

Overrunning Speed (outer):

750

Overrunning Speed (inner):

1500

Surface Hardness:

HRC 60-62

Core Hardness:

HRC35-45

Surface Roughness:

22CLA

Highlight:

22.225mm bore sprag clutch bearing

one way bearing 63Nm torque

DC2222G one way clutch bearing

Product Description

DC2222G China Bearing Factory Sprag Clutch DC One Way Bearing

Product Specifications

Attribute	Value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops
Type	SPRAG
Precision Rating	P0
Seals Type	OPEN
Product Name	Sprag Clutch DC2222G-N
Sprag Material	Gcr15
Thickness	10mm
Sprag Quantity	12 Pieces
Torque Capacity	63Nm
Package	Each in white box + Carton Box
Delivery	1-2 Days
Service	OEM Service
Port	Shanghai; Ningbo

Technical Data

Item	DC2222G-N
Outer Diameter	38.885
Bore Size	22.225
Nominal Torque	63
Weight	0.03kg
Sprags Quantity	12
Overrunning Speed (outer race)	750
Overrunning Speed (inner race)	1500
Port	Shanghai; Ningbo
Delivery Time	1-2 Days

Key Features

Type DC is a sprag type freewheel cage without inner or outer races
Must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing
The DC type version-N accepts all types of lubricants currently used in power transmission equipment

Technical Specifications

Tolerance: Sprag space tolerance must not be exceeded. Inner and outer races must both have minimum plain width without recess
Hardness: Surface hardness HRC 60-62 (0.6mm min depth), Core hardness HRC35-45
Surface roughness: Not to exceed 22CLA
Maximum taper: 0.007mm for 25mm width

Available Sizes

Type	Drag Torque (NM)	Size (mm)	Number of Clips
DC2222G	50	22.225	17
DC2776	95	27.762	21
DC3034	99	30.34	23
DC3175(3C)	127	31.75	24
DC3809A	220	38.092	29
DC4127(3C)	179	41.275	32
DC4445A	290	44.45	34
DC4972(4C)	245	49.721	38
DC5476A	420	54.765	42
