Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616
  • Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616

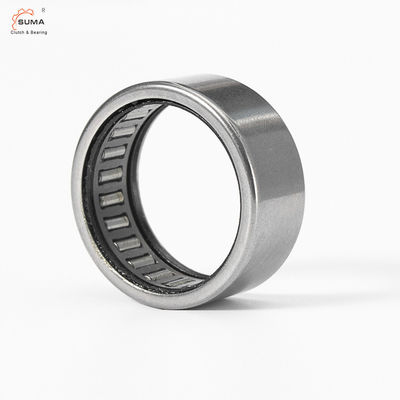

Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616

Place of Origin CHINA
Brand Name SUMA
Certification SGS ISO
Model Number HF1216 HF1416 HF1616
Product Details
Product Name:
One Way Needle Bearing
Material:
ST14
Size:
12*18*16mm
Torque Capacity:
90Nm
Weight:
0.09Kg
OEM:
Accept
Warranty:
3 Months
Package:
Roll Pack + Carton Box / Wooden Case
High Light:

HF1216 HF1416 HF1616

,

ST14 Needle Roller Bearings

,

OEM Drawn Cup Needle Bearing

Payment & Shipping Terms
Minimum Order Quantity
10
Price
0.9USD-1.2USD PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

HF1216 HF1416 HF1616 Drawn Cup One Way Needle Roller Bearings

Technical Datas



Drawn cup roller clutches:

  • are one-way clutches, which transmit torques in one direction
  • are available with or without an integrated bearing arrangement
  • give very precise indexing
  • allow high indexing frequencies
  • have a low overrunning frictional torque
  • are available with or without greasing
  • are particularly compact in a radial direction and therefore permit extremely compact designs
  • are suitable for housing materials made from steel, light metal or plastic
  • can be combined with drawn cup needle roller bearings with open ends HK and drawn cup needle roller bearings with closed end BK
  • have an extensive range of applications, for example as indexing clutches, back-stopping clutches and overrunning clutches



Dimensions and Capacities for Drawn cup roller clutch




Shaft Diameter Bearing Designation Mass Approx Dimensions Permissible Torque Limiting Speed

Suitable Drawn

Cup Bearings

Shaft dia. Outer dia. Thickness Rotating Shaft Min-1 Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF   2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
  HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
-- HF061210 3.2 8 12 10 3 16000 12000 HK0808
-- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
-- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
-- HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 5.3 14000 11000 HK1010
HF101612   4.8 10 16 12 6 12000 10000
12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
35 -- HF3520 40 35 42 20 121 3900 3900 HK3512


Pictures

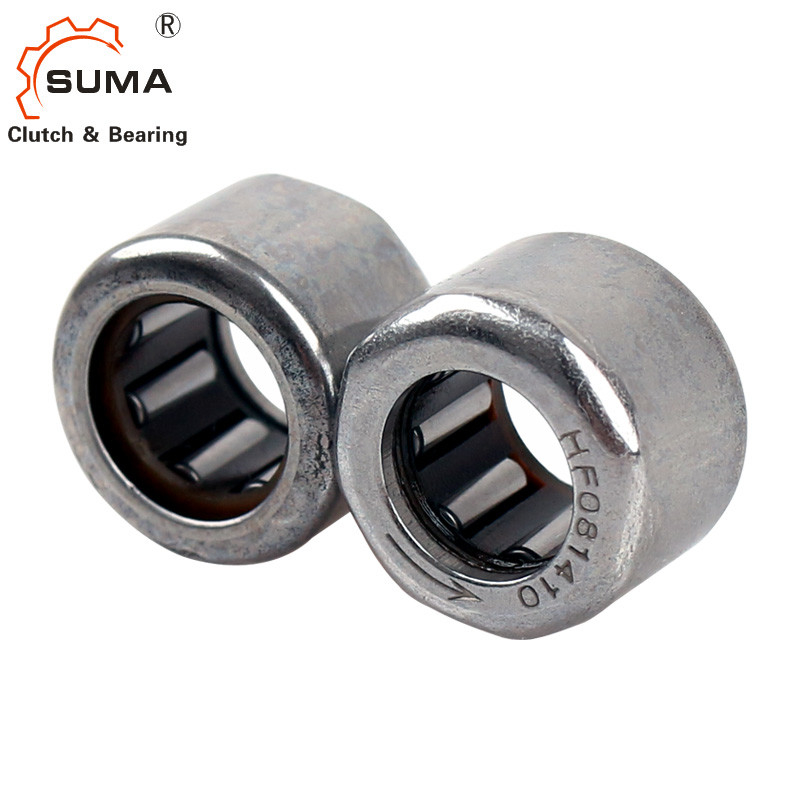

Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616 1

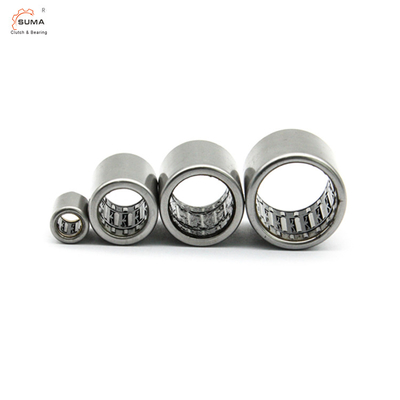

Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616 2

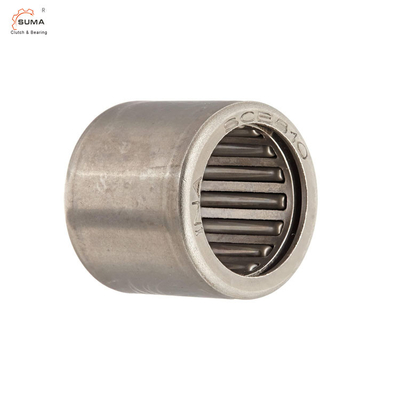

Drawn Cup One Way Needle Roller Bearings HF1216 HF1416 HF1616 3
