Drawn Cup Needle Bearing
Created with Pixso. RCB121616 Drawn Cup Needle Roller Bearing One Way

RCB121616 Drawn Cup Needle Roller Bearing One Way

Brand Name: SUMA
Model Number: RCB121616
MOQ: 10
Price: 0.2USD-1USD PER PIECE
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Detail Information
Place of Origin:
CHINA
Certification:
ISO SGS
Packaging Details:
Roll pack + Carton Box
Supply Ability:
100000 PCS PER MONTH
Highlight:

RCB Drawn Cup Needle Bearing

,

ST14 Drawn Cup Needle Bearing

,

ST14 One Way Needle Roller Bearing

Product Description

RCB121616 Drawn Cup Needle Roller Bearing One Way

Features :

  • Roller clutch and bearing assembly for transmitting torque in one direction while allowing free overrun in the opposite direction
  • Roller bearings on each end of the clutch for carrying radial loads
  • Drawn steel outer shell (cup) has a small cross-section for use in restricted spaces
  • Polyamide nylon clutch cage with a stainless steel pressure spring on each clutch roller
  • Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads



Technical Datas



Bearing Designation

Mass Approx



DIMMENSIONS
Fw D C Torque
g mm Nm
RC02 2 3.175 7.15 6.35 0.32
RC040708 3.5 6.35 11.112 12.7 2.03
RC061008 4.7 9.525 15.875 12.7 5.45
RC081208 9.2 12.7 19.05 12.7 8.84
RC101410 14.5 15.875 22.225 15.88 16.9
RC121610 16.2 19.05 25.4 15.88 23.3
RC162110 17 25.4 33.338 15.88 49.6
RCB061014 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45

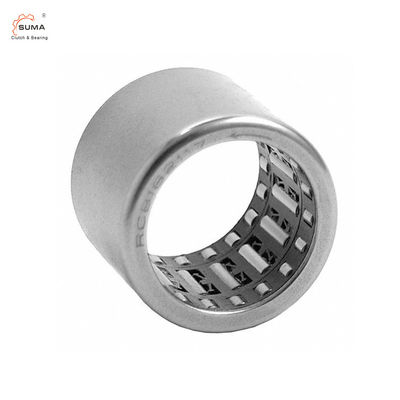

RCB121616 Drawn Cup Needle Roller Bearing One Way 0

Working Principle :

Drawn cup roller clutch and bearing assembly with a nylon clutch cage transmits torque between the shaft and housing in one direction and allows free overrun in the opposite direction. RCB Series has a roller bearing on each end of the clutch to support radial loads, and a drawn cup outer steel shell that provides a small cross-section for use in restricted spaces. The outer shell serves as a raceway for the clutch and bearing rollers, and the clutch has a glass fiber reinforced polyamide nylon cage with a stainless steel pressure spring for each roller. The rollers are made of through-hardened, high-carbon chromium steel for heat tolerance and durability, and the assembly comes packed with lithium soap grease. This drawn cup roller clutch and bearing assembly can be used at temperatures up to 250 degrees F (120 degrees C), and is used in various applications, such as athletic equipment, paper towel dispensers, office machines, and appliances, among others.

Pictures

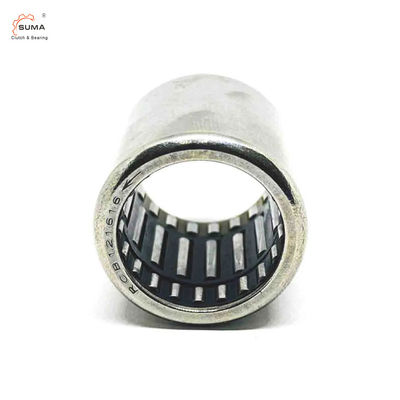

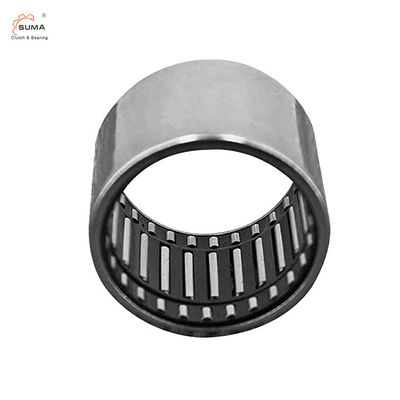

RCB121616 Drawn Cup Needle Roller Bearing One Way 1RCB121616 Drawn Cup Needle Roller Bearing One Way 2
