One Way Clutch Bearing
>
|
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | FSO500 HPI500 |

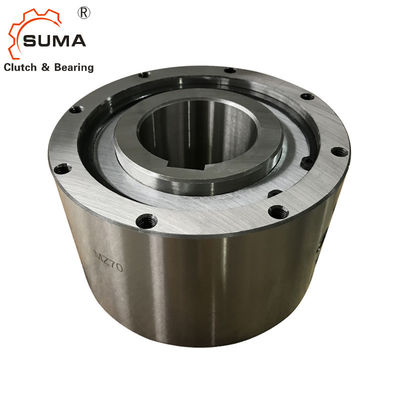

One Way Clutch Roller Bearing Sprag One Way Clutch Bearing One Way Clutch Bearing
1. FREE SAMPLES:contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5. After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.
8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.
Lubrication
Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.
Type HPI is specially designed for high speed indexing applications.
Dimensions and Capacities
| Type | Size |
Torque TKN1 [Nm] |
Overrunning speeds [min-1] |
DIMENSION ( MM ) | Lubricant | Weight | Torque Drag | |||||||||||||||
| FSO FSO-GR HPI |
FSO nmax2) |
FSO-GR nmax3) |
dH7-bxh |
d4) min-max |
A |
B -0.05 |
C | E | F | G | z | J | K | L | f | FSO | FSO..GR | HPI | [kg] | TR [Ncm] | ||
| 300 | 379 | 3000/900 | 3600/900 | 15-5x5 | 12...19 | 63.5 | 76.2 | 60.45 | 1.6 | 28.58 | 66.67 | 4 | M8 | 13 | M6 | 0.8 | 7 | 10 | 14 | 1.6 | 18 | |
| 400 | 407 | 2800/850 | 3600/850 | 18-6x6 | 12...22 | 69.85 | 88.9 | 68.07 | 1.6 | 30 | 73 | 4 | M8 | 13 | M6 | 0.8 | 10 | 20 | 20 | 2.7 | 27 | |
| 500 | 1621 | 2500/800 | 3000/800 | 30-8x7 | 19...33 | 88.9 | 107.95 | 85.73 | 1.6 | 45 | 92 | 4 | M8 | 16 | M6 | 1.5 | 22 | 35 | 35 | 4.8 | 31 | |
| 600 | 3105 | 2200/750 | 2400/750 | 45-14x9 | 24...57 | 95.25 | 136.525 | 92.2 | 1.6 | 63.5 | 120.6 | 6 | M8 | 16 | M6 | 1.6 | 52 | 84 | 84 | 8.6 | 62 | |
| 700 | 6900 | 1600/450 | 2000/450 | 60-18x11 | 48...82 | 127 | 180.975 | 123.85 | 1.6 | 90 | 158.75 | 8* | M10* | 20 | M6 | 1.6 | 168 | 280 | 280 | 19 | 156 | |
NOTES
1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions
Mounting and Coupling
