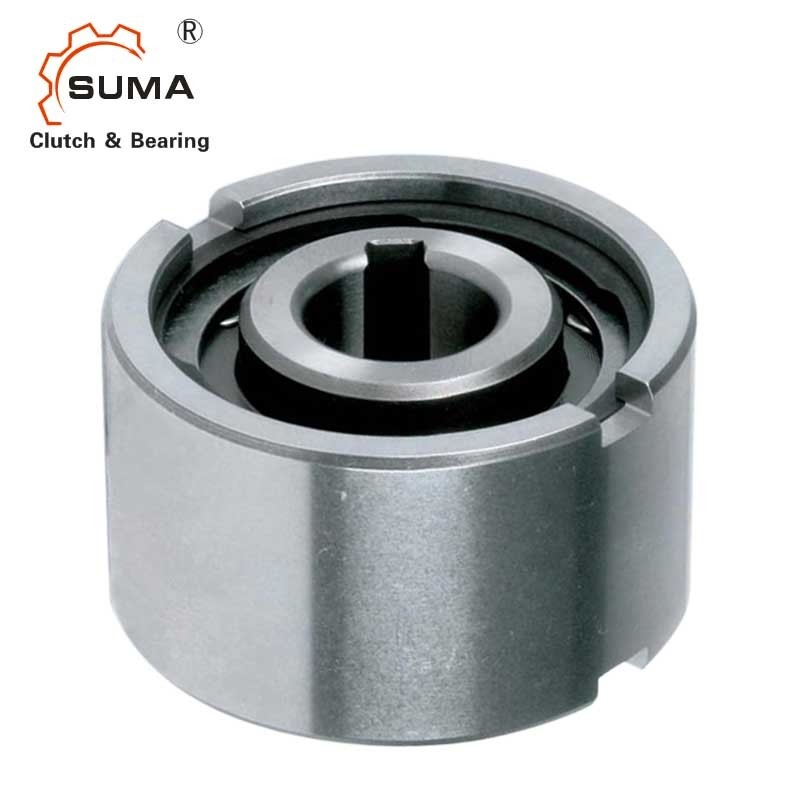

800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing
  • 800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing

800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AA60 GC-D60170
Product Details
Product Name:
Indexing Clutch AA60
Material:
GCr15 Bearing Steel
Torque Capacity:
3500Nm
Rotation Speed:
800RPM
Unit Weight:
9.2Kg
Warranty:
1 Year
Size:
60*170*78mm
OEM:
Accept
High Light:

800RPM Non Contact Clutch Bearing

,

3500Nm Heavy Load Clutch Bearing

,

800RPM Backstop Clutch Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD170-USD190PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

One Way Clutch Bearing Industrial Clutch Heavy Load Non Contact Backstop



Features

1. AAseries Cam Clutch is designed for press fit installation.
2. AA series have a keyway on the inner race. Keyways, except size 25 are manufactured to DIN 6885. 3
3. AA series has a keyway on both the inner and outer race. “-K” means keys shipped together with Cam Clutch.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. Refer to the table for tolerance of the shaft and housing for each series.
6. The arrow on the inner race shows the direction of inner race engaging.
7. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
8. Do not hammer or apply other shock to the clutch.
9. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation of the Clutch.
10. Operating temperature range: –30°C to +100°C (Consult us for the temperature that exceeds this range).



Technical Datas



SPECIFICATION
Model AA60  / GC-D60170
Material GCr15
Inner diameter 60mm
Outer diameter 170mm
Thickness 78mm
Torque capacity 3500Nm
Drag Torque 240Ncm
Inner race overrunning speed 800r/min
Outer race overrunning speed 1100r/min
Weight 0.7kg
Structure Roller type
Application Textile machine, fans, ventilators, printing machine
Package Carton Box, Wooden Box or Customized
Payment terms TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time 2-4 days for the sample, 7 days for big order



Dimensions and Capacities



Size TK1 Overrunning speeds   Weight

Drag

torque

dH7 Nimax2) Namax3) Dh7 D5 D6 D3 Z O L f s (kg) TR
(mm) (Nm ) (min-1) (min-1) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (Ncm)
12 17 3100 6000 47 28 20 38 3 5.5 20 0.5 4.5 0.21 0.7
15 55 2300 5400 55 37 26 45 3 5.5 30 0.8 4.5 0.44 3.5
20 146 2000 3600 68 50 35 58 4 5.5 34 0.8 5.5 0.7 8.4
25 285 1700 2600 90 68 45 7 6 5.5 37 1 6.5 1.3 14
30 500 1500 2100 100 75 50 87 6 6.6 44 1 6.5 2 23
35 720 1300 1950 110 80 55 96 6 6.6 48 1 6.5 2.6 60
40 1030 1200 1700 125 90 60 108 6 9 56 1.5 7.6 3.9 72
45 1125 1050 1500 130 95 65 112 8 9 56 1.5 7.6 4 140
50 2150 950 1300 150 110 75 132 8 9 63 1.5 7.6 6 180
55 2675 850 1200 160 115 82 138 8 11 67 2 7.6 7.2 190
60 3500 800 1100 170 125 90 150 10 11 78 2 7.6 9.2 240
70 5813 650 900 190 140 100 165 10 11 95 2.5 7.6 11.8 320




NOTES

1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Keyway to DIN 6885.1



Mounting and Coupling


Pictures

800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing 2

800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing 3

800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing 4
 800RPM Industrial Heavy Load Non Contact Backstop One Way Clutch Bearing 5



Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
