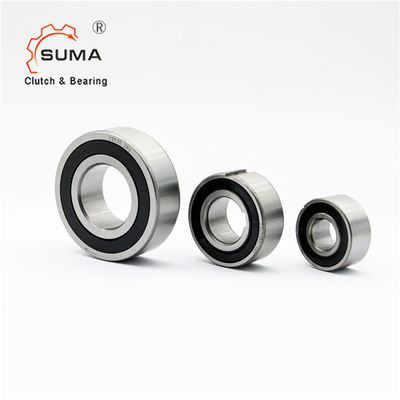

USNU12 Sprag Freewheels One Way Clutch Bearing
  • USNU12 Sprag Freewheels One Way Clutch Bearing

USNU12 Sprag Freewheels One Way Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FPD442Z
Product Details
Product Name:
One Way Clutch Bearing FPD442Z
Material:
GCr15 Bearing Steel
Torque Capacity:
84Nm
Rotation Speed:
2000RPM
Unit Weight:
0.09Kg
Warranty:
1 Year
Size:
15*31*34mm
OEM:
Accept
High Light:

USNU12 Freewheels Clutch Bearing

,

USNU Freewheels Clutch Bearing

,

USNU12 One Way Cfreewheels Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD60-USD70 PER PIECE
Packaging Details
Carton Box
Delivery Time
5-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

USNU12 Sprag Freewheels One Way Clutch Bearing



Features

  • This series freewheels are not self-centering. It is therefore necessary to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race. USNU freewheels have ball bearings with the same dimensions as the 63.. Series.
  • The torque forces are transmitted from the shaft to the inner race by means of a key and from the outer race to the seating by means of front pullers or by means of an interference fit if the seating tolerance is made a K6.
  • Shaft tolerance must be either h6 or j7; the tolerances for the seating must be either h7 or F7. When front pullers are not used, the seating tolerance should be k6.
  • Before being put onto service, the freewheels must be lubricated with suitable lubricants following the instructions given on page 12. Oil lubrication is essential when a high number of rotations in neutral is reached.



Width:34 mm

Operating temperature: max. 100° C

Lubrication: Operative lifetime oil lubrication

Installation tolerances: Shaft h5; hub H6



Dimensions and Capacities




Model d D W Tnom nmax Cdyn. Cstat. Weight Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg]
FPD 427 M 15 31 34 94 2,000 7,679 6,397 0.09 306516
FPD 427 Z 15 31 34 84 2,000 7,679 6,397 0.09 306517
FPD 432 M 20 36 34 133 1,800 8,104 7,241 0.12 306518
FPD 432 Z 20 36 34 121 1,800 8,104 7,241 0.12 306519
FPD 437 M 25 41 34 176 1,700 9,201 8,142 0.15 306520
FPD 437 Z 25 41 34 160 1,700 9,201 8,142 0.15 306521
FPD 442 M 30 46 34 223 1,500 10,247 10,708 0.18 300696
FPD 442 Z 30 46 34 208 1,500 10,247 10,708 0.18 300697
FPD 448 M 35 53 34 286 1,300 11,642 13,440 0.23 306524
FPD 448 Z 35 53 34 262 1,300 11,642 13,440 0.23 306525
FPD 453 M 40 58 34 343 1,200 11,417 13,577 0.26 300702
FPD 453 Z 40 58 34 314 1,200 11,417 13,577 0.26 300700
FPD 463 M 50 68 34 461 1,100 13,070 17,063 0.34 306534
FPD 463 Z 50 68 34 428 1,100 13,070 17,063 0.34 306535
FPD 473 M 60 78 34 588 1000 14128 19896 0.41 306536
FPD 473 Z 60 78 34 543 1000 14128 19896 0.41 306537

Pictures

USNU12 Sprag Freewheels One Way Clutch Bearing 2

USNU12 Sprag Freewheels One Way Clutch Bearing 3
