17Nm NFS30 TFS30 One Way Support Backstop Clutch Bearing Accept OEM
  • 17Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM

17Nm NFS30 TFS30 One Way Support Backstop Clutch Bearing Accept OEM

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AE12
Product Details
Product Name:
Freewheel Clutch AE12
Material:
GCr15 Bearing Steel
Torque Capacity:
17Nm
Rotation Speed:
3100RPM
Unit Weight:
0.11Kg
Warranty:
1 Year
Size:
12*37*20MM
OEM:
Accept
MOQ:
5-
High Light:

NFS30 Backstop Clutch Bearing

,

TFS30 Backstop Clutch Bearing

,

OEM One Way Support Bearing

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
USD12-USD15 PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

One Way Support Backstop Clutch Bearing NFS30 TFS30 Clutch Bearing



Features

  • Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
  • A typical arrangement is to install this type alongside a bearing within the same location tolerances, the inner race is keyed to the shaft.
  • The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
  • If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.



Technical Datas

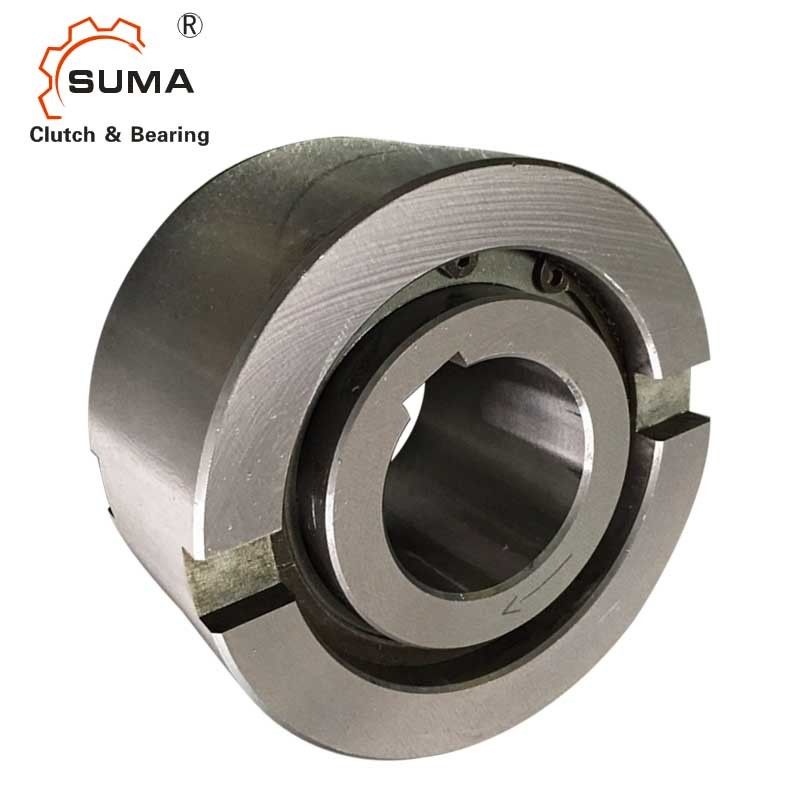

17Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM 0

Item AE12
Material GCr15
Bore dia. 12 mm
Outer dia. 37 mm
Width (B) 20 mm
Torque capacity 17 N.m
Overrunning limiting speed (inner race) 3100 r/min
Overrunning limiting speed (outer race) 6000 r/min
Weight 0.11 kg
Package Carton box or as your requirements

Dimensions and Capacities





Type Size   Overrunning speeds   Weight Drag torque











AE



dH7

(mm)

TKN1

(Nm )

Nimax2)

(min-1)

Namax3)

(min-1)

Dh6

(mm)

D5

(mm)

D6

(mm)

L

(mm)

s

(mm)

f

(mm)

e

(mm)

b

(mm)

t

(mm)



(kg)

TR



(Ncm)

12 17 3100 6000 37 28 20 20 4.5 0.5 0.8 6 3 0.11 0.7
15 55 2300 5400 47 37 26 30 4.5 0.8 1.2 7 3.5 0.30 3.5
20 146 2000 3600 62 50 35 34 5.5 0.8 1.2 8 3.5 0.55 8.4
25 285 1700 2600 80 68 45 37 6.5 1 1.8 9 4 0.98 14
30 500 1500 2100 90 75 50 44 6.2 1 1.8 12 5 1.50 23
35 720 1300 1950 100 80 55 48 3.8 1 1.8 13 6 2.00 60
40 1030 1200 1700 110 90 60 56 3.8 1.5 1.8 15 7 2.80 72
45 1125 1050 1600 120 95 65 56 3.8 1.5 2.6 16 7 3.30 140
50 2150 950 1300 130 110 75 63 5.8 1.5 2.6 17 8 4.20 180
55 2675 850 1200 140 115 82 67 3.8 2 2.6 18 9 5.20 190
60 3500 800 1100 150 125 90 78 7.6 2 2.6 18 9 6.80 240
70 5813 650 900 170 140 100 95 7.6 2.5 2.6 20 9 10.5 320



Mounting and Coupling

17Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM 1

Pictures

17Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM 2

17Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM 317Nm NFS30 TFS30  One Way Support Backstop Clutch Bearing  Accept OEM 4
