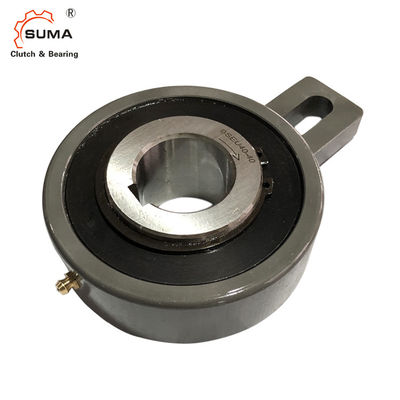

BSEU90-90 One Way Clutch Bearings For Bucket Elevator

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: BSEU90-90
Minimum Order Quantity: 1
Price: USD240-USD285 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch BSEU90-90 Material: GCr15 Bearing Steel
Torque Capacity: 4700Nm Rotation Speed: 250RPM
Unit Weight: 10Kg Size: 85*190*63mm
Warranty: 1 Year OEM: Accept
High Light:

BSEU90-90 One Way Clutch Bearings

,

Bucket Elevator One Way Clutch Bearings

,

250RPM One Way Bearings

         BSEU90-90 One Way Clutch Bearings for Bucket Elevator

Features

  BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch.

  The outer race has special shape which was combined the torque arm, so only stopping the rotation is required.

  You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation.



Dimensions and Capacities

Item BSEU90-90
Material GCr15
Bore dia. 90 mm
Outer dia. 190 mm
Width 63 mm
Torque capacity 4700 N.m
Overrunning limiting speed 250 r/min
Weight 9.265-10.046 kg
Package Carton box, wooden box or as your requirements





Model Bore Size Torque
Capacity
(N·m)
Max.
Overrunning
(r/min)
Inner Race
D D2 L1 L B F b N E J W. MIN W. Max
Dia
( H7)
Keyway
BSEU25-20 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1 0.999 0.948
BSEU25-25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40-20 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5 3.781 3.363
BSEU40-25 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-30 30 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-35 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-40 40 12× 3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70-45 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5 7.607 6.541
BSEU70-50 50 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70-55 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-60 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-65 65 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90-75 75 4,700  250 190 120 63 20 80 165 20 40 15 2 10.046 9.265
BSEU90-80 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 85 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2

Mounting and Coupling
Pictures
 BSEU RSBW AV CK-N.jpg
BSEU90-90 One Way Clutch Bearings For Bucket Elevator 3
BSEU90-90 One Way Clutch Bearings For Bucket Elevator 4
