GEZ Series Self Aligning Spherical Plain Bearing GEZ63ES GEZ63ES-2RS

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: GEZ63ES GEZ63ES-2RS
Minimum Order Quantity: 1 PC
Price: USD5-USD7 PER PIECE
Packaging Details: Roll pack + Carton Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Spherical Plain Bearings Material: Bearing Steel GCr15
Package: Roll Pack + Carton Box Warranty: 6 Months
Maintenance: Every 3 Months OEM: Accept
Delivery Time: 5-7 Days Port: Shanghai Nningbo
High Light:

Self Aligning Spherical Plain Bearing

,

GEZ Series Spherical Plain Bearing

,

GEZ63ES Spherical Plain Shaft Bearing

GEZ Series Self-aligning Spherical Plain Bearing GEZ63ES GEZ63ES-2RS



Features of spherical plain bearing

The structure of the spherical plain bearing is simpler than that of the rolling bearing, which is mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface.

Spherical plain bearings are generally used for low-speed swinging motion (ie angular motion). Since the sliding surface is spherical, it can also perform tilting motion (ie self-aligning motion) within a certain angle range.



Spherical bearings are widely used in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automotive shock absorbers, water conservancy machinery and other industries. The spherical plain bearing is a spherical sliding bearing, and the basic type is composed of inner and outer rings with spherical sliding spherical contact surfaces. Depending on its structure and type, it can bear radial load, axial load, or combined radial and axial loads at the same time.

Dimensions and Capacities

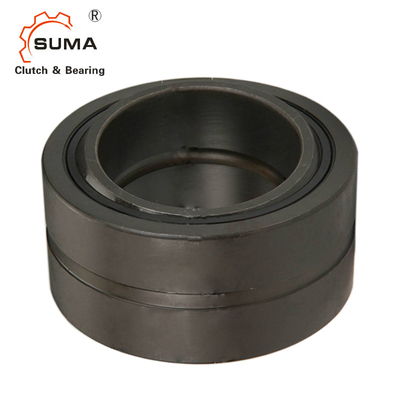

GEZ Series Self Aligning Spherical Plain Bearing GEZ63ES GEZ63ES-2RS 0

  Part number Bore diameter Outer diameter Ball width Race width Static radial loads Dynamic radial loads Weight
  Without seals With seals Inch Inch Inch Inch LBS LBS LBS
1 GEZ12ES - 0.5 0.875 0.437 0.375 9.337 3,156 0.044
2 GEZ15ES - 0.625 1.0625 0.547 0.469 14.732 4864 0.077
3 GEZ19ES GEZ19ES-2RS 0.75 1.25 0.656 0.562 20.927 7089 0.121
4 GEZ22ES GEZ22ES-2RS 0.875 1.4375 0.765 0.656 28.573 9565 0.187
5 GEZ25ES GEZ25ES-2RS 1 1.625 0.875 0.75 37.359 12605 0.265
6 GEZ31ES GEZ31ES-2RS 1.25 2 1.093 0.937 58.507 19468 0.507
7 GEZ34ES GEZ34ES-2RS 1.375 2.1875 1.187 1.031 69.756 23404 0.772
8 GEZ38ES GEZ38ES-2RS 1.5 2.4375 1.312 1.125 84.379 28129 0.926
9 GEZ44ES GEZ44ES-2RS 1.75 2.8125 1.531 1.312 114.752 38255 1.41
10 GEZ50ES GEZ50ES-2RS 2 3.1875 1.75 1.5 150.754 50508 2.05
11 GEZ57ES GEZ57ES-2RS 2.25 3.5625 1.969 1.687 191.251 63002 2.87
12 GEZ63ES GEZ63ES-2RS 2.5 3.9375 2.187 1.875 234.007 77629 4.08
13 GEZ69ES GEZ69ES-2RS 2.75 4.375 2.406 2.062 285.752 95628 5.29
14 GEZ76ES GEZ76ES-2RS 3 4.75 2.625 2.25 337.506 112505 6.84
15 GEZ82ES GEZ82ES-2RS 3.25 5.125 2.844 2.437 396.009 131626 8.38
16 GEZ88ES GEZ88ES-2RS 3.5 5.5 3.062 2.625 459.001 153003 10.58
17 GEZ95ES GEZ95ES-2RS 3.75 5.875 3.281 2.812 531.004 175507 12.79
18 GEZ101ES GEZ101ES-2RS 4 6.25 3.5 3 596.256 202508 15.44
19 GEZ114ES GEZ114ES-2RS 4.5 7 3.937 3.375 765.002 252006 21.61
20 GEZ120ES GEZ120ES-2RS 4.75 7.375 4.156 3.562 843.754 281254 25.36
21 GEZ127ES GEZ127ES-2RS 5 7.75 4.375 3.75 933.755 315009 29.76
22 GEZ152ES GEZ152ES-2RS 6 8.75 4.75 4.125 1170.002 389257 38.59

Pictures

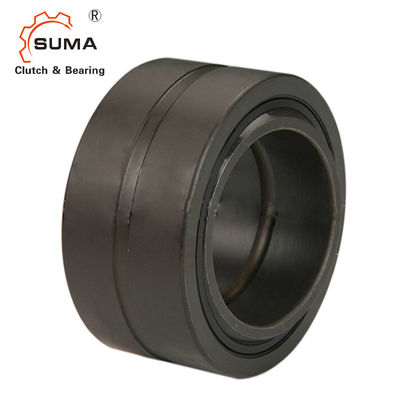

GEZ Series Self Aligning Spherical Plain Bearing GEZ63ES GEZ63ES-2RS 1

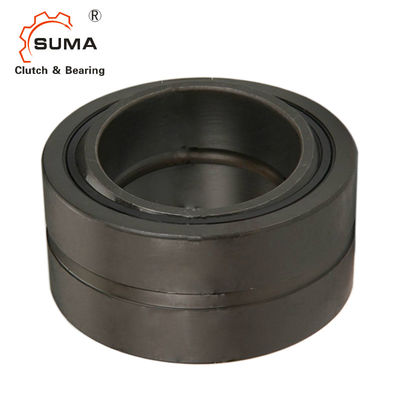

GEZ Series Self Aligning Spherical Plain Bearing GEZ63ES GEZ63ES-2RS 2
