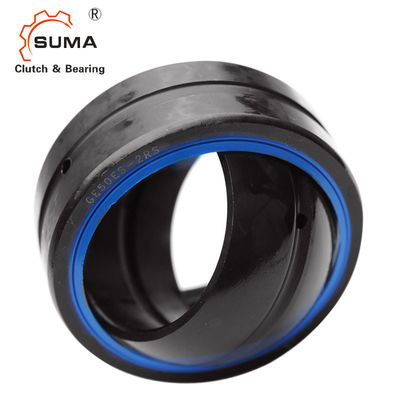

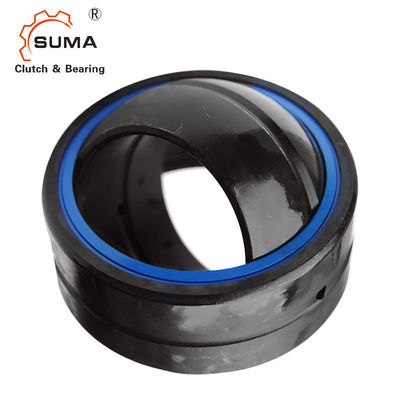

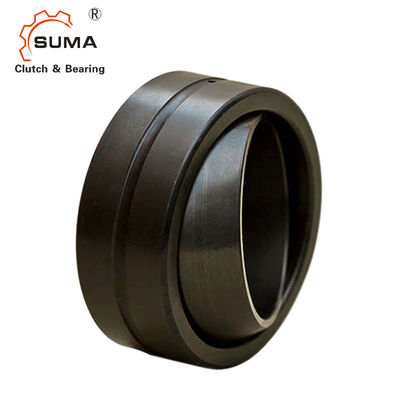

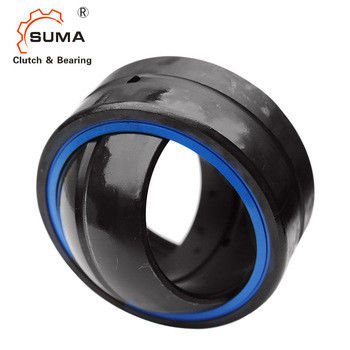

GE20ES 2RS Quenched Radial Spherical Sliding Bearing
Features
The joint bearing is spherical plain bearing, the basic type is composed of a spherical sliding spherical contact surface, within the outer ring.Joint bearing is widely used in engineering hydraulic cylinder, forming machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industry.
Dimensions and Capacities
|
Model
|
Dimensions (mm) |
Load Ratings kN |
Weight LBS
|
| d |
D |
B |
C |
dk |
rs |
ris |
a
α
≈»
|
Dynamic |
Static |
| GE4E |
|
4 |
12 |
5 |
3 |
8 |
0.3 |
0.3 |
16 |
2 |
10 |
.007 |
| GE5E |
|
5 |
14 |
6 |
4 |
10 |
0.3 |
0.3 |
13 |
3.4 |
17 |
.008 |
| GE6E |
|
6 |
14 |
6 |
4 |
10 |
0.3 |
0.3 |
13 |
3.4 |
17 |
.009 |
| GE8E |
|
8 |
16 |
8 |
5 |
13 |
0.3 |
0.3 |
15 |
5.5 |
27 |
.018 |
| GE10E |
|
10 |
19 |
9 |
6 |
16 |
0.3 |
0.3 |
12 |
8.1 |
40 |
.024 |
| GE12E |
|
12 |
22 |
10 |
7 |
18 |
0.3 |
0.3 |
10 |
10 |
53 |
.033 |
| GE15ES |
GE15ES 2RS |
15 |
26 |
12 |
9 |
22 |
0.3 |
0.3 |
8 |
16 |
84 |
.059 |
| GE17ES |
GE17ES 2RS |
17 |
30 |
14 |
10 |
25 |
0.3 |
0.3 |
10 |
21 |
106 |
.090 |
| GE20ES |
GE20ES 2RS |
20 |
35 |
16 |
12 |
29 |
0.3 |
0.3 |
9 |
30 |
146 |
.262 |
| GE25ES |
GE25ES 2RS |
25 |
42 |
20 |
16 |
35.5 |
0.6 |
0.6 |
7 |
48 |
240 |
.262 |
| GE30ES |
GE30ES 2RS |
30 |
47 |
22 |
18 |
40.7 |
0.6 |
0.6 |
6 |
62 |
310 |
.337 |
| GE35ES |
GE35ES 2RS |
35 |
55 |
25 |
20 |
47 |
0.6 |
1 |
6 |
79 |
399 |
.513 |
| GE40ES |
GE40ES 2RS |
40 |
62 |
28 |
22 |
53 |
0.6 |
1 |
7 |
99 |
495 |
.673 |
| GE45ES |
GE45ES 2RS |
45 |
68 |
32 |
25 |
60 |
0.6 |
1 |
7 |
127 |
637 |
.939 |
| GE50ES |
GE50ES 2RS |
50 |
75 |
35 |
28 |
66 |
0.6 |
1 |
6 |
156 |
780 |
1.20 |
| GE55ES |
GE55ES 2RS |
55 |
85 |
40 |
32 |
74 |
0.6 |
1 |
7 |
200 |
1000 |
2.07 |
| GE60ES |
GE60ES 2RS |
60 |
90 |
44 |
36 |
80 |
1 |
1 |
6 |
245 |
1220 |
2.29 |
| GE70ES |
GE70ES 2RS |
70 |
105 |
49 |
40 |
92 |
1 |
1 |
6 |
313 |
1560 |
3.41 |
| GE80ES |
GE80ES 2RS |
80 |
120 |
55 |
45 |
105 |
1 |
1 |
6 |
400 |
2000 |
5.08 |
| GE90ES |
GE90ES 2RS |
90 |
130 |
60 |
50 |
115 |
1 |
1 |
5 |
488 |
2440 |
6.05 |
| GE100ES |
GE100ES 2RS |
100 |
150 |
70 |
55 |
130 |
1 |
1 |
7 |
607 |
3030 |
9.79 |
| GE110ES |
GE110ES 2RS |
110 |
160 |
70 |
55 |
140 |
1 |
1 |
6 |
654 |
3270 |
10.60 |
| GE120ES |
GE120ES 2RS |
120 |
180 |
85 |
70 |
160 |
1 |
1 |
6 |
950 |
4750 |
17.71 |
| GE140ES |
GE140ES 2RS |
140 |
210 |
90 |
70 |
180 |
1 |
1 |
7 |
1070 |
5350 |
24.24 |
| GE160ES |
GE160ES 2RS |
160 |
230 |
105 |
80 |
200 |
1 |
1 |
8 |
1360 |
6800 |
30.82 |
| GE180ES |
GE180ES 2RS |
180 |
260 |
105 |
80 |
225 |
1.1 |
1.1 |
6 |
1530 |
7650 |
41.00 |
| GE200ES |
GE200ES 2RS |
200 |
290 |
130 |
100 |
250 |
1.1 |
1.1 |
7 |
2120 |
10600 |
62.00 |
| GE220ES |
GE220ES 2RS |
220 |
320 |
135 |
100 |
275 |
1.1 |
1.1 |
8 |
2320 |
11600 |
78.00 |
| GE240ES |
GE240ES 2RS |
240 |
340 |
140 |
100 |
300 |
1.1 |
1.1 |
8 |
2550 |
12700 |
88.00 |
| GE260ES |
GE260ES 2RS |
260 |
370 |
150 |
110 |
325 |
1.1 |
1.1 |
7 |
3030 |
15190 |
113.00 |
| GE280ES |
GE280ES 2RS |
280 |
400 |
155 |
120 |
350 |
1.1 |
1.1 |
6 |
3570 |
17850 |
143.00 |
| GE300ES |
GE300ES 2RS |
300 |
430 |
165 |
120 |
375 |
1.1 |
1.1 |
7 |
3800 |
19100 |
172.00 |
GE20ES 2RS Quenched Radial Spherical Sliding Bearing
There are many kinds of Spherical Plain bearings types such as Radial Spherical Plain,Angular Contact Spherical Plain Bearings,Spherical Plain Thrust Bearings,Rod Ends,Ball Joint,Tolerances for Spherical Plain Bearings,Radial internal Clearance of Spherical Plain Bearings.
