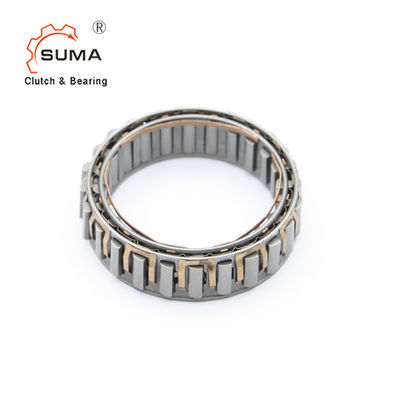

GP Series GP4445A Overrunning Clutch One Way Bearing Sprag

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: GP4445A
Minimum Order Quantity: 1
Price: USD6.5-USD8 PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 10000PCS Per Month
Product Name: One Way Bearing Sprag Material: GCr15 Bearing Steel
Torque Capacity: 363Nm Rotation Speed: 4300RPM
Unit Weight: 0.095Kg Warranty: 1 Year
Size: 44.45*61.11*16mm OEM: Accept
High Light:

Clutch One Way Bearing Sprag

,

GP Series One Way Bearing Sprag

,

Overrunning Clutch One Way Bearing

                GP Series GP4445A Overrunning Clutch One Way Bearing Sprag

Brief Introduction

The GP Series... is a cage with contact elements running as freewheel on races primarily measured in inches.

The smaller dimensions and the high transmission torque offer some interesting technical and cost-saving solutions.

Fitting multiple cages side-by-side increases torques.

It is necessary to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race.

When the sliding race is machined in the seats or on the shafts, the following specifications

1) must be adhered to 60/62 HRC surface hardness

2) 1 mm minimum depth of tempering after grinding

3) ensure the concentric rotation of the races

4) lubrication suitable for the application.

Dimensions and Capacities

GP Series GP4445A Overrunning Clutch One Way Bearing Sprag 0

Size Torque Overrunning speeds
[min-1]
Øa
+ 0,008
- 0,005
Øc
± 0,013
Sprag space emin Ødmin Øbmax Number of clips Number of sprags Weight
TKN1[Nm] nimax2 Namax2 [mm] [mm] [mm] [mm] [mm] [mm] [kg]
GP2222G 63 8600 4300 22.225 38.885 8.33 10 50 15 - 12 0.03
GP2776 119 6900 3400 27.762 44.422 8.33 13.5 58 18 - 14 0.055
GP3034 124 6300 3100 30.34 47 8.33 13.5 62 20 - 14 0.06
GP3175(3C) 159 6000 3000 31.75 48.41 8.33 13.5 63 24 3 16 0.06
GP3809A 275 5000 2500 38.092 54.752 8.33 16 71 29 - 18 0.085
GP4127(3C) 224 4600 2300 41.275 57.935 8.33 13.5 75 32 3 18 0.09
GP4445A 363 4300 2100 44.45 61.11 8.33 16 79 34 - 20 0.095
GP4972(4C) 306 3800 1900 49.721 66.381 8.33 13.5 86 38 4 22 0.1
GP5476A 525 3500 1700 54.765 71.425 8.33 16 92 42 - 24 0.11
GP5476A(4C) 525 3500 1700 54.765 71.425 8.33 16 92 42 4 24 0.13
GP5476B(4C) 769 3500 1700 54.765 71.425 8.33 21 92 42 4 24 0.18
GP5476C(4C) 990 3500 1700 54.765 71.425 8.33 25.4 92 42 4 24 0.2
GP5776A 604 3300 1600 57.76 74.42 8.33 16 98 44 - 26 0.11
GP6334B 806 3000 1500 63.34 80 8.33 21 104 50 - 26 0.175
GP7221(5C) 675 2600 1300 72.217 88.877 8.33 13.5 115 56 5 30 0.14
GP7221B 1279 2600 1300 72.217 88.877 8.33 21 115 56 - 30 0.185
GP7221B(5C) 1279 2600 1300 72.217 88.877 8.33 21 115 56 5 30 0.21
GP7969C(5C) 2038 2400 1200 79.698 96.358 8.33 25.4 124 61 5 34 0.28
GP8334C 2055 2300 1100 83.34 100 8.33 25.4 132 65 - 34 0.27
GP8729A 1250 2200 1100 87.29 103.96 8.33 16 134 67 - 34 0.165
GP10323A(3C)* 1612 1800 900 103.231** 119.891 8.33 16 155 80 3 40 0.205
GP12334C* 4800 1500 750 123.34** 140 8.33 25.4 184 96 - 50 0.4
GP12388C(11C) 4875 1500 750 123.881 142.88 9.5 25.4 196 96 11 44 0.4


NOTES
1) T max = 2 × T KN
» Refer to Selection page 12 to 19
2) Inner race overruns
3) Outer race overruns
*) The inner cage centering flange is on the opposite
side
**) Extension of tolerance to ± 0,013 permissible

Mounting Example


Pictures


 GP Series GP4445A Overrunning Clutch One Way Bearing Sprag 2

GP Series GP4445A Overrunning Clutch One Way Bearing Sprag 3

GP Series GP4445A Overrunning Clutch One Way Bearing Sprag 4

GP Series GP4445A Overrunning Clutch One Way Bearing Sprag 5
