CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch
  • CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch
  • CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch
  • CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch

CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO
Model Number CSK20 CSK20P CSK20PP
Product Details
Material:
Gcr15 Bearing Steel
Torque Capacity:
85Nm
Rotation Speed:
85RPM
Drag Torque:
2Ncm
Unit Weight:
0.14KG
Package:
White Box + Carton Box
Size:
20*47*14MM
Delivery Time:
5-7 Days
MOQ:
5-
High Light:

One Way Keyway Bearing Backstop Clutch

,

CSK20PP Bearing Backstop Clutch

,

85RPM One Way Clutch Bearing

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
USD2.5-USD3 PER PIECE
Packaging Details
White Box + Carton Box + Wooden Pallet
Delivery Time
3-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
20000PCS PER WEEK
Product Description

    CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch



This CSK20 one-way ball bearing with sprag freewheel backstop clutch is made of chrome steel, is double sealed, and has a steel cage. It has a 20 mm inside diameter, a 47 mm outside diameter, and a 14 mm depth.

This single row ball bearing is suitable for applications that support radial loads. This bearing's inner and outer races are made of chrome steel for durability and resistance to deformity under heavy loads.

It has Normal radial internal clearance for applications that do not involve thermal expansion or atypical precision. Rubber seals on both sides of the bearing keep the lubricant in and contaminants out. A steel cage evenly spaces rollers for reduced friction, vibration, and noise. This bearing has a sprag clutch bearing that rotates in only one direction to provide backstop functionality for applications requiring stoppage of rotation without rollback.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.



Dimensions and Capacities


CSK.P PP .jpg

Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
CSK..P d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 9.3 10000 32 14     6.1 2.77 0.05 3
15 17 8400 35 16     7.4 3.42 0.07 4
17 30 7350 40 17     7.9 3.8 0.09 5.6
20 50 6000 47 19     9.4 4.46 0.145 6
25 85 5200 52 20     10.7 5.46 0.175 6
30 138 4200 62 21     11.7 6.45 0.27 7.5
35 175 3600 72 22     12.6 7.28 0.4 8.2
40 325 3000 80 27     15.54 12.25 0.6 10
Mounting and Coupling


PRODUCT PICTURE

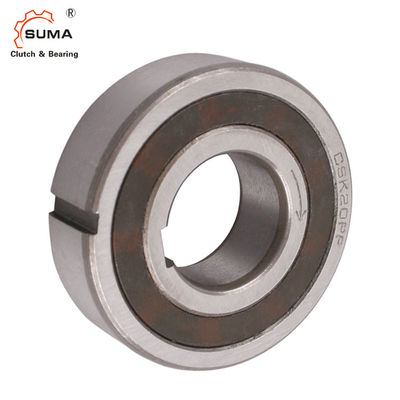

CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch 2

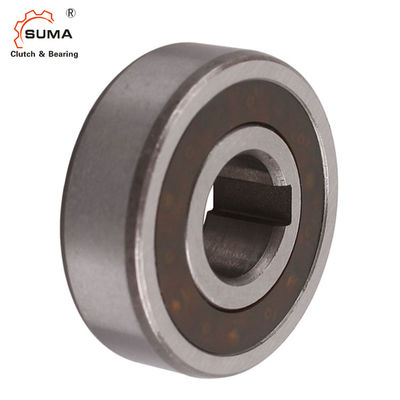

CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch 3CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch 4CSK20 CSK20P CSK20PP 20*47*14MM One Way Kyeway Bearing Backstop Clutch 5
