CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings

CSK30-2RS CSK30P-2RS CSK30PP-2RS 306221MM Sprag Type One Way Clutch Bearings

Brand Name:	SUMA
Model Number:	CSK30-2RS CSK30P-2RS CSK30PP-2RS
MOQ:	5pcs
Price:	USD5-USD7PER PIECE
Delivery Time:	3-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Material:

GCr15 Bearing Steel

Torque Capacity:

138Nm

Rotation Speed:

4200 RPM

Drag Torque:

7.5Ncm

Unit Weight:

0.27KG

Package:

White Box + Carton Box

Delivery Time:

2-3 Days

Packaging Details:

White Box + Carton Box + Wooden Pallet

Supply Ability:

20000PCS PER WEEK

Highlight:

Sprag One Way Clutch Bearings

CSK30-2RS One Way Clutch Bearings

GCr15 Steel Sprag Clutch Bearing

Product Description

**CSK30-2RS CSK30P-2RS CSK30PP-2RS 306221MM Sprag Type One Way Clutch Bearings**

Fearures

Types CSK and CSK...2RS are sprag type freewheels integrated into 62.. series ball bearings (except size 40).

They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

Model Number	CSK30-2RS
Bearing Series	N/A
Bore(in.)	1.180
Keyway in Bore(in.)	None
Keyway on Outer Race	None
Lubrication Type	GREASE
Torque Capacity(lb.ft.)	102
Maximum Inner Race Overrunning Speed(rpm)	4200
Maximum Outer Race Overrunning Speed(rpm)	4200
Ball Bearing Rating Dynamic(lbs.)	2632.5
Ball Bearing Rating Static(lbs.)	1451.25
Roller Bearing Rating Dynamic(lbs.)	N/A
Roller Bearing Rating Static(lbs.)	N/A
Resistance After Run-in (lb.in.)	6.64
Shipping Weight (lbs.)	0.60

Dimensions and Capacities

CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings 0

Type	Size	Bearing series	DIMENSION						Bearing loads		Weight	Drag torque
Type	Size	Bearing series	DIMENSION						dynamic	static		Drag torque
CSK..P	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10

Mounting and Coupling

CSK30-2RS CSK30P-2RS CSK30PP-2RS 30*62*21MM Sprag Type One Way Clutch Bearings 1

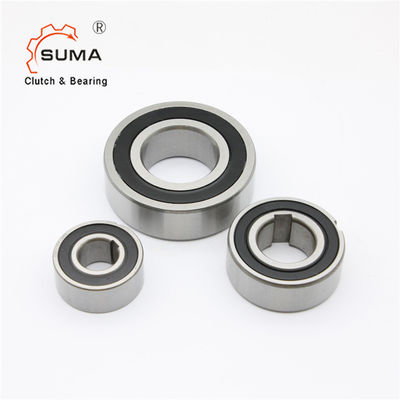

PRODUCT PICTURE

Q: How do you pack the goods?

Small Quantity :

Each in White Box - in 19x18x9CM carton box - 29*28*19CM carton box

Big Quantity : 29*28*19cm carton box + Wooden box /Wooden pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
