AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings
  • AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings
  • AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings
  • AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings

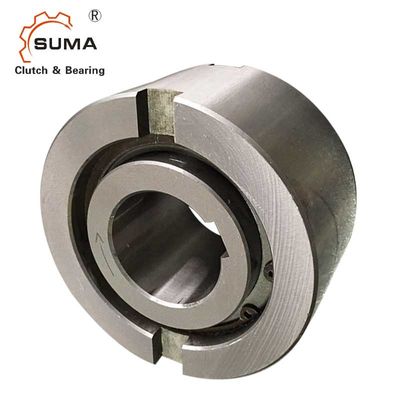

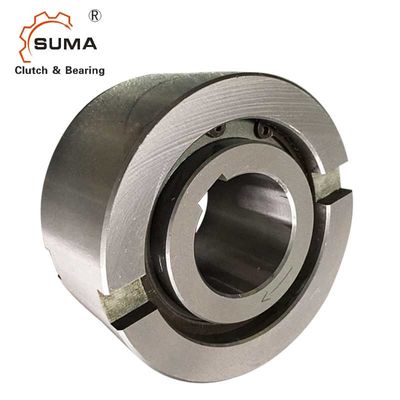

AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AE70
Product Details
Product Name:
Freewheel Clutch AE70
Material:
GCr15 Bearing Steel
Torque Capacity:
5813Nm
Rotation Speed:
650RPM
Unit Weight:
10.5Kg
Warranty:
1 Year
Size:
70*170*95mm
OEM:
Accept
High Light:

AE70 One Way Clutch Bearing

,

5813NM One Way Clutch Bearing

,

AE70 freewheel clutch bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD240-USD280 PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings

Features

  Type AE is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside diameter is a standard ball bearing dimension.



A typical arrangement is to install this type beside a bearing with the same housing diameter tolerance.



The inner race is keyed to the shaft. The outer race has a h6 tolerance and should be fitted in a housing with a K7 tolerance. Additional side notches provide for positive torque transmission.



If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

Technical Datas

Item AE70
Material GCr15
Bore dia. 70 mm
Outer dia. 170 mm
Width (B) 95 mm
Torque capacity 5813 N.m
Overrunning limiting speed (inner race) 650 r/min
Overrunning limiting speed (outer race) 900 r/min
Weight 10.5 kg
Package Carton box or as your requirements

Dimensions and Capacities

AE70 5813NM High Torque One Way Clutch Overrunning Freewheel Bearings 0



Type Size   Overrunning speeds   Weight Drag torque











AE



dH7

(mm)

TKN1

(Nm )

Nimax2)

(min-1)

Namax3)

(min-1)

Dh6

(mm)

D5

(mm)

D6

(mm)

L

(mm)

s

(mm)

f

(mm)

e

(mm)

b

(mm)

t

(mm)



(kg)

TR



(Ncm)

12 17 3100 6000 37 28 20 20 4.5 0.5 0.8 6 3 0.11 0.7
15 55 2300 5400 47 37 26 30 4.5 0.8 1.2 7 3.5 0.30 3.5
20 146 2000 3600 62 50 35 34 5.5 0.8 1.2 8 3.5 0.55 8.4
25 285 1700 2600 80 68 45 37 6.5 1 1.8 9 4 0.98 14
30 500 1500 2100 90 75 50 44 6.2 1 1.8 12 5 1.50 23
35 720 1300 1950 100 80 55 48 3.8 1 1.8 13 6 2.00 60
40 1030 1200 1700 110 90 60 56 3.8 1.5 1.8 15 7 2.80 72
45 1125 1050 1600 120 95 65 56 3.8 1.5 2.6 16 7 3.30 140
50 2150 950 1300 130 110 75 63 5.8 1.5 2.6 17 8 4.20 180
55 2675 850 1200 140 115 82 67 3.8 2 2.6 18 9 5.20 190
60 3500 800 1100 150 125 90 78 7.6 2 2.6 18 9 6.80 240
70 5813 650 900 170 140 100 95 7.6 2.5 2.6 20 9 10.5 320
