| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | FSO500 HPI500 |
| Minimum Order Quantity: | 1 |
| Price: | USD112-USD1135PER PIECE |
| Packaging Details: | Carton Box / Wooden Box |
| Delivery Time: | 10-15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union,Paypal |
| Product Name: | Sprag Type One Way Bearings FSO500 | Torque Capacity: | 1621 Nm |
|---|---|---|---|
| Bore Range: | 19-33mm | Outer Diameter: | 107.95mm |
| Thickness: | 88.9mm | Weight: | 4.8KG |
| Warranty: | 1 Year | Port: | Shanghai , Ningbo |
| High Light: | overrunning One Way Clutch Bearing,HPI500 One Way Clutch Bearing,FSO500 one way needle bearing |
||

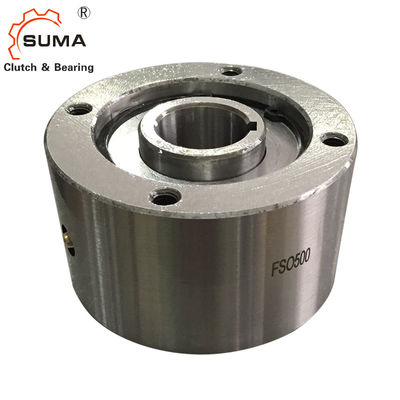

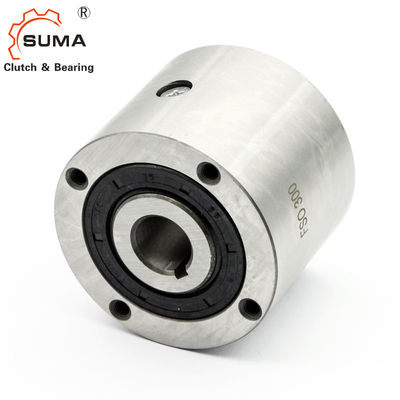

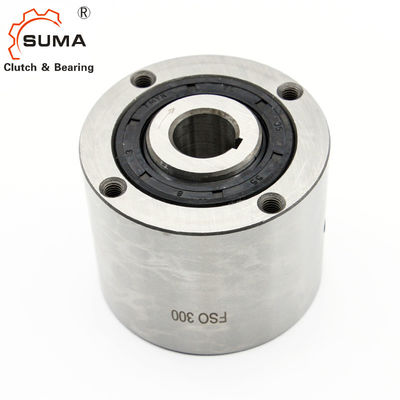

FSO500 HPI500 Overrunning Clutch Sprag Type One Way Bearings
Features
Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Lubrication
Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.
Type HPI is specially designed for high speed indexing applications.
Dimensions and Capacities
| Type | Size |
Torque TKN1 [Nm] |
Overrunning speeds [min-1] |
DIMENSION ( MM ) | Lubricant | Weight | Torque Drag | |||||||||||||||
| FSO FSO-GR HPI |
FSO nmax2) |
FSO-GR nmax3) |
dH7-bxh |
d4) min-max |
A |
B -0.05 |
C | E | F | G | z | J | K | L | f | FSO | FSO..GR | HPI | [kg] | TR [Ncm] | ||
| 300 | 379 | 3000/900 | 3600/900 | 15-5x5 | 12...19 | 63.5 | 76.2 | 60.45 | 1.6 | 28.58 | 66.67 | 4 | M8 | 13 | M6 | 0.8 | 7 | 10 | 14 | 1.6 | 18 | |
| 400 | 407 | 2800/850 | 3600/850 | 18-6x6 | 12...22 | 69.85 | 88.9 | 68.07 | 1.6 | 30 | 73 | 4 | M8 | 13 | M6 | 0.8 | 10 | 20 | 20 | 2.7 | 27 | |
| 500 | 1621 | 2500/800 | 3000/800 | 30-8x7 | 19...33 | 88.9 | 107.95 | 85.73 | 1.6 | 45 | 92 | 4 | M8 | 16 | M6 | 1.5 | 22 | 35 | 35 | 4.8 | 31 | |
| 600 | 3105 | 2200/750 | 2400/750 | 45-14x9 | 24...57 | 95.25 | 136.525 | 92.2 | 1.6 | 63.5 | 120.6 | 6 | M8 | 16 | M6 | 1.6 | 52 | 84 | 84 | 8.6 | 62 | |
| 700 | 6900 | 1600/450 | 2000/450 | 60-18x11 | 48...82 | 127 | 180.975 | 123.85 | 1.6 | 90 | 158.75 | 8* | M10* | 20 | M6 | 1.6 | 168 | 280 | 280 | 19 | 156 | |
NOTES
1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions
