One Way Clutch Bearing
>
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | DC2222g |

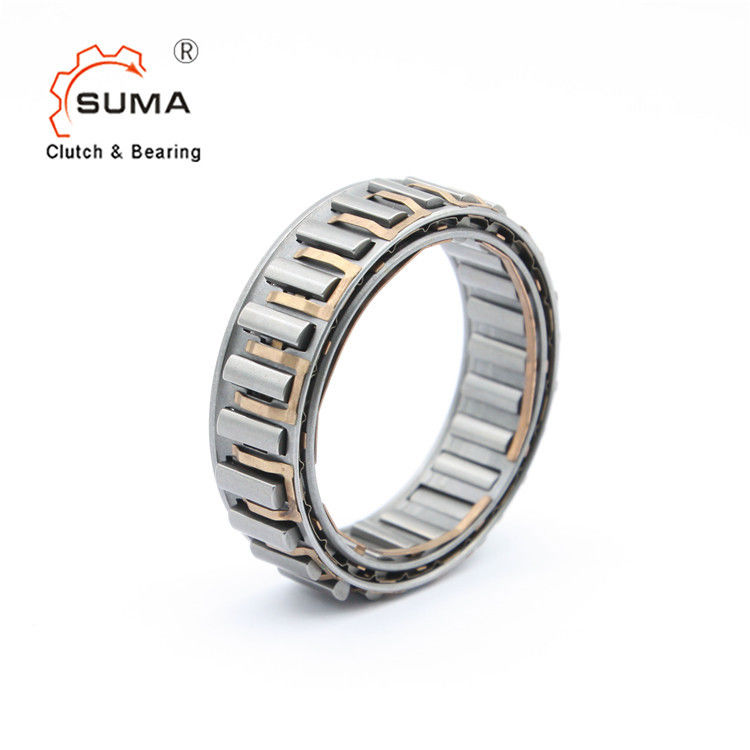

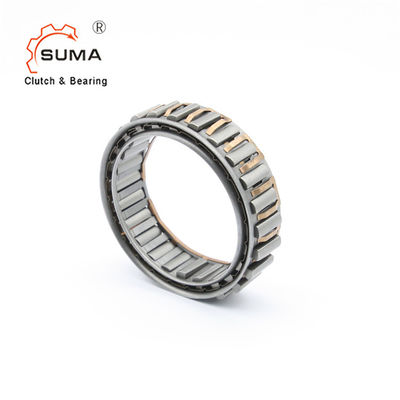

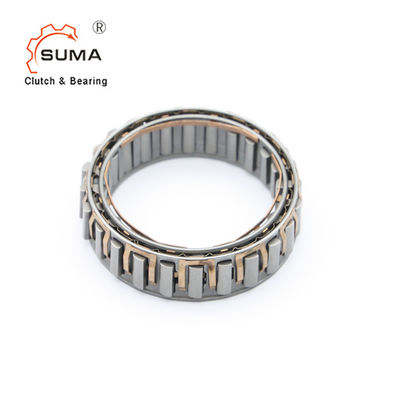

DC2222G One Way Bearings Sprag Freewheel Clutch Backstop
Brief Introduction
Type DC is a sprag type freewheel cage without inner or outer races.
The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA.
Maximum taper between races: 0,007 mm for 25 mm width.
Dimensions and Capacities
|
Size
|
TKN1) |
Overrunning speeds |
Sprag space
|
NO. of clips
|
No. of sprags |
Weight | ||||||
| nimax2) | namax3) | Øa+0.008 -0.005 |
Øc± 0.013 | emin | Ødmin | Øbmax | ||||||
| [Nm] | [min-1] | [min -1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| DC2222G-N | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33±0.075 | 10 | 50 | 15 | – | 12 | 0.03 |
| DC2776-N | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33±0.075 | 13.5 | 58 | 18 | – | 14 | 0.055 |
| DC3034-N | 124 | 6300 | 3100 | 30.34 | 47 | 8.33±0.075 | 13.5 | 62 | 20 | – | 14 | 0.06 |
| DC3175(3C)-N | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33±0.075 | 13.5 | 63 | 21 | 3 | 16 | 0.06 |
| DC3809A-N | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33±0.075 | 16 | 71 | 25 | – | 18 | 0.085 |
| DC4127(3C)-N | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33±0.075 | 13.5 | 75 | 27 | 3 | 18 | 0.09 |
| DC4445A-N | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33±0.1 | 16 | 79 | 29 | – | 20 | 0.095 |
| DC4972(4C)-N | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33±0.1 | 13.5 | 86 | 33 | 4 | 22 | 0.1 |
| DC5476A-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | – | 24 | 0.11 |
| DC5476A(4C)-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | 4 | 24 | 0.13 |
| DC5476B(4C)-N | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 21 | 92 | 36 | 4 | 24 | 0.18 |
| DC5476C(4C)-N | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 25.4 | 92 | 36 | 4 | 24 | 0.2 |
| DC5776A-N | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33±0.1 | 16 | 98 | 38 | – | 26 | 0.11 |
| DC6334B-N | 806 | 3000 | 1500 | 63.34 | 80 | 8.33±0.1 | 21 | 104 | 42 | – | 26 | 0.175 |
| DC7221(5C)-N | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 13.5 | 115 | 48 | 5 | 30 | 0.14 |
| DC7221B-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | – | 30 | 0.185 |
| DC7221B(5C)-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | 5 | 30 | 0.21 |
| DC7969C(5C)-N | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33±0.1 | 25.4 | 124 | 53 | 5 | 34 | 0.28 |
| DC8334C-N | 2055 | 2300 | 1100 | 83.34 | 100.000 | 8.33±0.1 | 25.4 | 132 | 55 | – | 34 | 0.27 |
| DC8729A-N | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33±0.1 | 16 | 134 | 58 | – | 34 | 0.165 |
| DC10323A(5C)*-N | 1612 | 1800 | 900 | 103.231** | 119.891 | 8.33±0.1 | 16 | 155 | 68 | 5 | 40 | 0.205 |
| DC12334C*-N | 4800 | 1500 | 750 | 123.340** | 140.000 | 8.33±0.1 | 25.4 | 184 | 80 | – | 50 | 0.4 |
| DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.50±0.1 | 25.4 | 186 | 80 | 11 | 44 | 0.4 |
NOTES
1) T max = 2 × T KN
» Refer to Selection page 12 to 19
2) Inner race overruns
3) Outer race overruns
*) The inner cage centering flange is on the opposite
side
**) Extension of tolerance to ± 0,013 permissible
Mounting Example
