| Product Name: | One Way Clutch Bearing FP 422M FP 422Z | Material: | GCr15 Bearing Steel |
|---|---|---|---|
| Torque Capacity: | 60Nm | Rotation Speed: | 10100RPM |
| Unit Weight: | 0.07Kg | Warranty: | 1 Year |
| Size: | 10*26*27mm | OEM: | Accept |
| High Light: | Sprag Clutch One Way,Complete Freewheel Clutch One Way,FP Sprag Clutch Bearing |
||

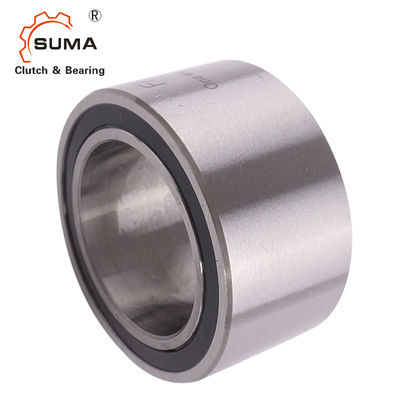

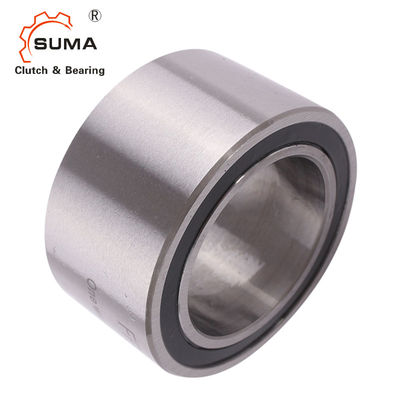

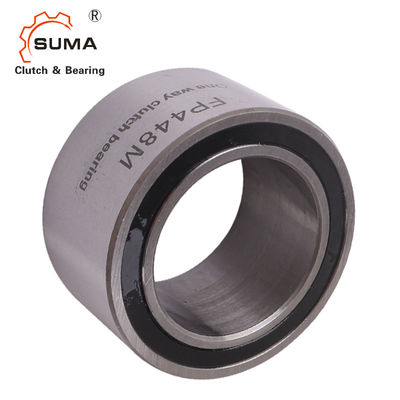

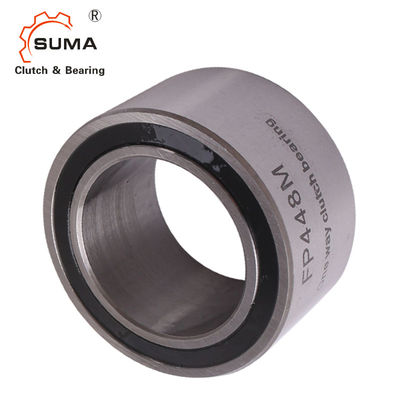

FP Complete Freewheel Sprag Clutch One Way
Features
Width:27 mm
Operating temperature:max. 140°C
Higher temperatures on request
Lubrication
oil or grease lubrication
Delivered with corrosion protection.
Operative grease filling on request.
Installation
Installation tolerances
Shaft h5; hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary. Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls. Installation/removal through inner ring only.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping direction.
Components
| Freewheel clutch | |
| insert element* | FE 400 M (meander spring) |
|
FE 400 Z (tension spring) |
|
| + Raceways | Bearing steel, hardened and ground |
| inner ring | Press fit |
|
outer ring |
Press fit |
| + Ball bearing | Integrated |
|
+ Roller bearing |
Integrated |
| + Lubrication | - |
available with either freewheel clutch insert element
FE 400 M (meander spring) or FE 400 Z (tension spring).
Technical Datas
| Item | FP 422M FP 422Z |
| Material | ST14 |
| Bore dia. | 10 mm |
| Outer dia. | 26 mm |
| Width (B) | 27 mm |
| Torque capacity | 60N.m |
| Overrunning limiting speed (inner race) | 10100 r/min |
| Weight | 0.07 kg |
| Package | Carton box or as your requirements |
Dimensions and Capacities
Drawing legend:
d = inner diameter D = outer diameter W = width T = torque n = rotation speed C = load capacity
| Designation | d | D | W | Tnom | nmax | Cdyn. | Cstat | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | ||
| FP 422 M | 10 | 26 | 27 | 60 | 10,100 | 6,013 | 4,380 | 0.07 | 300655 |
| FP 422 Z | 10 | 26 | 27 | 53 | 10,100 | 6,013 | 4,380 | 0.07 | 300656 |
| FP 427 M | 15 | 31 | 27 | 94 | 7,400 | 7,679 | 6,397 | 0.08 | 300663 |
| FP 427 Z | 15 | 31 | 27 | 84 | 7,400 | 7,679 | 6,397 | 0.08 | 300664 |
| FP 432 M | 20 | 36 | 27 | 133 | 5,900 | 8,104 | 7,241 | 0.10 | 300669 |
| FP 432 Z | 20 | 36 | 27 | 121 | 5,900 | 8,104 | 7,241 | 0.10 | 300670 |
| FP 437 M | 25 | 41 | 27 | 176 | 4,800 | 9,201 | 8,142 | 0.12 | 300673 |
| FP 437 Z | 25 | 41 | 27 | 160 | 4,800 | 9,201 | 8,142 | 0.12 | 300674 |
| FP 442 M | 30 | 46 | 27 | 223 | 4,200 | 10,247 | 10,708 | 0.14 | 300679 |
| FP 442 Z | 30 | 46 | 27 | 208 | 4,200 | 10,247 | 10,708 | 0.14 | 300680 |
| FP 448 M | 35 | 53 | 27 | 286 | 4,300 | 11,642 | 13,440 | 0.19 | 306522 |
| FP 448 Z | 35 | 53 | 27 | 262 | 4,300 | 11,642 | 13,440 | 0.19 | 306523 |
| FP 453 M | 40 | 58 | 27 | 343 | 3,400 | 11,417 | 13,577 | 0.21 | 300683 |
| FP 453 Z | 40 | 58 | 27 | 314 | 3,400 | 11,417 | 13,577 | 0.21 | 300684 |
| FP 463 M | 50 | 68 | 27 | 461 | 2.9 | 13.07 | 17.063 | 0.25 | 300685 |
| FP 463 Z | 50 | 68 | 27 | 428 | 2.9 | 13.07 | 17.063 | 0.25 | 300687 |
| FP 473 M | 60 | 78 | 27 | 588 | 2,500 | 14,128 | 19,896 | 0.3 | 300691 |
| FP 473 Z | 60 | 78 | 27 | 543 | 2,500 | 14,128 | 19,896 | 0.3 | 300693 |
The specified nominal torque is based on sufficient stiffness of mating parts.
Rotation speed n = insert element's inherent speed.
