FND442Z Freewheel One Way Clutch Bearings Manufacturer
  • FND442Z Freewheel One Way Clutch Bearings Manufacturer
  • FND442Z Freewheel One Way Clutch Bearings Manufacturer
  • FND442Z Freewheel One Way Clutch Bearings Manufacturer
  • FND442Z Freewheel One Way Clutch Bearings Manufacturer

FND442Z Freewheel One Way Clutch Bearings Manufacturer

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FND442Z
Product Details
Product Name:
One Way Clutch Bearing
Material:
GCr15 Bearing Steel
Torque Capacity:
208Nm
Rotation Speed:
1500RPM
Unit Weight:
0.28Kg
Warranty:
1 Year
Size:
20*46*34mm
OEM:
Accept
High Light:

Freewheel One Way Roller Clutch

,

34MM One Way Roller Clutch

,

ST14 One Way Clutch Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD80-USD120PER PIECE
Packaging Details
Carton Box
Delivery Time
3-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

             FND442Z Freewheel One Way Clutch Bearings Manufacturer



Features

Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.



Technical Datas

Item FND459Z
Material GCr15
Bore dia. 20 mm
Outer dia. 46 mm
Width (B) 34 mm
Torque capacity 208 N.m
Overrunning limiting speed (inner race) 1500 r/min
Weight 0.28 kg
Package Carton box or as your requirements

Dimensions and Capacities



Designation d D W Tnom nmax Cdyn. Cstat. Weight b t Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg] [mm] [mm]
FND 437 M 15 41 34 176 1,700 8,962 8,661 0.24 5 2.3 300737
FND 437 Z 15 41 34 161 1,700 8,962 8,661 0.24 5 2.3 300738
FND 442 M 20 46 34 223 1,500 10,247 10,708 0.28 6 2.8 300743
FND 442 Z 20 46 34 208 1,500 10,247 10,708 0.28 6 2.8 300744
FND 453 M 25 58 34 343 1,200 11,417 13,577 0.46 8 3.3 300751
FND 453 Z 25 58 34 314 1,200 11,417 13,577 0.46 8 3.3 300752
FND 459 M 30 64 34 411 1,100 12,691 16,320 0.55 8 3.3 300758
FND 459 Z 30 64 34 381 1,100 12,691 16,320 0.55 8 3.3 300760
FND 463 M 35 68 34 462 1,100 13,070 17,063 0.6 10 3.3 306528
FND 463 Z 35 68 34 428 1,100 13,070 17,063 0.6 10 3.3 306529
FND 470 M 40 75 34 550 1,000 14,050 19,840 0.69 12 3.3 300765
FND 470 Z 40 75 34 509 1,000 14,050 19,840 0.69 12 3.3 300766
FND 473 M 45 78 34 588 1,000 14,128 19,896 0.73 14 3.8 306532
FND 473 Z 45 78 34 543 1,000 14,128 19,896 0.73 14 3.8 306533


Pictures

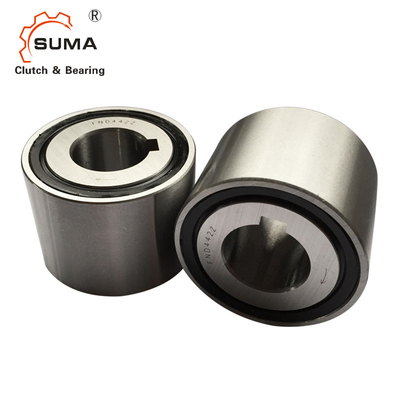

FND442Z Freewheel One Way Clutch Bearings Manufacturer 1

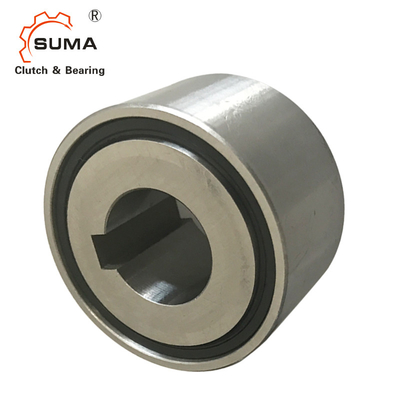

FND442Z Freewheel One Way Clutch Bearings Manufacturer 2
