CK-A Sprag 525RPM GCr15 One Way Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CK-A50110
Minimum Order Quantity: 1
Price: USD30-USD50 PER PIECE
Packaging Details: Carton Box
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: One Way Clutch Bearing CK-A50110 Material: GCr15 Bearing Steel
Torque Capacity: 850Nm Rotation Speed: 525RPM
Warranty: 1 Year Size: 50*110*30mm
Unit Weight: 1.59Kg OEM: Accept
High Light:

525RPM One Way Clutch Bearing

,

Sprag One Way Clutch Bearing

,

Sprag Clutch One Way Bearing

              CK-A Sprag 525RPM GCr15 One Way Clutch Bearing

Features

Type CK-A is a sprag type freewheel non-bearing supported. Nominal dia.-Direction diameter is a standard ball bearings dimension. Bearings are required to support axial and radial loads. Units are delivered grease Iubricated.

The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race and the outer race are keyed to the shaft and hole.

This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making, weaving, chemical, medical, food and so on.

Technical Datas

Item CK-A50110
Material GCr15
Bore dia. 50 mm
Outer dia. 110 mm
Width (B) 28 mm
Torque capacity 850 N.m
Overrunning limiting speed (inner race) 525 r/min
Overrunning limiting speed (outer race) 180 r/min
Weight 1.59 kg
Package Carton box or as your requirements

Dimensions and Capacities



Model





Nominal Torque



Overrunning Limiting Speed (r/min)







Dimension [mm]

Bearing



Weight



Outer race Inner race
[N.m] Inner race Outer race D[h7] B bwxtw d[h7] C bnxtn   [kg]
CK-A1542 54 1750 500 42 23 3x1.8 15 24 3x1.4 6302 0.17
CK-A1747 75 1575 400 47 23 3x1.8 17 24 3x1.4 6304 0.21
CK-A2052 95 1400 400 52 23 3x1.8 20 24 3x1.4 6305 0.25
CK-A2562 145 1260 350 62 23 4x2.5 25 24 4x1.8 6306 0.35
CK-A3072 208 1050 300 72 23 5x3.0 30 24 5x2.3 6307 0.47
CK-A3580 340 815 200 80 28 8x4.0 35 30 6x2.8 6308 0.69
CK-A4090 462 700 200 90 28 8x4.0 40 30 6x2.8 6309 0.87
CK-A45100 783 560 200 100 28 8x4.0 45 30 6x2.8 6310 1.07
CK-A50110 850 525 180 110 28 10x5.0 50 30 8x3.3 6311 1.59
CK-A60130 1050 490 180 130 34 10x5.0 60 36 8x3.3 6312 2.16
CK-A65140 1224 490 180 140 34 10x5.0 65 36 10x3.3 6313 2.49

CK-A

70150

1850 455 150 150 40 10x5.0 70 42 10x3.3 6314 3.36

CK-A

75160

2140 455 150 160 40 12x5.0 75 42 12x3.3 6315 3.81
CK-A80170 2450 420 150 170 40 12x5.0 80 42 12x3.3 6316 4.29
CK-A1250 31.5 1750 400 50 22 3x1.8 12 24 3x1.4   0.24
CK-A1855 50.0 1575 350 55 22 4x2.5 18 24 4x1.8   0.28
CK-A2060 63.0 1600 350 60 22 6x3.5 20 24 6x2.8   0.33

CK-A

2563

100 1260 350 63 24 6x3.5 25 26 6x2.8   0.37
CK-A2563T 140 1260 350 63 30 6x3.5 25 32 8x3.3   0.68
CK-A2870 180 1050 300 70 30 8x4.0 28 32 8x3.3   0.60
CK-A3080T 340 875 200 80 30 8x4.0 30 32 8x3.3   0.75
CK-A3585 400 815 200 85 30 8x4.0 35 32 8x3.3   1.00
CK-A35100 780 875 200 100 32 10x5.0 35 34 10x3.3   1.34
CK-A35140 1000 490 180 140 35 8x4.0 35 35 10x3.5   3.28
CK-A40100 780 560 200 100 34 10x5.0 40 34 10x3.3   1.20
CK-A40110 850 700 180 110 32 10x5.0 40 34 10x3.3   1.19
CK-A50125 1000 490 180 125 36 14x5.5 50 35 14x3.8   2.21
CK-A50130 1050 560 180 130 36 14x5.5 50 38 14x3.8   3.02
CK-A55160 2000 455 150 160 52 16x6.0 55 55 16x4.3   6.96
CK-A58130 1050 490 180 130 36 14x5.5 58 38 14x3.8   2.60
CK-A60180 2000 420 140 180 52 18x6.0 60 52 18x4.4   7.40


Mounting and Coupling

CK-A .jpg

Pictures

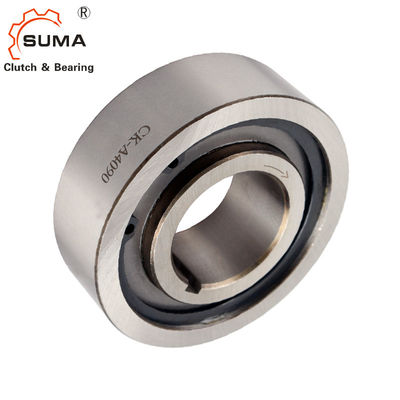

CK-A Sprag 525RPM GCr15 One Way Clutch Bearing 2

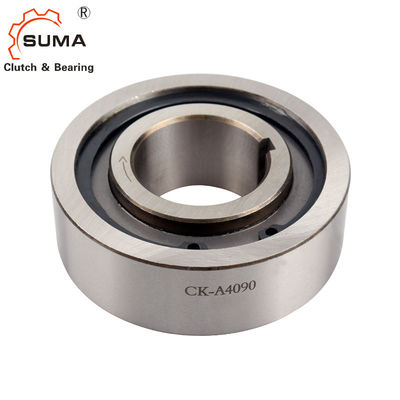

CK-A Sprag 525RPM GCr15 One Way Clutch Bearing 3
