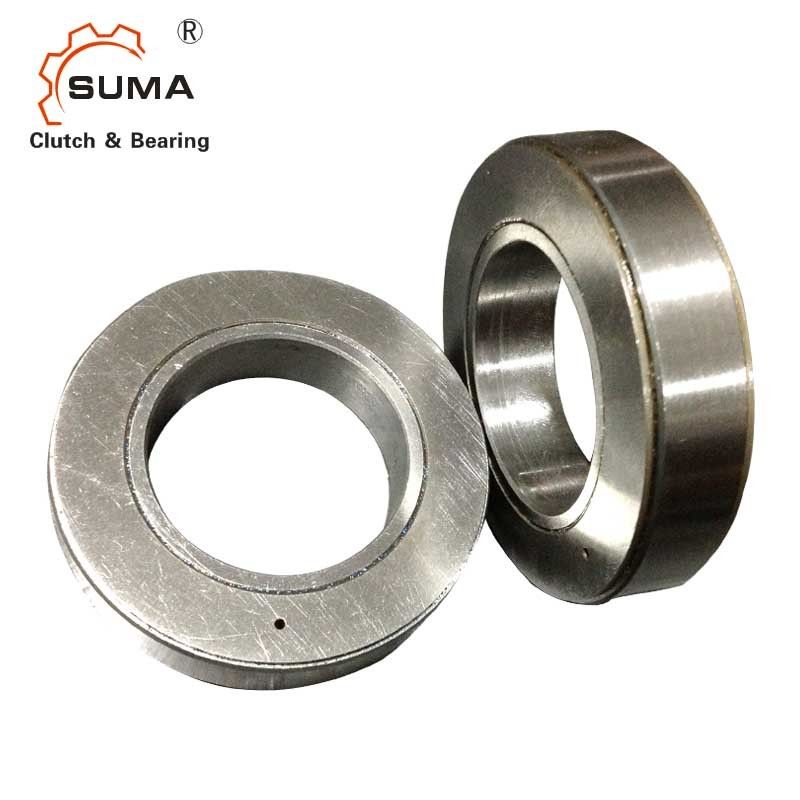

ASK40 Backstop Clutch 40MM One Way Clutch Bearing
  • ASK40 Backstop Clutch 40MM One Way Clutch Bearing
  • ASK40 Backstop Clutch 40MM One Way Clutch Bearing
  • ASK40 Backstop Clutch 40MM One Way Clutch Bearing
  • ASK40 Backstop Clutch 40MM One Way Clutch Bearing

ASK40 Backstop Clutch 40MM One Way Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number ASK40
Product Details
Product Name:
One Way Clutch Bearing ASK40
Material:
GCr15 Bearing Steel
Torque Capacity:
72Nm
Unit Weight:
0.25Kg
Warranty:
1 Year
Size:
40*68*15mm
Rotation Speed:
35RPM
OEM:
Accept
High Light:

ASK60 one way clutch bearing

,

Holdback one way clutch

,

Anti reverse one way bearings

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD80-USD100 PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               ASK40 C4 Clearance Backstop 40MM One Way Clutch Bearing

Features

1. Type ASK is a roller type freewheel bearing supported by two rows of roller bearings.

2. The standard radial clearance is C4

3. Shaft tolerance should be h6 or j6

4. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided

Technical Datas

Model ASK40
Materail GCr15
Inner Diameter 40mm
Outer diameter 68mm
Thickness 15mm
Torque capacity 72Nm
Drag Torque 15Ncm
Max overrunning speed 3500r/min
Application Backstop, Overrunning
Package carton package / Wooden package
Delivery time 5-7 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal

Dimensions and Capacities


Type Size Bearing Series TKN1) nmax Outside Diameter Height Bearing loads Weight Drag torque
Dynamic static
ASK Dp6
(mm)

(Nm)

(min-1)
D
(mm)
L
(mm)
C
(kN)
C0
(kN)
(kg) TR
(Ncm)
40 6008 72 3500 68 15 16 20.6 0.25 15
50 6010 125 2200 80 16 19.6 23.5 0.34 20
60 6012 250 1800 95 18 25.3 35.1 0.5 25

NOTES
1) Tmax = 2 × TKN
» Refer to Selection page 10 to 13
» Refer to mounting and maintenance instructions page 16 to 19

Mounting Example
























































Pictures

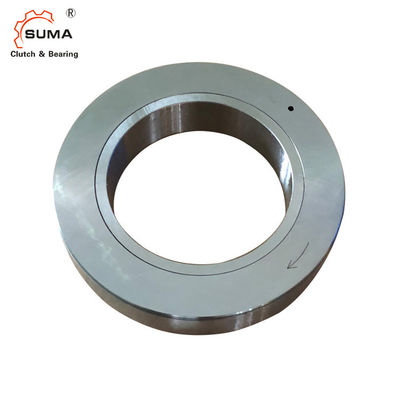

ASK40 Backstop Clutch 40MM One Way Clutch Bearing 2

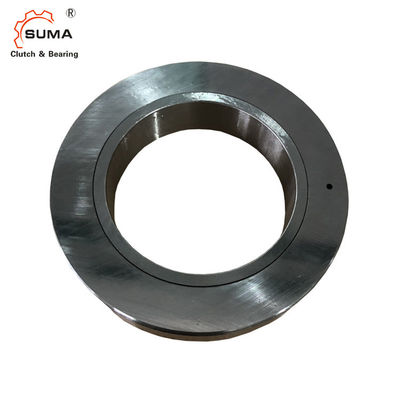

ASK40 Backstop Clutch 40MM One Way Clutch Bearing 3

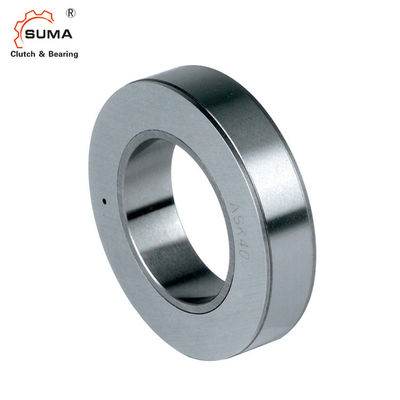

ASK40 Backstop Clutch 40MM One Way Clutch Bearing 4

ASK40 Backstop Clutch 40MM One Way Clutch Bearing 5
 ASK40 Backstop Clutch 40MM One Way Clutch Bearing 6
