NATR10 Yoke Type Track Roller Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: NATR10 NATV10
Minimum Order Quantity: 1
Price: USD9-USD11 PER PIECE
Packaging Details: Roll pack + Carton Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Yoke Type Track Roller Bearing NATR10 NATV10 Material: Bearing Steel GCr15
Size: 10*30*15mm Package: Roll Pack + Carton Box
Warranty: 6 Months OEM: Accept
Weight: 0.064Kg Port: Shanghai Ningbo
High Light:

NATR10 Yoke Type Track Roller Bearing

,

15MM Yoke Type Track Roller Bearing

,

NATV10 Track Roller Bearing

NATR10 Yoke Type Track Roller Bearing



Despite having a smaller cross-section, has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D≤5mm, L / D≥2.5, L is the length of the roller), so radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.

Dimensions and Capacities



Shaft
Dia.
Bearing Designation Boundary Dimensions Weight
Without
Inner Race
With
Inner Race
d D B C d1 rs g
mm mm         min
16 NATR 5 NATR 5 PP 5 16 12 11 12 0.15 14
NATV 5 NATV 5 PP 5 16 12 11 12 0.15 15
19 NATR 6 NATR 6 PP 6 19 12 11 14 0.15 20
NATV 6 NATV 6 PP 6 19 12 11 14 0.15 21
24 NATR 8 NATR 8 PP 8 24 15 14 19 0.3 41
NATV 8 NATV 8 PP 8 24 15 14 19 0.3 42
30 NATR 10 NATR 10 PP 10 30 15 14 23 0.6 64
NATV 10 NATV 10 PP 10 30 15 14 23 0.6 65
32 NATR 12 NATR 12 PP 12 32 15 14 25 0.6 72
NATV 12 NATV 12 PP 12 32 15 14 25 0.6 72
35 NATR 15 NATR 15 PP 15 35 19 18 27 0.6 103
NATV 15 NATV 15 PP 15 35 19 18 27 0.6 105
40 NATR 17 NATR 17 PP 17 40 21 20 32 1 144
NATV 17 NATV 17 PP 17 40 21 20 32 1 152
47 NATR 20 NATR 20 PP 20 47 25 24 37 1 246
NATV 20 NATV 20 PP 20 47 25 24 37 1 254
52 NATR 25 NATR 25 PP 25 52 25 24 42 1 275
NATV 25 NATV 25 PP 25 52 25 24 42 1 285
62 NATR 30 NATR 30 PP 30 62 29 28 51 1 470
NATV 30 NATV 30 PP 30 62 29 28 51 1 481
72 NATR 35 NATR 35 PP 35 72 29 28 58 1.1 635
NATV 35 NATV 35 PP 35 72 29 28 58 1.1 647
80 NATR 40 NATR 40 PP 40 80 32 30 66 1.1 805
NATV 40 NATV 40 PP 40 80 32 30 66 1.1 890
85 NATR 45 NATR 45 PP 45 85 32 30 72 1.1 910
90 NATR 50 NATR 50 PP 50 90 32 30 76 1.1 960
NATV 50 NATV 50 PP 50 90 32 30 76 1.1 990

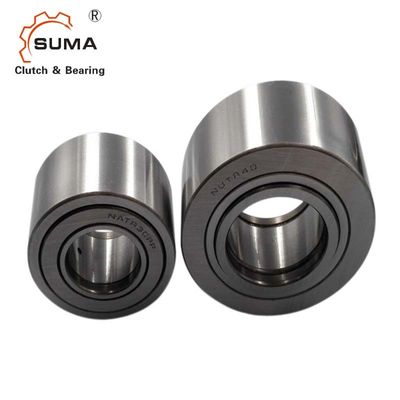

NATR10 Yoke Type Track Roller Bearing 0

Pictures

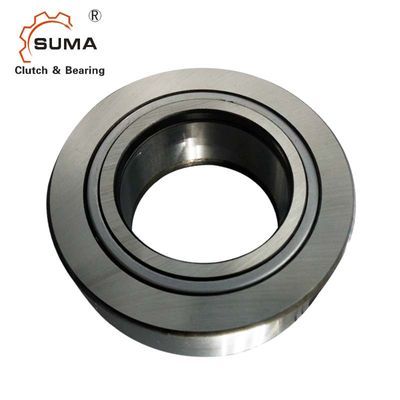

NATR10 Yoke Type Track Roller Bearing 1

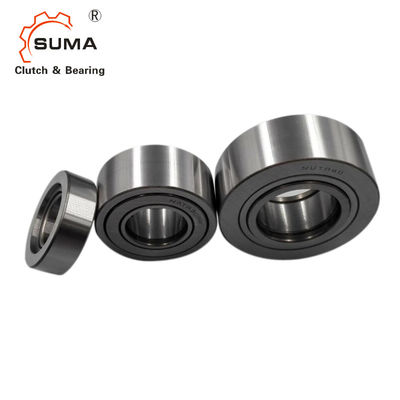

NATR10 Yoke Type Track Roller Bearing 2
