Name: KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: KRV40PP KRV40PPA
Price: 5.50 USD
Availability: InStock

Home Products Stud Type Cam Follower

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	KRV40PP KRV40PPA

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	USD5.5-USD6.5 PER PIECE
Packaging Details:	Carton Box / Wooden Box
Delivery Time:	2-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability:	100000 PCS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Cam Followers And Track Rollers	Material:	Bearing Steel GCr15
Outer Race Surface:	Cylindrical	Package:	Each In Plastic Bag + Carton Box
Warranty:	6 Months	Port:	ShangHai / NingBo
OEM:	Accept	Delivery Time:	3-5 Days
Highlight:	Full Complement Cam Followers , KRV40PP Cam Followers , GCr15 Steel Stud Type Cam Follower

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers and Track Rollers

Features of Full Complement Cam Followers and Track Rollers

KRV design cam followers are similar to the KR design with a designation suffix PPA. The difference is that the KRV design has a full complement of needle rollers. Therefore, KRV design cam followers can accommodate heavier radial loads than KR design cam followers. However, they are not able to operate at the same high speeds and require more frequent relubrication.

Dimensions and Capacities of Full Complement Cam Followers and Track Rollers

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers 0

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers 1

Shaft Dia.	Bearing Designation		BoundaryDimensions ( mm )																M	Basic Load Rating		Speed
mm	Concentric	Eccentric	D	d	C	ra	B	B1	B2 min	G	G1	M	Mn	C1	d2	d1	B3	e	Nm	Dyn.	Sta.	rpm
16	KR16	KRE16	16	6	11	0.15	28	16		M6	8		45)	0.6	12	9	7	0.5	3	3800	3750	22000
	KR16PP	KRE16PP	16	6	11	0.15	28	16		M6	8		45)	0.6	12	9	7	0.5	3	3800	3750	16000
	KRV16	KRVE16	16	6	11	0.15	28	16		M6	8		45)	0.6	12	9	7	0.5	3	6400	8500	8500
	KRV16PP	KRVE16PP	16	6	11	0.15	28	16		M6	8		45)	0.6	12	9	7	0.5	3	6400	8500	8500
19	KR19	KRE19	19	8	11	0.15	32	20		M8x1.25	10		45)	0.6	14	11	9	0.5	8	4250	4600	20000
	KR19PP	KRE19PP	19	8	11	0.15	32	20		M8x1.25	10		45)	0.6	14	11	9	0.5	8	4250	4600	14000
	KRV19	KRVE19	19	8	11	0.15	32	20		M8x1.25	10		45)	0.6	14	11	9	0.5	8	7300	10800	7000
	KRV19PP	KRVE19PP	19	8	11	0.15	32	20		M8x1.25	10		45)	0.6	14	11	9	0.5	8	7300	10800	7000
22	KR22	KRE22	22	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	5700	6500	16000
	KR22PP	KRE22PP	22	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	5700	6500	11000
	KRV22	KRVE22	22	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	8600	12900	6000
	KRV22PP	KRVE22PP	22	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	8600	12900	6000
26	KR26	KRE26	26	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	5700	6500	16000
	KR26PP	KRE26PP	26	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	5700	6500	11000
	KRV26	KRVE26	26	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	8600	12900	6000
	KRV26PP	KRVE26PP	26	10	12	0.3	36	23		M10x1	12		4	0.6	17	13	10	0.5	15	8600	12900	6000
30	KR30	KRE30	30	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	8100	9700	11000
	KR30PP	KRE30PP	30	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	8100	9700	8300
	KRV30	KRVE30	30	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	12200	19000	4500
	KRV30PP	KRVE30PP	30	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	12200	19000	4500
32	KR32	KRE32	32	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	8100	9700	11000
	KR32PP	KRE32PP	32	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	8100	9700	8300
	KRV32	KRVE32	32	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	12200	19000	4500
	KRV32PP	KRVE32PP	32	12	14	0.6	40	25	6	M12x1.5	13	3	6	0.6	23	15	11	0.5	22	12200	19000	4500
35	KR35	KRE35	35	16	18	0.6	52	32.5	8	M16x1.5	17	3	6	0.8	27	20	14	1	58	12900	19000	7000
	KR35PP	KRE35PP	35	16	18	0.6	52	32.5	8	M16x1.5	17	3	6	0.8	27	20	14	1	58	12900	19000	7000
	KRV35	KRVE35	35	16	18	0.6	52	32.5	8	M16x1.5	17	3	6	0.8	27	20	14	1	58	18300	35000	3400
	KRV35PP	KRVE35PP	35	16	18	0.6	52	32.5	8	M16x1.5	17	3	6	0.8	27	20	14	1	58	18300	35000	3400
	NUKR35	NUKRE35	35	16	18	0.6	52	32.5	8	M16x1.5	17	3	6	0.8	21	20	14	1	58	23000	27000	6500
40	KR40	KRE40	40	18	20	1	58	36.5	8	M18x1.5	19	3	6	0.8	32	22	16	1	87	14200	20400	6000
	KR40PP	KRE40PP	40	18	20	1	58	36.5	8	M18x1.5	19	3	6	0.8	32	22	16	1	87	14200	20400	6000
	KRV40	KRVE40	40	18	20	1	58	36.5	8	M18x1.5	19	3	6	0.8	32	22	16	1	87	21000	39500	2900
	KRV40PP	KRVE40PP	40	18	20	1	58	36.5	8	M18x1.5	19	3	6	0.8	32	22	16	1	87	21000	39500	2900
	NUKR40	NUKRE40	40	18	20	1	58	36.5	8	M18x1.5	19	3	6	0.8	23	22	16	1	87	24800	31000	5500
47	KR47	KRE47	47	20	24	1	66	40.5	9	M20x1.5	21	4	8	0.8	37	24	18	1	120	19500	32000	4900
	KR47PP	KRE47PP	47	20	24	1	66	40.5	9	M20x1.5	21	4	8	0.8	37	24	18	1	120	19500	32000	4900
	KRV47	KRVE47	47	20	24	1	66	40.5	9	M20x1.5	21	4	8	0.8	37	24	18	1	120	28000	59000	2600
	KRV47PP	KRVE47PP	47	20	24	1	66	40.5	9	M20x1.5	21	4	8	0.8	37	24	18	1	120	28000	59000	2600
	NUKR47	NUKRE47	47	20	24	1	66	40.5	9	M20x1.5	21	4	8	0.8	37	24	18	1	120	39000	50000	4200
52	KR52	KRE52	52	20	24	1	66	40.5	9	M20x1.5	21	8	4	0.8	37	24	18	1	120	19500	32000	4900
	KR52PP	KRE52PP	52	20	24	1	66	40.5	9	M20x1.5	21	8	4	0.8	37	24	18	1	120	19500	32000	4900
	KRV52	KRVE52	52	20	24	1	66	40.5	9	M20x1.5	21	8	4	0.8	37	24	18	1	120	28000	59000	2600
	KRV52PP	KRVE52PP	52	20	24	1	66	40.5	9	M20x1.5	21	8	4	0.8	37	24	18	1	120	28000	59000	2600
	NUKR52	NUKRE52	52	20	24	1	66	40.5	9	M20x1.5	21	8	4	0.8	31	24	18	1	120	43500	60000	3400
62	KR62	KRE62	62	24	29	1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	30500	53000	3800
	KR62PP	KRE62PP	62	24	29	1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	30500	53000	3800
	KRV62	KRVE62	62	24	29	1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	41500	91000	2200
	KRV62PP	KRVE62PP	62	24	29	1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	41500	91000	2200
	NUKR62	NUKRE62	62	24	29	1	80	49.5	11	M24x1.5	25	8	4	0.8	38	28	22	1	220	59000	79000	2600
72	KR72	KRE72	72	24	29	1.1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	30500	53000	3800
	KR72PP	KRE72PP	72	24	29	1.1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	30500	53000	3800
	KRV72	KRVE72	72	24	29	1.1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	41500	91000	2200
	KRV72PP	KRVE72PP	72	24	29	1.1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	41500	91000	2200
	NUKR72	NUKRE72	72	24	29	1.1	80	49.5	11	M24x1.5	25	8	4	0.8	44	28	22	1	220	65000	93000	2100
80	KRV80	KRE80	80	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
	KR80PP	KRE80PP	80	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
	KRV80	KRVE80	80	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	60000	1420000	1700
	KRV80PP	KRVE80PP	80	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	60000	142000	1700
	NUKR80	NUKRE80	80	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	47	35	29	1.5	450	95000	133000	1800
85	KR85	KRE85	85	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
85	KR85PP	KRE85PP	85	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
90	KR90	KRE90	90	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
	KR90PP	KRE90PP	90	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	45000	85000	2600
	KRV90	KRVE90	90	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	60000	142000	1700
	KRV90PP	KRVE90PP	90	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	53	35	29	1.5	450	60000	142000	1700
		NUKRE90	90	30	35	1.1	100	63	15	M30x1.5	32	8	4	1	47	35	29	1.5	450	95000	133000	1800

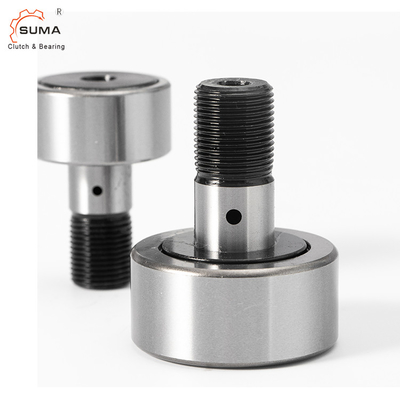

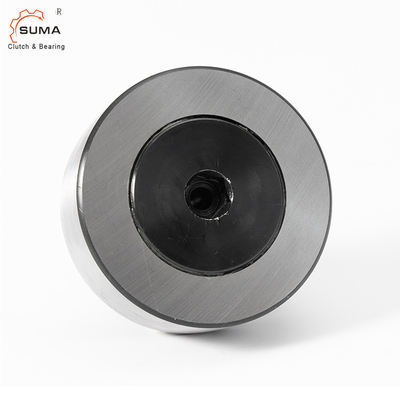

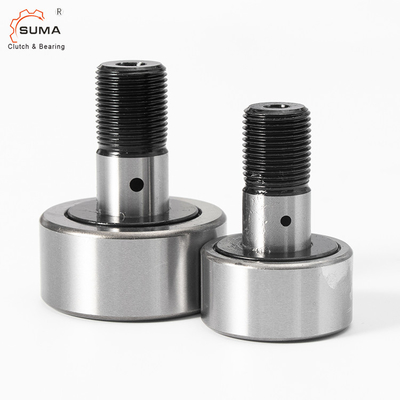

Pictures of Full Complement Cam Followers and Track Rollers

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers 2

Cylincrical Cam Follower Factory View

KRV Series KRV40PP KRV40PPA Full Complement Cam Followers And Track Rollers 3

FAQ of Full Complement Cam Followers and Track Rollers

Q: How do you pack the cam follower ?

Total less than 25 KG : Each in plastic bag + 29*28*19CM carton box
Total Weight over 100KG : Each in plastic bag + 29*28*19CM carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?
