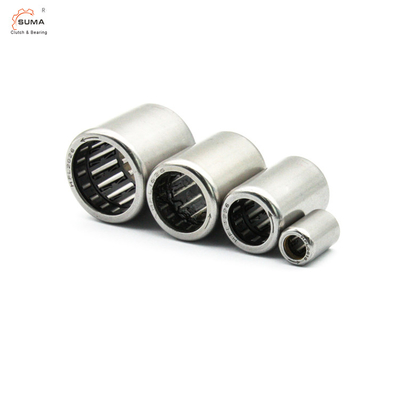

HFL1022 One Way Needle Roller Bearing Manufacturer 101422

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	HFL1022

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD0.3-USD0.5 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	2-3 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	100000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	Drawn Cup Bearing HFL1022	Material:	ST14
Unit Weight:	0.007Kg	Warranty:	6 Months
Torque Capacity:	1Nm	OEM:	Accept
Port:	Shanghai Ningbo
Highlight:	HFL1022 Needle Roller Bearing , 101422 Needle Roller Bearing , HFL1022 One Way Needle Roller Bearing

HFL1022 One Way Needle Roller Bearing Manufacturer 10*14*22

Technical Datas

About HFL0822 Needle Roller Bearing

Dimensions: 8*12*22 mm/Metric
ID (inner diameter)/Bore=8mm
OD (outer diameter)=12mm
Width/Height/thickness=22mm
Item: Needle Roller Bearing One Way Shell Type HFL-0822
Dimensions and Capacities

Drawn Cup Needle Roller Bearing - Roller Clutch with Bearing Assembly

This kind of bearing can only bear radial load. Drawn cup needle roller bearings are needle roller bearings with thin stamped and formed outer rings.

According to different applications, needle roller bearings without inner ring or needle roller and cage components can be selected.

HFL1022 One Way Needle Roller Bearing Manufacturer 10*14*22 0

Shaft Dia.	Clutch Designation		Mass	Borndary Dimensions			Torque	Limiting Speed		Basic Load Ratings


				Fw	D	C		Shaft	Outer Ring	C	Co
								Shaft	Outer Ring	C	Co
								Min-1	Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
3	HFL0308KF	--	3	3	3.6	8	1	--	--	--	--
4	HFL0408KF	--	3.5	4	8	8	1.5	--	--	--	--
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	--	--
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	--	--
	--	HFL061012K	5	6	10	12	--	21000	12000	--	--
8	--	HFL081212K	6	8	12	12	--	20000	12000	--	--
	--	HFL081412K	7	8	14	12	--	19000	12000	--	--
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	--	--
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	--	--
12	--	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	--	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	--	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	--	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	--	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	--	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1
30	--	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
35	--	HFL3530	58	35	42	30	121	3900	3900	13	19.3
