| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | GEEW12ES |
| Minimum Order Quantity: | 1 PC |
| Price: | USD5-USD7 PER PIECE |
| Packaging Details: | Roll pack + Carton Box |
| Delivery Time: | 2-5 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union,Paypal |
| Supply Ability: | 100000 PCS PER MONTH |
| Product Name: | Spherical Plain Bearings GEEW12ES | Material: | Bearing Steel GCr15 |
|---|---|---|---|
| Package: | Roll Pack + Carton Box | Warranty: | 6 Months |
| Maintenance: | Every 3 Months | OEM: | Accept |
| Delivery Time: | 5-7 Days | Port: | Shanghai Ningbo |
| High Light: | GEEW12ES Axial Spherical Plain Bearings,Radial Axial Spherical Plain Bearings,GEEW 12ES Radial Spherical Plain Bearings |
||

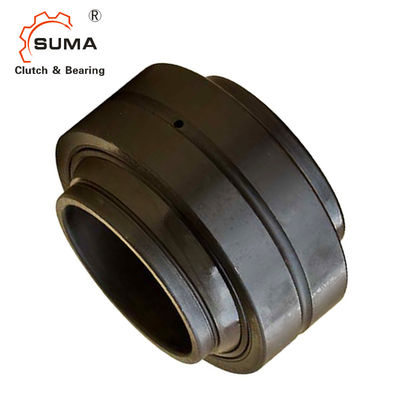

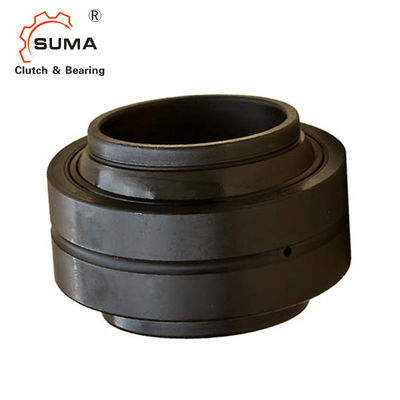

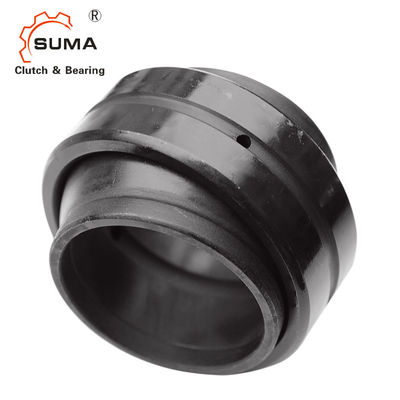

GEEW12ES Radial Axial Spherical Plain Bearings
Features
Structure: oil groove and oil hole in the inner and outer ring.The outer ring has an axial slot.
The sliding surface coated with MoS2 powder lubricant.
Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance,and self aligning . It applies to the machine which requires heavy radial load and axial load in a small-range direction.
As series GE..ES, but with cylindrical extensions at each side, for bearing arrangements where spacer sleeves are normal incorporated at each side of the inner ring.
Dimensions and Capacities
| Bearing Number |
Dimensions (mm) | Load Ratings kN | Weight ≈kg |
|||||||||
| d | D | B | C | d1 | dk | rs | r1s | a | Dynamic | Static | ||
| max | min | min | ≈ | |||||||||
| GEEW12ES | 12 | 22 | 12 | 7 | 15.5 | 18 | 0.3 | 0.3 | 4 | 10 | 53 | 0.022 |
| GEEW15ES | 15 | 26 | 15 | 9 | 18.5 | 22 | 0.3 | 0.3 | 5 | 16 | 84 | 0.031 |
| GEEW16ES | 16 | 28 | 16 | 9 | 20 | 23 | 0.3 | 0.3 | 4 | 17 | 85 | 0.035 |
| GEEW17ES | 17 | 30 | 17 | 10 | 21 | 25 | 0.3 | 0.3 | 7 | 21 | 106 | 0.044 |
| GEEW20ES | 20 | 35 | 20 | 12 | 25 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | 0.071 |
| GEEW25ES | 25 | 42 | 25 | 16 | 30.5 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | 0.131 |
| GEEW30ES | 30 | 47 | 30 | 18 | 34 | 40.7 | 0.6 | 0.6 | 4 | 62 | 310 | 0.168 |
| GEEW32ES | 32 | 52 | 32 | 18 | 37 | 44 | 0.6 | 1 | 4 | 65 | 328 | 0.182 |
| GEEW35ES | 35 | 55 | 35 | 20 | 40 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.253 |
| GEEW40ES | 40 | 62 | 40 | 22 | 46 | 53 | 0.6 | 1 | 4 | 99 | 495 | 0.338 |
| GEEW45ES | 45 | 68 | 45 | 25 | 52 | 60 | 0.6 | 1 | 4 | 127 | 637 | 0.481 |
| GEEW50ES | 50 | 75 | 50 | 28 | 57 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.558 |
| GEEW60ES | 60 | 90 | 60 | 36 | 68 | 80 | 1 | 1 | 4 | 245 | 1220 | 1.15 |
| GEEW63ES | 63 | 95 | 63 | 36 | 71.5 | 83 | 1 | 1 | 4 | 253 | 1260 | 1.25 |
| GEEW70ES | 70 | 105 | 70 | 40 | 78 | 92 | 1 | 1 | 4 | 313 | 1560 | 1.71 |
| GEEW80ES | 80 | 120 | 80 | 45 | 91 | 105 | 1 | 1 | 4 | 400 | 2000 | 2.39 |
| GEEW90ES | 90 | 130 | 90 | 50 | 99 | 115 | 1 | 1 | 4 | 488 | 2440 | 3.21 |
| GEEW100ES | 100 | 150 | 100 | 55 | 113 | 130 | 1 | 1 | 4 | 607 | 3030 | 4.79 |
| GEEW110ES | 110 | 160 | 110 | 55 | 124 | 140 | 1 | 1 | 4 | 654 | 3270 | 5.78 |
| GEEW125ES | 125 | 180 | 125 | 70 | 138 | 160 | 1 | 1 | 4 | 950 | 4750 | 8.49 |
| GEEW160ES | 160 | 230 | 160 | 80 | 177 | 200 | 1 | 1 | 4 | 1360 | 6800 | 16.5 |
| GEEW200ES | 200 | 290 | 200 | 100 | 221 | 250 | 1.1 | 1.1 | 4 | 2120 | 10600 | 32.1 |
| GEEW250ES | 250 | 400 | 250 | 120 | 317 | 350 | 1.1 | 1.1 | 4 | 3750 | 17800 | 99.1 |
| GEEW320ES | 320 | 520 | 320 | 160 | 405 | 450 | 1.1 | 1.1 | 4 | 6200 | 30500 | 225 |
