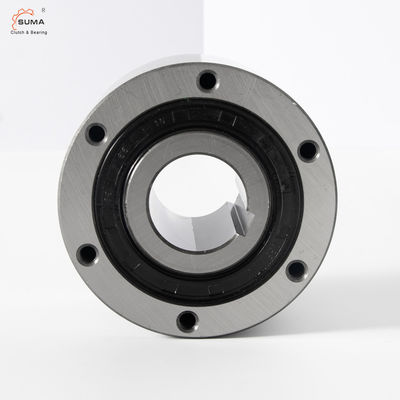

FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated
  • FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated
  • FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated
  • FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated
  • FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated

FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FSO750 HPI750
Product Details
Product Name:
Sprag Clutch Bearing FSO750 HPI750
Torque Capacity:
9660 Nm
Bore Range:
57-87mm
Outer Diameter:
222.25mm
Thickness:
152.4mm
Weight:
38KG
Warranty:
1 Year
Port:
Shanghai , Ningbo
High Light:

HPI750 backstop ball bearing

,

FSO 750 backstop ball bearing

,

oil lubricated Sprag Clutch Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD520-USD650 PER PIECE
Packaging Details
Wooden Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Product Description

FSO750 HPI750 One Way Backstop Clutch Cam Clutch Sprag Bearings


Features

Types FSO, FSO-GR, and HPI 750 to 1027 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.


Lubrication

Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.

Type HPI is specially designed for high speed indexing applications.

Dimensions and Capacities
FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 0

Size

Torque

[Nm]

Overrunning speeds

[min-1]

DIMENSION [mm] Lubricant Weight torque
FSO FS dH7-bxh d4) A B5) C D E F G z J K L P f FSO HPI FS   TR
TKN1) nmax2) nmax3)   min-max   -0.05                             [kg] [Ncm]
750 9660 1800/650 1000/650 65-18x11 57–87 152.4 222.25 149.2 31.7 1.6 107.74 177.8 8* M12 25 1/2-20 49.2 1.6 222 384 207 38 5.08
70-20x12
75-20x12
80-22x14
800 17940 1500/525 850/525 85-22x14 66–112 152.4 254 149.2 31.7 1.6 139.7 227 8 M12 25 1/2-20 49.2 1.6 222 444 251 46 7.12
80-22x14
90-25x14
100-28x16
110-28x16
900 24408 1350/500 700/500 100-28x16 92–138 161.9 304.8 158.7 34.9 1.6 161.92 247.65 10 M16 32 1/2-20 54 1.6 532 473 340 71 8.47
110-28x16
120-32x18
130-32x18
1027 36612 700/375 500/375 130-32x18 125–177 168.3 381 165.1 34.9 3.2 228.6 298.45 12 M16 32 1/2-20 54 3.2 651 946 473 113 13.56
150-36x20
175-45x25



NOTES


1) T max = 2 times;
2) Inner race/outer race
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60; plus 2 extra-holes at 180; Refer to mounting and maintenance instructions

Mounting and Coupling

FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 1

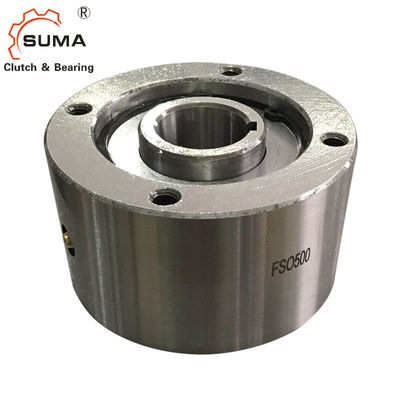

Pictures

FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 2
FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 3

FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 4FSO 750 HPI750 Backstop Ball Sprag Clutch Bearing Oil Lubricated 5
