FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FSO800 HPI800
Minimum Order Quantity: 1
Price: USD700-USD800 PER PIECE
Packaging Details: / Wooden Box
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Product Name: Sprag Clutch Bearing FSO700 HPI700 Torque Capacity: 17940 Nm
Bore Range: 66-112mm Outer Diameter: 254mm
Thickness: 152.4mm Weight: 46KG
Warranty: 1 Year Port: Shanghai , Ningbo
High Light:

HPI800 Backstop Bearing

,

FSO800 Backstop Bearing

,

self contained sprag freewheel

FSO800 HPI800 One Way Sprag Freewheels Cam Clutch Bearing
Features

Types FSO, FSO-GR, and HPI 750 to 1027 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.


Lubrication

Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.

Type HPI is specially designed for high speed indexing applications.

Dimensions and Capacities
FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 0

Size

Torque

[Nm]

Overrunning speeds

[min-1]

DIMENSION [mm] Lubricant Weight torque
FSO FS dH7-bxh d4) A B5) C D E F G z J K L P f FSO HPI FS   TR
TKN1) nmax2) nmax3)   min-max   -0.05                             [kg] [Ncm]
750 9660 1800/650 1000/650 65-18x11 57–87 152.4 222.25 149.2 31.7 1.6 107.74 177.8 8* M12 25 1/2-20 49.2 1.6 222 384 207 38 5.08
70-20x12
75-20x12
80-22x14
800 17940 1500/525 850/525 85-22x14 66–112 152.4 254 149.2 31.7 1.6 139.7 227 8 M12 25 1/2-20 49.2 1.6 222 444 251 46 7.12
80-22x14
90-25x14
100-28x16
110-28x16
900 24408 1350/500 700/500 100-28x16 92–138 161.9 304.8 158.7 34.9 1.6 161.92 247.65 10 M16 32 1/2-20 54 1.6 532 473 340 71 8.47
110-28x16
120-32x18
130-32x18
1027 36612 700/375 500/375 130-32x18 125–177 168.3 381 165.1 34.9 3.2 228.6 298.45 12 M16 32 1/2-20 54 3.2 651 946 473 113 13.56
150-36x20
175-45x25



NOTES

1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions

Mounting and Coupling
FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 1
Pictures

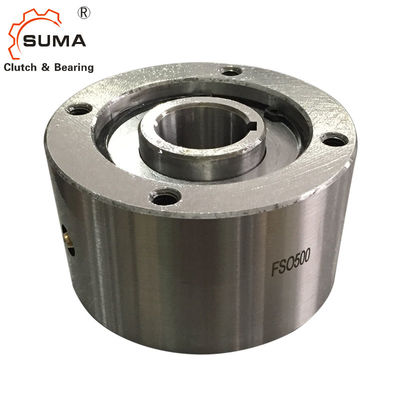

FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 2

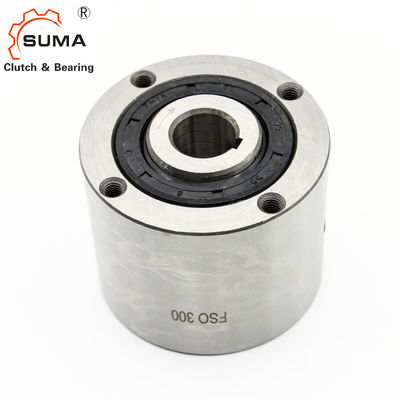

FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 3

FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 4FSO800 HPI800 Sprag Freewheel One Way Freewheel Backstop Bearing 5
