17Nm NFS30 TFS30 One Way Support Backstop Clutch Bearing Accept OEM

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	AE12

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD12-USD15 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	10-15Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	Freewheel Clutch AE12	Material:	GCr15 Bearing Steel
Torque Capacity:	17Nm	Rotation Speed:	3100RPM
Unit Weight:	0.11Kg	Warranty:	1 Year
Size:	123720MM	OEM:	Accept
MOQ:	5-
Highlight:	NFS30 Backstop Clutch Bearing , TFS30 Backstop Clutch Bearing , OEM One Way Support Bearing

One Way Support Backstop Clutch Bearing NFS30 TFS30 Clutch Bearing

Features

Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, the inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.

Technical Datas

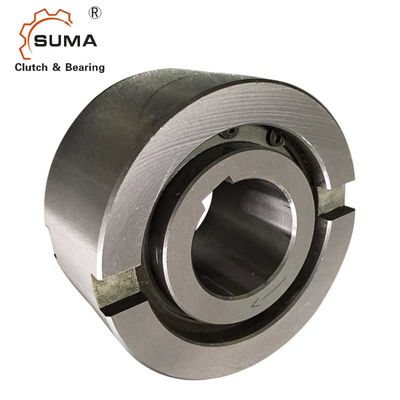

17Nm NFS30 TFS30 One Way Support Backstop Clutch Bearing Accept OEM 0

Item	AE12
Material	GCr15
Bore dia.	12 mm
Outer dia.	37 mm
Width (B)	20 mm
Torque capacity	17 N.m
Overrunning limiting speed (inner race)	3100 r/min
Overrunning limiting speed (outer race)	6000 r/min
Weight	0.11 kg
Package	Carton box or as your requirements

Dimensions and Capacities

Type	Size		Overrunning speeds											Weight	Drag torque
AE	d^H7 (mm)	T_KN¹ (Nm )	N_imax²⁾ (min^-1)	N_amax³⁾ (min^-1)	D_h6 (mm)	D₅ (mm)	D₆ (mm)	L (mm)	s (mm)	f (mm)	e (mm)	b (mm)	t (mm)	(kg)	T_R (Ncm)
	12	17	3100	6000	37	28	20	20	4.5	0.5	0.8	6	3	0.11	0.7
	15	55	2300	5400	47	37	26	30	4.5	0.8	1.2	7	3.5	0.30	3.5
	20	146	2000	3600	62	50	35	34	5.5	0.8	1.2	8	3.5	0.55	8.4
	25	285	1700	2600	80	68	45	37	6.5	1	1.8	9	4	0.98	14
	30	500	1500	2100	90	75	50	44	6.2	1	1.8	12	5	1.50	23
	35	720	1300	1950	100	80	55	48	3.8	1	1.8	13	6	2.00	60
	40	1030	1200	1700	110	90	60	56	3.8	1.5	1.8	15	7	2.80	72
	45	1125	1050	1600	120	95	65	56	3.8	1.5	2.6	16	7	3.30	140
	50	2150	950	1300	130	110	75	63	5.8	1.5	2.6	17	8	4.20	180
	55	2675	850	1200	140	115	82	67	3.8	2	2.6	18	9	5.20	190
	60	3500	800	1100	150	125	90	78	7.6	2	2.6	18	9	6.80	240
	70	5813	650	900	170	140	100	95	7.6	2.5	2.6	20	9	10.5	320
